4km Range Finder Module

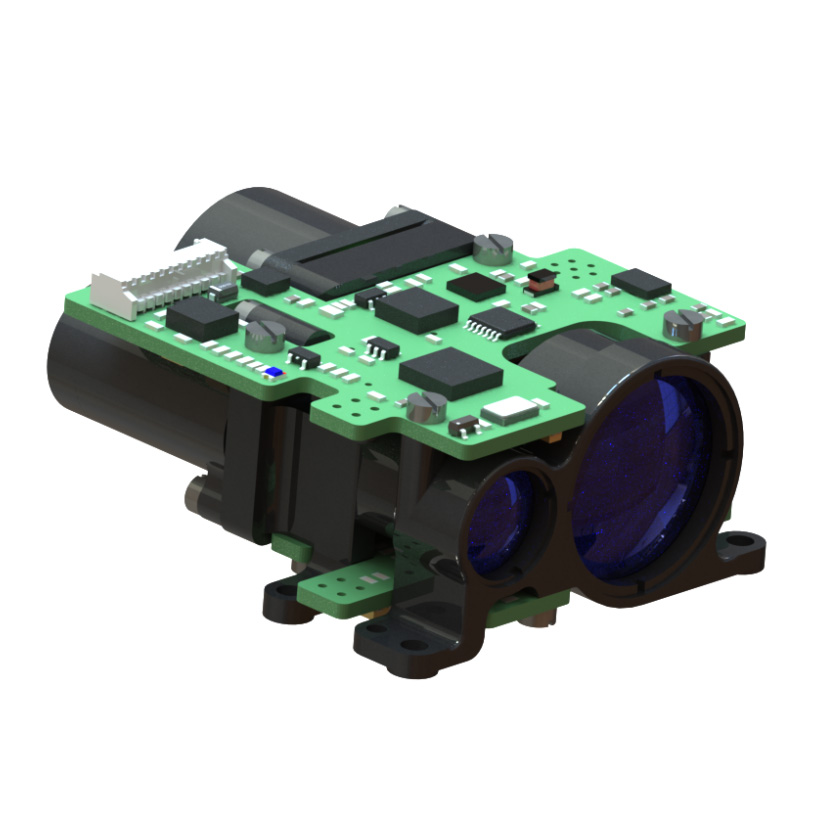

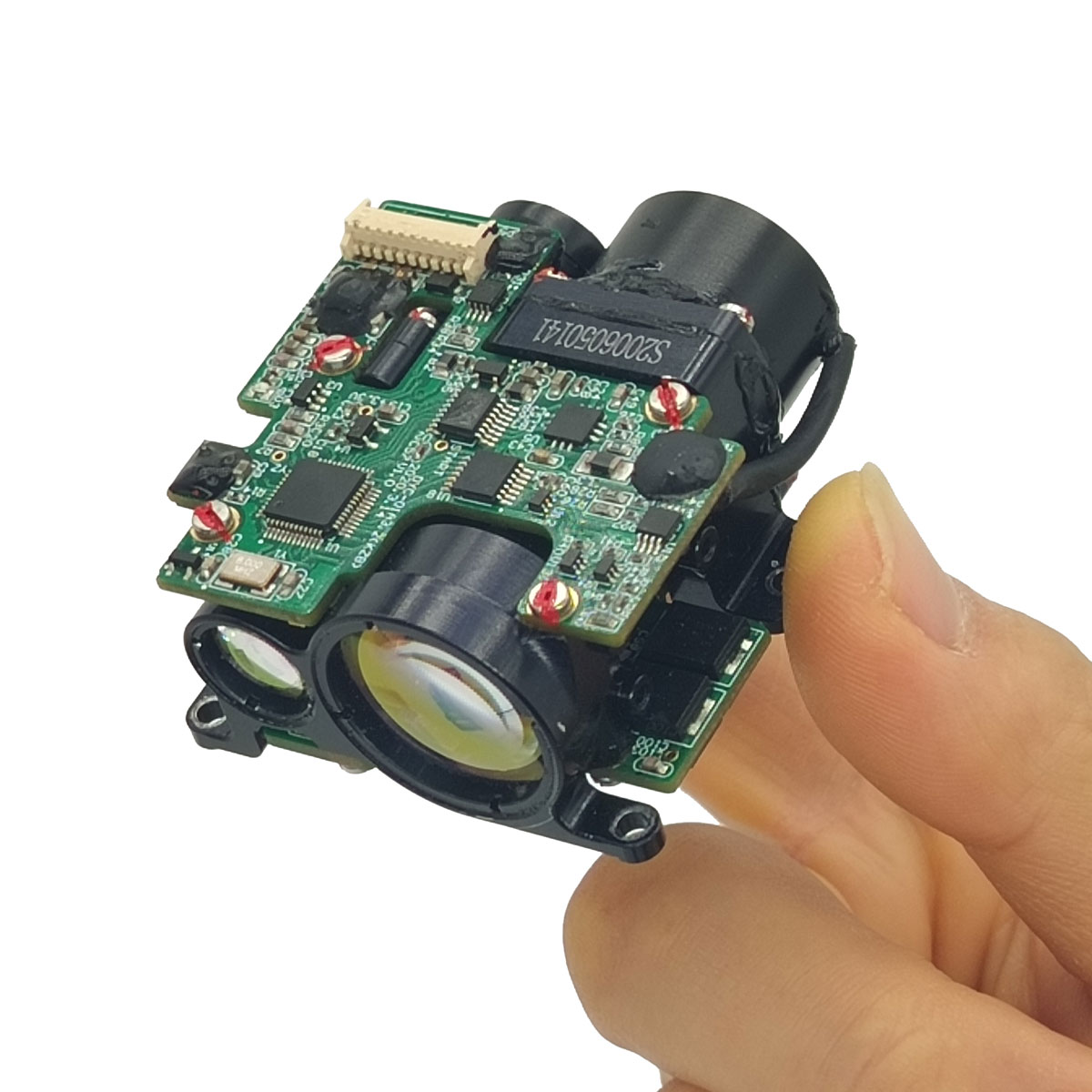

The STA0407X 4km Range Finder Module adopts the 1535nm eye-safe erbium glass laser module independently developed by Jioptics, which has the characteristics of low power consumption, small size, high precision and eye safety.
Send Inquiry
Product Description
Maximum measuring range: 4000m (2.3x2.3m vehicle) 7000 m (White wall)
Ranging accuracy ± 1m
Measurement accuracy ≥ 98%
Weight ≤ 75g
Ranging accuracy ± 1m
Measurement accuracy ≥ 98%
Weight ≤ 75g
4km Range Finder Module features
1. Integrated configuration design and front end face multi-point sealing installation, strong anti-imbalance ability, high durability, long working life, eye safety;
2. Using non-thermal receiving optical design technology, with good optical noise suppression ability, near distance ranging performance and high and low temperature optical performance;
3. The internal interface of the circuit adopts the welding wire direct connection process, which is firm and reliable, which can avoid the short circuit or poor contact caused by the loosening, oxidation and water vapor of the connector, and improve the reliability and life of the product.
2. Using non-thermal receiving optical design technology, with good optical noise suppression ability, near distance ranging performance and high and low temperature optical performance;
3. The internal interface of the circuit adopts the welding wire direct connection process, which is firm and reliable, which can avoid the short circuit or poor contact caused by the loosening, oxidation and water vapor of the connector, and improve the reliability and life of the product.
Product performance index FOR STA-D0407X Laser Rangefinder Module
| Item | Index | |
| Model | STA0407X | |
| Operating wavelength | 1535nm ±10nm | |
| Ranging range | 50-7000m | |
| Ranging capability | 7000m | Large target, visibility ≥ 16km |
| 4000m | Visibility ≥ 8km, target with 0.3 reflectivity for 2.3m × 4.6m vehicles | |
| Communication Interface | RS422 | |
| Humidity | ≤ 60% | |
| Ranging accuracy | ±1m | |
| Accuracy rate | ≥98% | |
| Divergence angle | ≤0.5mrad | |
| Ranging frequency | 1 time,1hz,5hz,(10hz Selectable) | |
| Size | ≤57mm×50mm×30mm | |
| Voltage | 10V～14V | |
| Working power consumption | Average power consumption: ≤ 3W | |
| Standby power consumption | ≤1W | |
| Working temperature | -40℃～+60℃ | |
| Storage temperature | -50℃～+70℃ | |
| Weight | ≤75g | |
Structure installation interface FOR STA-D0407X Laser Rangefinder Module
Electrical Interface Measuring Sensor
The electrical interface requirements are as follows:
Power supply voltage: 10V ~ 14V;
Average power consumption: ≤ 3W;
Standby power consumption: ≤ 1W;
The upper computer end is cross-linked with the rangefinder end through a 10PIN connector with a spacing of 1.25mm. The pin definition of the power supply and communication port at the rangefinder end is shown in the following table (receiving and sending are relative to the rangefinder), and the position of pin 1 of the connector is shown in the following figure.
Power supply voltage: 10V ~ 14V;
Average power consumption: ≤ 3W;
Standby power consumption: ≤ 1W;
The upper computer end is cross-linked with the rangefinder end through a 10PIN connector with a spacing of 1.25mm. The pin definition of the power supply and communication port at the rangefinder end is shown in the following table (receiving and sending are relative to the rangefinder), and the position of pin 1 of the connector is shown in the following figure.
Pin definition of power supply and communication port at rangefinder end
| Pin | Label | Definition of electrical characteristics | Notes |
| P-1 | VIN+ | Positive pole of input power supply | Upper computer power supply |
| P-2 | VIN- | Input power negative pole | |
| P-3 | NC | NC |
|
| P-4 | RS422_TXD+ | Signal output port | Distance measuring machine to upper computer |
| P-5 | RS422_TXD- | ||
| P-6 | RS422_TXD- | Signal input port | Upper computer to distance measuring machine |
| P-7 | RS422_TXD+ | ||
| P-8 | RS422_GND | RS422 ground wire |
|
| P-9 | SWDIO | Data port | Internal debugging use |
| P-10 | SWCLK | Clock port |
Position of pin 1 of connector
