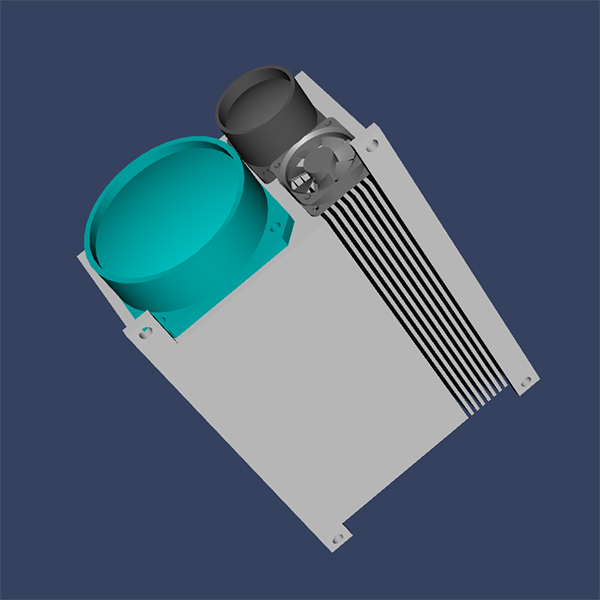

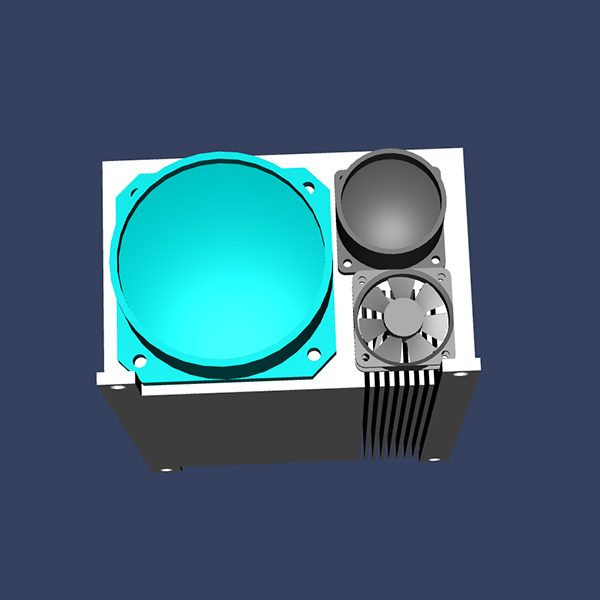

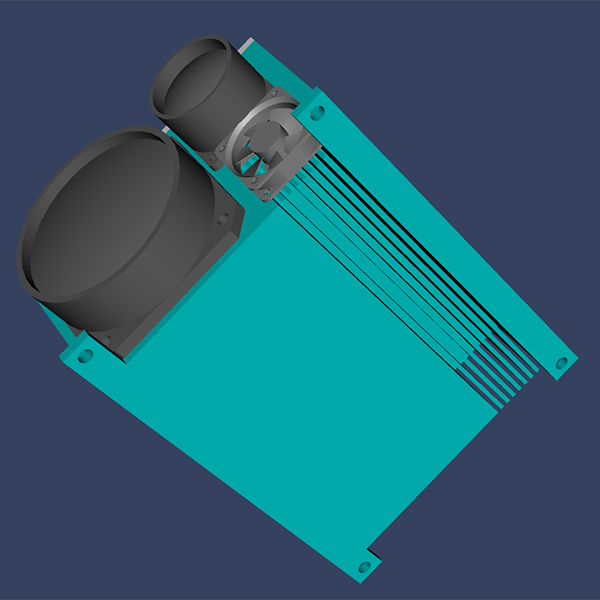

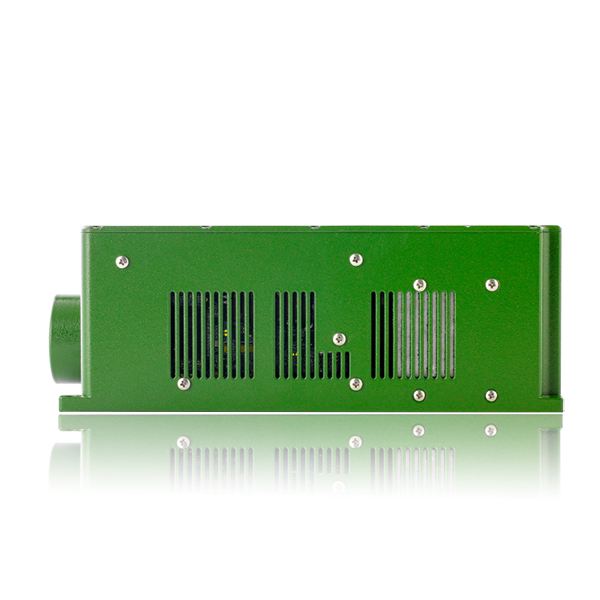

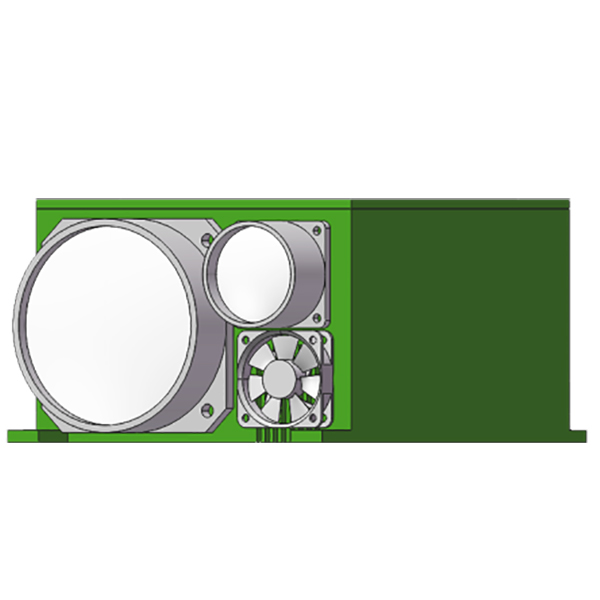

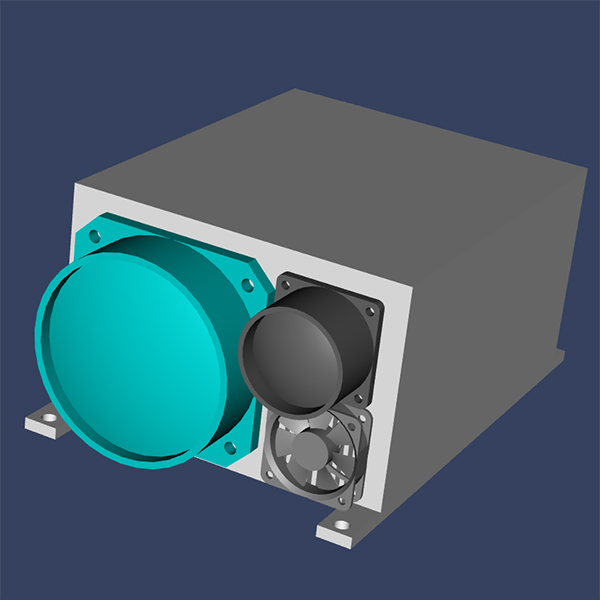

65km Laser Range Finder Module

M3065x long range laser rangefinder module is a military pulse laser rangefinder designed for aircraft, unmanned aerial vehicle, tank, artillery and other application scenarios.It has the advantages of small size, light weight, low power consumption, stable performance, long measuring distance, long service life, eye safety and so on. JIOPTICS® is an important technical equipment to improve the product aiming accuracy.Welcome to buy 65km Laser Range Finder Module from us.

Ranging range: Visibility under the conditions of not less than 40km, for vehicles (2.3mX2.3m target), 0.3 diffuse reflectance, ranging distance ≥30000m;Visibility under the conditions of not less than 40km, large target, ranging distance ≥65000m;

Model:M3065X

Send Inquiry    PDF DownLoad

Product Description


JIOPTICS® 65km Laser Range Finder Module Parameters

Parameters
Specification
Note.
Wavelength
1570±5nm

Ranging capability
200m~65km

Ranging ability
≥30km(2.3m×2.3m, 0.3 reflectivity vehicle, visibility≥35km)
Humidity≤80%
≥65km(for large targets, visibility≥40km)
Ranging accuracy
±5m

Ranging repetition rate
1~10hz(adjustable)

Accuracy
≥98%

Divergence angle
≤0.6mrad

Receiving aperture
80mm

Communication interface
RS422

Supply voltage
DC18~32V

Operating power
≤50W(@1hz)
Tested under room temperature
Stand-by power
≤20W
Tested under room temperature
Dimension
≤225mm×150mm×100mm

Weight
≤3.8kg

Temperature
-40℃~65℃

Heat-dissipating
Air-cooling


Communication interface

Line NO.
Definition
Note.
1
Direct current
+24V Direct current
2
3
4
5
GND(direct current)
+24V GND
6
7
8
9
Serial port T+(from a laser rangefinder to upper computer+)
RS422
10
Serial port R-(from upper computer to a laser rangefinder-)
11
Serial port T-(from a laser rangefinder to upper computer-)
12
Serial port R+(from upper computer to a laser rangefinder+)
13
RS422 GND(connection is not necessarily required)
14
SYN+
RS422 differential external trigger, width>10us
15
SYN-

Dimension



Calculation of ranging ability

(1)Targets and condition requirements
Visibility≥40km
Humidity≤80%
For vehicles with 2.3m×2.3m dimension
Reflectivity=0.3
Ranging ability≥30km
(2)Analysis and verification
The main parameters that affect ranging ability are peak power of lasers, divergence angle, transmitting and receiving transmittance, wavelength of laser, etc.
For this laser rangefinder, it takes≥5MW peak power of lasers, 0.6mrad divergence angle, 1570nm wavelength, transmitting transmittance≥90%, receiving transmittance≥80% and 80mm receiving aperture.
It is a laser rangefinder for small targets, ranging ability can be calculated by the following formula. Ranging formula for small targets:



: Detectable optical power
: Transmitting power of laser rangefinder(5MW)
: Transmitting transmittance(0.9)
: Receiving transmittance(0.8)
: Optical receiving area(80mm receiving aperture)
: Effective reflection area of targets(5.29㎡)
: Target reflectivity(0.3)
: Atmosphere attenuation coefficient(0.02)
: Visibility(according to testing condition)
: Distance to targets
As long as detectable optical power that reflected by targets is larger than minimum detectable power, a laser rangefinder is able to range distance to a target. For a laser rangefinder with 1570nm wavelength, generally, the minimum detectable power(M.D.S) of APD is 5×10-9W.
Under 40km visibility with 32km distance to targets, the minimum detectable power is lower than M.D.S of APD(5×10-9W), therefore, under a condition with 40km visibility, a laser rangefinder can range distance for (2.3m×2.3m) targets up to 31~32km(might be close or less than 32km).
