The Application and Working Principle of Laser Warning Systems: The "Laser Radar Eye" on the Battlefield

In modern warfare and specific industrial and scientific research fields, laser technology is like a double-edged sword. It is a powerful tool for precise guidance and efficient communication, but it can also be a source of threat that exposes positions and invites strikes. The Laser Warning System (LWS) has emerged as a crucial "sentinel", constantly vigilant against the invisible laser threat.

I. Laser Warning System: Core Working Principle

The core mission of the laser warning system is to detect, identify the direction, wavelength, repetition frequency and other characteristics of the incoming laser, and issue an alarm to gain precious time for taking countermeasures or evasive actions. Its working principle can be summarized in the following key steps:

1. Photoelectric Detection:

The core components of the system are high-sensitivity photoelectric detectors (such as photodiodes, CCD/CMOS focal plane arrays) distributed at key positions on the surface of equipment (such as tanks, aircraft, ships).

 When laser beams in the environment (whether for ranging, designating, guiding or blinding) strike these detectors, the photon energy is converted into weak electrical signals.

2. Signal Amplification and Processing:

The weak electrical signals generated are initially amplified by a preamplifier.

Subsequently, a complex signal processing circuit (typically based on FPGA or dedicated processors) further amplifies the signal, filters out noise such as background light and electromagnetic interference, and extracts key feature parameters.

3. Feature Parameter Extraction and Recognition:

Processing circuit analysis signals of:

Wavelength: Determine the laser band (such as 1064nm Nd:YAG laser, 1550nm eye-safe laser, 10.6um CO2 laser, etc.) through an internal spectral recognition device (such as a grating, prism or narrowband filter array). This is crucial for identifying the type of laser (ranging device? Target indicator?).

Incident direction: Precisely calculate the azimuth and elevation angles of the laser source by using the time difference, intensity difference of signals from multiple spatially distributed detectors or pixel position information from an imaging detector, through angle calculation algorithms.

Pulse characteristics: Analyze the pulse width, repetition frequency, and coding mode (such as PPM coding used for guidance) of the laser. This helps distinguish between lasers of different functions (such as a simple rangefinder vs. a precision laser guidance illuminator).

Intensity: Assess the severity of the threat and approximate distance.

4. Threat Assessment and Alarm Output:

The central processing unit compares the extracted feature parameters with the built-in threat database and conducts pattern recognition.

The system comprehensively determines the type of incoming laser (such as laser ranging, target designation, beam-riding guidance, laser-guided missile seeker, laser blinding weapon), threat level, and direction of approach.

Immediate intuitive and clear alarm information is provided to the operator through audio-visual alarm devices (such as sound and light alarms in the cockpit, warning icons and direction indicators on the helmet-mounted display). At the same time, the information can be distributed via data link.

5. (Optional) Countermeasure System Integration:

 In advanced integrated defense systems, LWS often serves as a sensor node, and its detection information can be transmitted in real time to active countermeasure systems:

Smoke/Aerosol Distraction Launchers: Quickly form a smoke screen in the direction of incoming threats, scattering or absorbing laser beams to disrupt guidance or targeting.

Laser Blinding Countermeasure System: Emit strong lasers to interfere or damage the optical sensors of enemy laser rangefinders or designators.

 Maneuvering Evasion Instructions: Provide evasion suggestions to drivers or autonomous driving systems.

II. Key Technologies and Performance Indicators of Laser Warning Systems

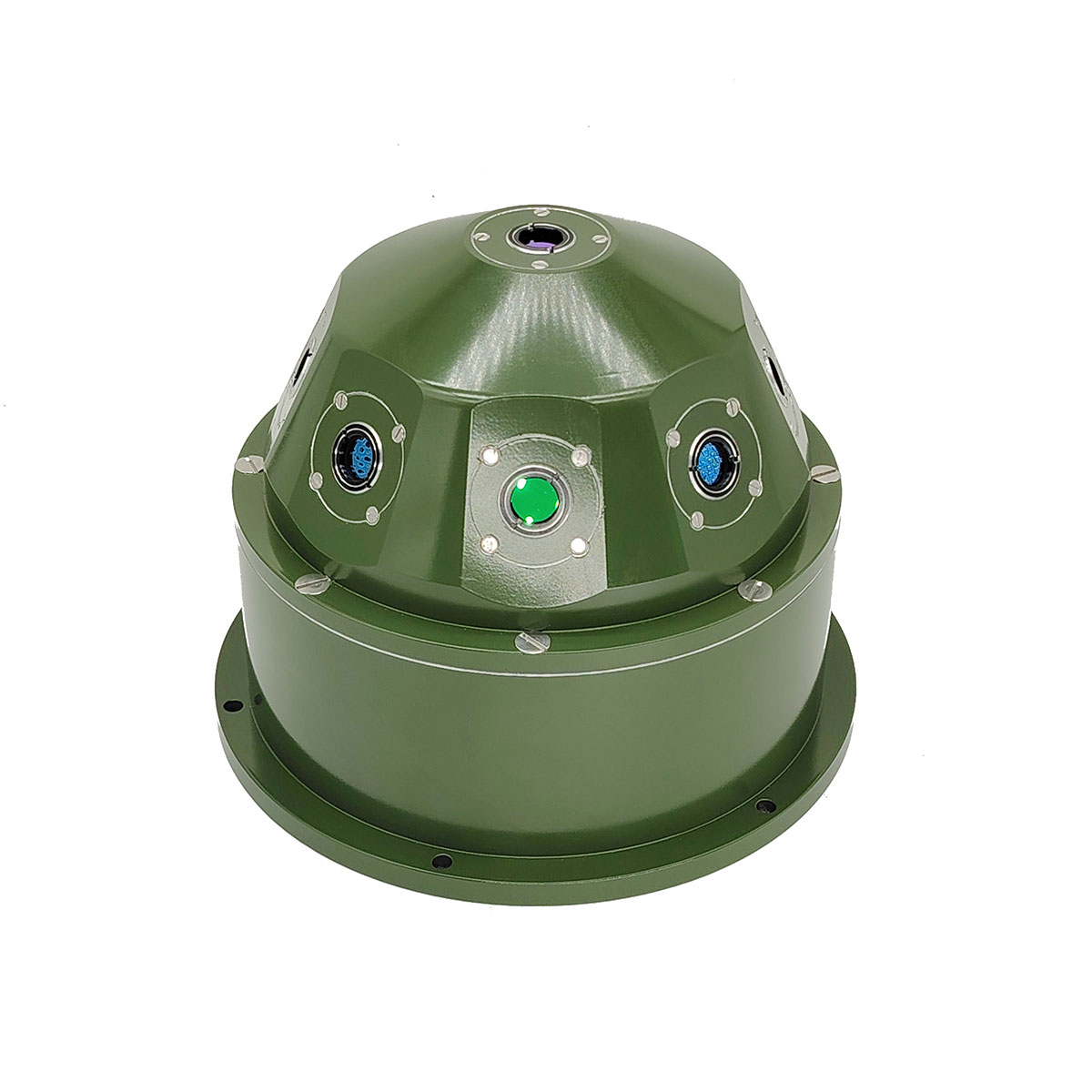

 Detection field of view (FOV): It should cover a 360° horizontal azimuth and as large a pitch angle as possible (e.g., -5° to +90°) to achieve all-round, no-blind-spot vigilance. It is typically achieved through distributed detector arrays or polyhedral prisms combined with staring detectors.

 Spectral coverage: It should cover the main military and potential threat laser bands (typically 0.4-1.1 μm, 1.5-1.8 μm, 8-12 μm).

Angular resolution: The ability to precisely indicate the direction of the threat (usually within a few degrees).

Wavelength resolution: The ability to distinguish between different laser bands.

Sensitivity/detection range: The ability to reliably detect low incident laser energy density, which determines the warning distance.

False alarm rate: The probability of misidentifying natural light sources (such as the sun and lightning) and artificial non-threatening light sources (such as searchlights and welding arcs) as laser threats must be extremely low.

Response time: The shorter the time from laser exposure to alarm issuance, the better (typically requiring milliseconds).

Multi-target processing capability: The ability to simultaneously handle multiple laser threats from different directions and wavelengths.

III. Widespread Application of Laser Warning Systems

1. Military field (core applications):

Main battle tanks and armored vehicles: Laser warning systems (LWS) are key equipment for enhancing battlefield survivability against enemy tank and anti-tank missile (such as TOW, Kornet) laser ranging and target designator illumination. Modern tanks (such as Leopard 2A7, M1A2 SEPv3) generally integrate advanced LWS.

 Military aircraft and helicopters: LWS is used to warn against ground portable surface-to-air missiles (MANPADS, such as Stinger, Igla) with laser proximity fuses or laser-guided weapons (such as laser-guided bombs) illumination, as well as laser ranging/indicating threats during low-altitude flight. Armed helicopters (such as AH-64 Apache) particularly rely on LWS.

 Surface ships: Defense against anti-ship missiles (such as certain laser semi-active guided models) and enemy ship/land-based laser ranging/indicating.

Important facilities/command posts: Defense against laser-guided weapon targeting and laser reconnaissance.

Individual/special operations: Portable LWS is used to warn against sniper laser ranging or laser blinding weapon threats.

 Integration into electronic countermeasure (ECM) systems: LWS serves as the "eyes" for triggering smoke screens, infrared decoys, laser countermeasures, and other soft/hard kill measures.

2. Civilian and paramilitary fields:

VIP protection vehicles: Protecting the vehicles of high-ranking officials or company presidents from potential laser weapon attacks or laser interference with the driver.

Law enforcement: In specific high-risk operations, early warning systems can be used to detect laser devices that may be used to interfere or blind.

Critical infrastructure security: Such as nuclear power plants and chemical plants, to defend against potential malicious laser interference or sabotage.

High-end research and industrial environments: In high-power laser laboratories or industrial laser processing areas, monitoring whether personnel are accidentally exposed to dangerous laser radiation (as part of a safety interlock).

Spacecraft: Monitoring whether they are exposed to laser irradiation from the ground or space during in-orbit operation (possibly for ranging, communication, or potential interference).

The laser warning system is an indispensable "perceptual organ" on modern battlefields and in specific high-risk environments. It functions like a sharp "laser radar eye", constantly scanning the invisible threat spectrum and converting the potential fatal precursor of laser irradiation into timely alerts and countermeasures. From steel behemoths like tanks to aircraft soaring in the blue sky, from warships cutting through waves to soldiers on special missions, LWS silently safeguards the safety of personnel and equipment. With the continuous upgrading of electro-optical countermeasure technology, the laser warning system is bound to keep evolving in the directions of multi-spectral detection, artificial intelligence integration, and miniaturization, playing an even more crucial role in the future "light war" and becoming a solid shield against intangible threats and for seizing the initiative on the battlefield.
