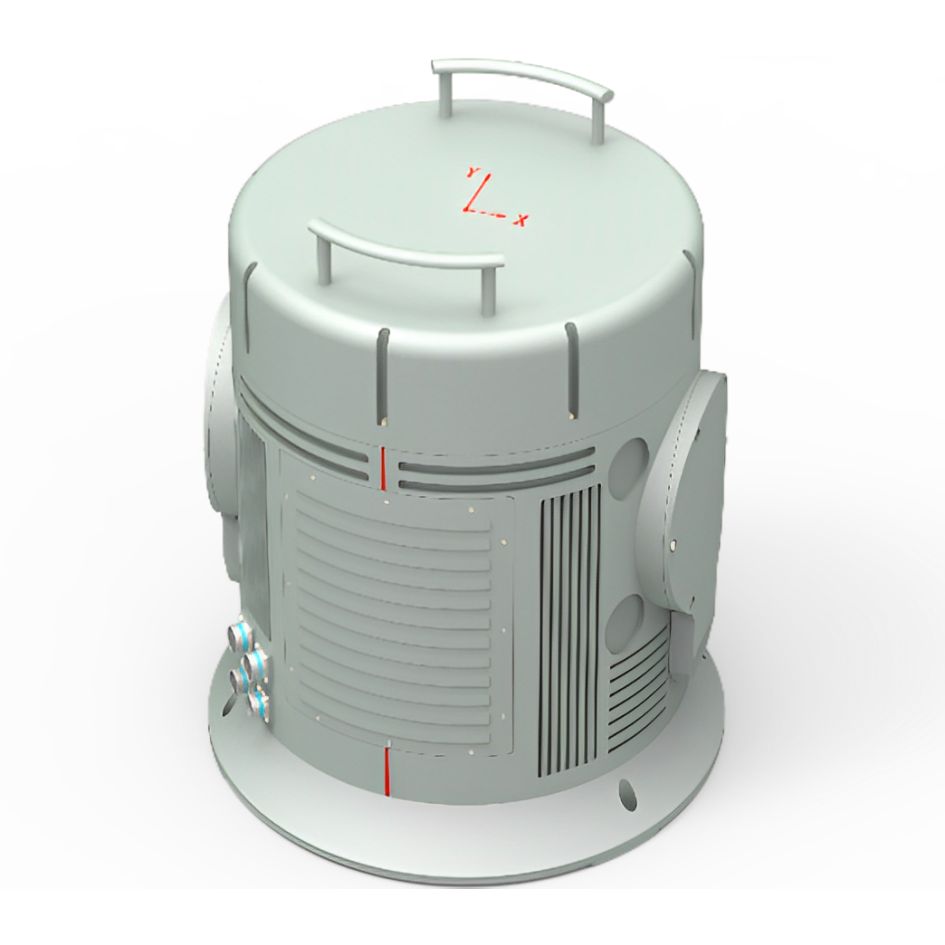

Ring Laser Gyroscope Two-Axis Indexing Inertial Navigation System
  • Ring Laser Gyroscope Two-Axis Indexing Inertial Navigation SystemRing Laser Gyroscope Two-Axis Indexing Inertial Navigation System

Ring Laser Gyroscope Two-Axis Indexing Inertial Navigation System

Ring Laser Gyroscope Two-Axis Indexing Inertial Navigation System-D90C is an inertial navigation system based on ring laser gyroscope and quartz flexible accelerometer. Can be combined with altimeter, GNSS, airspeed meter and other auxiliary equipment, can provide air carrier, ground carrier and other navigation information, such as speed, position and attitude.

Model:JIO-D90C

Send Inquiry    PDF DownLoad

Product Description


Ring Laser Gyroscope Two-Axis Indexing Inertial Navigation System-D90C Introduction

JIO-D90C is an inertial navigation system based on ring laser gyroscope and quartz flexible accelerometer. Can be combined with altimeter, GNSS, airspeed meter and other auxiliary equipment, can provide air carrier, ground carrier and other navigation information, such as speed, position and attitude. D90C series of inertial navigation systems can be widely used in tanks,all kinds of armored vehicles,self-propelled artillery,rockets,all kinds of unmanned aerial vehicles,aircraft,ships,automobiles,high-speed rail,unmanned vehicles, mobile satellite communication systems,drilling and other carrying platforms. Flight control, attitude stabilization,weapon stabilization platform, positioning and positioning, etc.

Technical features

Two-axis indexing mechanism for error mitigation
High accuracy ring laser gyro and quartz accelerometer
Optional static or moving base self-alignment
Error parameters calibration and compensation in full temperature range
Optional diverse input interfaces for GNSS/Odometer/DVL
Configurable navigation modes
Excellent environmental suitability
Military standards

Typical application scenarios

Under-sea vehicle navigation
Positioning and north-finding for land vehicle
Stabilization and control for moving carrier
Attitude measurement for demanding applications

Main functions of the system

It has the function of outputting information such as carrier position, heading, attitude angle, angular rate and speed in real time;
It has working modes such as pure inertial navigation and INS/GNSS (including Beidou) integrated navigation;
Possess the function of receiving satellite navigation information provided by external time system frequency standard equipment;
It has the function of ground self-alignment and supports the function of air alignment;
It has functions such as power-on self-test, periodic self-test, status report, installation error compensation, and non-volatile storage.

System composition and dimensions

The whole system is composed of two parts: the inertial navigation main instrument and the inertial navigation main instrument bracket. Among them, the external dimensions of the main instrument are as follows:



Main technical indicators of the system

System accuracy
System Accuracy
Pure Inertial Navigation/Pure Inertial Navigation
2.0nmile/5d, PEAK
Integrated Navigation/Navigation with GNSS
≤5m , 1σ _
Heading angle /Heading
0.01°, RMS
Horizontal attitude (roll and pitch )
Horizontal Attitude (roll & pitch)
0.005°, RMS
Pure Inertial Velocity
1m/s , RMS
GNSS Integrated navigation Velocity
0. 1 m/s , RMS
Indicators of inertial devices Gyro and Accelerometer Parameters
laser gyroscope _
Gyroscope
Range/Range
± 6 00 deg/s
Bias Stability
≤0.02 deg/h, 1σ
Zero bias repeatability
Bias Repeatability
≤0.02 deg/h, 1σ
Scale Factor non-linearity
1 ppm
Accelerometer
Accelerometer
Range/Range
± 15g _
Bias Stability
≤10μg , 1σ
Zero bias repeatability
Bias Repeatability
≤10μg , 1σ
Scale Factor non-linearity
15 ppm
align time Alignment Time
Cold Start
≤ 10 min
Re-Start
≤15min
Air/In-Flight Start
more than 10h
Interface Features interface
Supply voltage/Voltage
18~36VDC
Power Consumption
≤ 40W @ 24VDC
Electrical interface/Electrical
RS232 × 2
RS422 × 3
CAN × 2
Ethernet × 1
1pps × 1
Data Update Rate (configurable)
200Hz@115.2kbps _ _ _
Use environment Environmental
Operating Temperature
-40°C~+65°C
Storage temperature/Storage Temperature
-55°C~+85°C
Use Altitude/Altitude
20000m
Humidity
95% (+25°C)
Vibration/Vibration
5g @ 20~2000Hz
Shock/Shock
40 g, 11 ms, 1/2 Sine
Physical properties Physical
Dimensions/ Size (L*W*H)
540 x 536mm _
Weight/ Weight
55 kg

Note: The structure can be customized according to the user's requirements.
