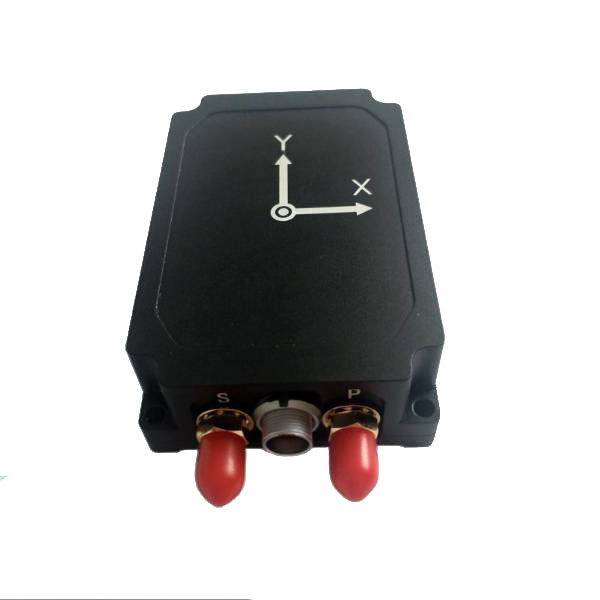

Fiber optic gyroscope-High precision Integrated Navigation System
JIO-100B0 Fiber optic gyroscope-High precision Integrated Navigation System integrated navigation system has built-in high-performance MEMS gyroscope and accelerometer.And satellite navigation module, can achieve outdoor high-precision attitude, speed, position Measurement.
Model:JIO-100B0
Send Inquiry
Product Description
JIO-100B0 Fiber optic gyroscope-High precision Integrated Navigation System With multi-sensor fusion capability, it can be integrated with external odometers, speedometers, etc.The information is fused to maintain the navigation accuracy when GNSS is invalid.
JIOPTICS installation of fiber optic gyroscope to provide ease of integration flexibility, and our developers toolkit to rapid prototyping, not only meet the specification requirements, also provide high-quality performance meet the demand of end users.
JIOPTICS installation of fiber optic gyroscope to provide ease of integration flexibility, and our developers toolkit to rapid prototyping, not only meet the specification requirements, also provide high-quality performance meet the demand of end users.
Our services
JIOPTICS is a professional and efficient team. Provide OEM/ODM services for you, contact us to customize your exclusive fiber optical gyroscope
Product Features
-0.1° attitude accuracy, 2m positioning accuracy
- Capable of external auxiliary sensor fusion
- Operating temperature range: -40℃~+60℃
- Very high shock and vibration resistance
- IP65 sealed enclosure for harsh environments
- Rich interfaces, support RS232, RS422, CAN and other standard interfaces
- High reliability
- Capable of external auxiliary sensor fusion
- Operating temperature range: -40℃~+60℃
- Very high shock and vibration resistance
- IP65 sealed enclosure for harsh environments
- Rich interfaces, support RS232, RS422, CAN and other standard interfaces
- High reliability
Electrical Characteristics
- Power supply: 5V (typ)
- Rated power: 3W (max)
- Ripple: 100mV (peak-to-peak)
- Rated power: 3W (max)
- Ripple: 100mV (peak-to-peak)
Application scenarios
By matching software for different application scenarios, the product can be widely used in construction machinery
Intelligent tracking and positioning, unmanned system automatic driving, large-scale equipment positioning management, commercial
industrial drones, etc.
Intelligent tracking and positioning, unmanned system automatic driving, large-scale equipment positioning management, commercial
industrial drones, etc.
Mechanical Dimensions
Technical parameters:
| Attributes | Parameter | Index | Remark |
| Heading accuracy | Dual GNSS | 0.1° | 2m Baseline |
| Single GNSS | 0.2° | Need to maneuver | |
| Post-processing | 0.03° |
|
|
| Maintain precision | 0.2°/min | GNSS failure | |
| Attitude accuracy | GNSS efficient | 0.1° | Single point L1/L2 |
| Inertia/Odometer Combo | 0.1° (RMS) | Optional | |
| Post-processing | 0.02° |
|
|
| Maintain precision | 0.2°/min | GNSS failure | |
| V-G mode | 2° | Unlimited GNSS failure time, no acceleration | |
| Horizontal positioning accuracy | GNSS efficient | 1.2m | Single point L1/L2 |
|
|
2cm+1ppm | RTK | |
| Inertia/Odometer Combo | 2‰D (D means mileage, CEP) | Optional | |
| post-processing | 1cm+1ppm |
|
|
| GNSS failure | 20m | Failure 60s | |
| Horizontal speed accuracy | GNSS effictive | 0.1m/s | Single point L1/L2 |
| Inertia/Odometer Combo | 0.1m/s (RMS) | Optional | |
| Inertia/DVL combination | 0.2m/s (RMS) | Optional | |
| Gyro | Measuring range | ±450°/s |
|
| Zero bias stability | 2°/h | Allan variance | |
| Accelerometer | Measuring range | ±16g | Custom 200g available |
| Zero bias stability | 30µg | Allan variance | |
| Communication Interface | RS232 | 1 channel | Optional 1 channel RS422, 1 channel RS232 |
| RS422 | 1 channel | Or 2 channel RS422, 1 channel CAN | |
| CAN | 1 channel |
|
|
| Odometer differential input | 1 channel | optional | |
| PPS output | 1 channel | optional | |
| EVENT input | 1 channel | optional | |
| Electrical Characteristics | Voltage | 5~36V DC |
|
| Power consumption | ≤3W |
|
|
| Ripple | 100mV | P-P | |
| Structural properties | Size | 80 mm × 53 mm × 23 mm |
|
| Weight | ≤150g |
|
|
| Use environment | Operating temperature | -40℃~+60℃ |
|
| Storage temperature | -45℃~+65℃ |
|
|
| Vibration | 20~2000Hz，6.06g |
|
|
| Impact | 30g，11ms |
|
|
| Protection class | IP65 |
|
|
| Reliability | MTBF | 30000h |
|
| Lifetime | >15 years |
|
|
| Continuous working time | >24h |
|
