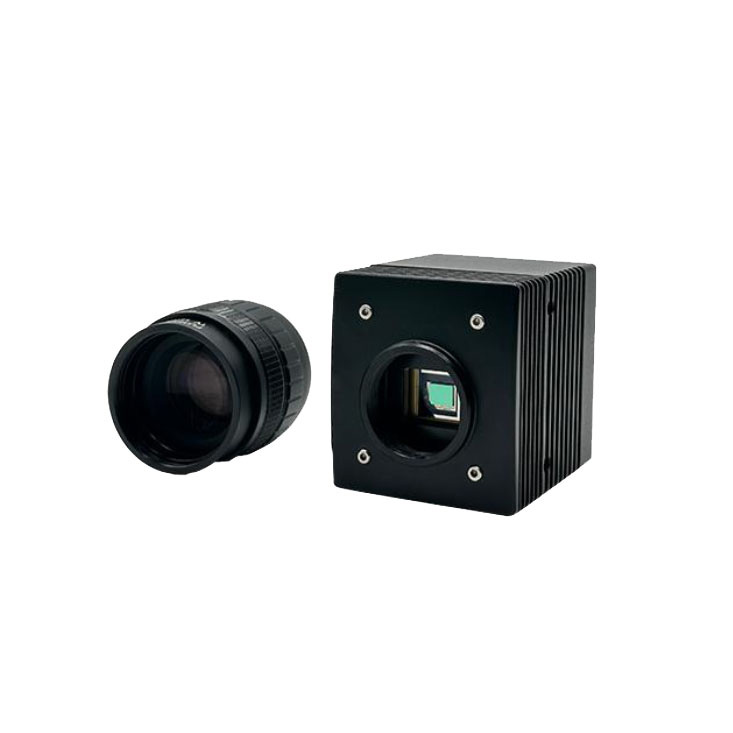

0.9μm~1.7μm IR Shortwave Camera with InGaAs Detector
The spectral band that can be perceived by the human eye belongs to the visible field, and the STA-SW320 series 0.9μm~1.7μm IR Shortwave Camera with InGaAs Detector can capture images at wavelengths of 900-1700nm.
STA-SW320-U | STA-SW320-G is a QVGA resolution InGaAs camera that supports both PAL output and USB2.0 output modes/PAL output and Gigabit network port output modes. It can be widely used in industrial production process detection, laser and scientific research.
Model:STA-SW320-U
Send Inquiry
Product Description
0.9μm~1.7μm IR Shortwave Camera with InGaAs Detector Performance parameter
| Model | STA-SW320-U |
| Detector | SW320 |
| Pixel number | 320 x 256 |
| Spectral response | 0.9 μm~ 1.7μm |
| Pixel spacing | 15μm |
| Effective area | 4.8mmx 3.84mm |
| Quantum efficiency | >70%（1.0μm ~ 1.6μm） |
| Frame frequency | 200 Hz |
| Integral type | Snapshot |
| Integral time | 100 μs ~ 20 ms /200Hz Maximum integral 4.5ms |
| Operable pixel rate | >99.5% |
| Full well capacity | 2.2M e- |
| ADC | 14bit |
| Analog video output | PAL system, SMA interface |
| Digital output | USB 2.0 |
| Camera software/secondary development | Windows application software/windows SDK development kit |
| External trigger function | RS-422 / TTL |
| Power input | DC 12V ± 2V |
| Power | <4W（Don't open TEC） |
| Camera size (excluding lens) | 50mm× 55mm×63mm |
| Lens interface | C-Mount |
| Refrigeration method | TEC1 |
| Working environment temperature | -20 ℃ ~ +50 ℃ |
| Storage temperature | -40 ℃ ~ +80 ℃ |
| Onboard image processing | Single-point / two-point correction, bad-point replacement, image denoising, image smoothing, and controlled shutter compensation |
Quantum efficiency
Camera Size
Schematic diagram of the laser spot seen parallel to the camera and the laser
Schematic diagram of laser irradiation camera spot
Note：Camera with a 35mm lens, can choose to configure 50mm,75mm,100mm,200mm lens.
