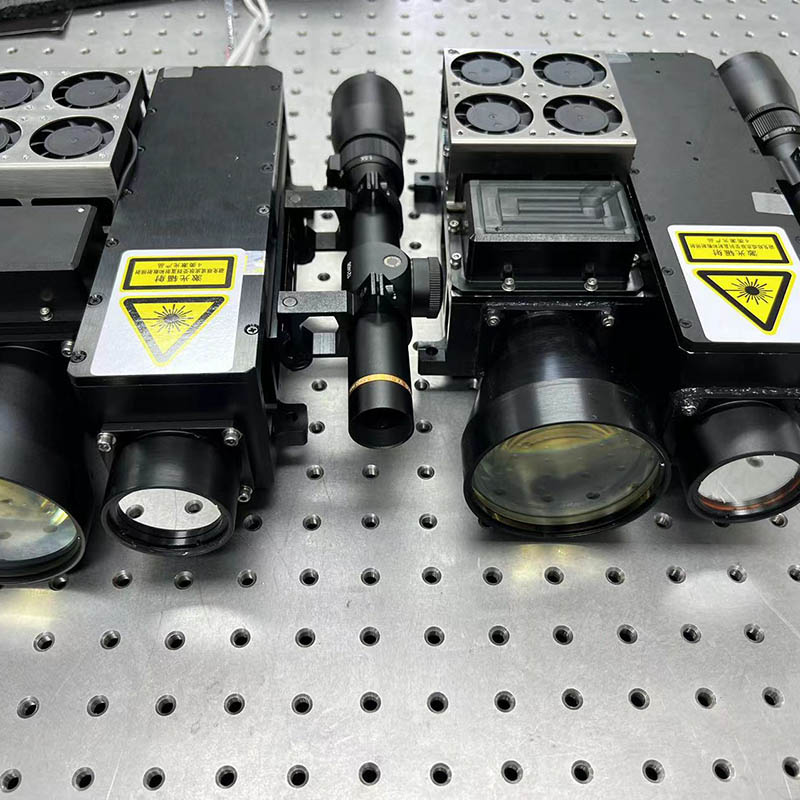

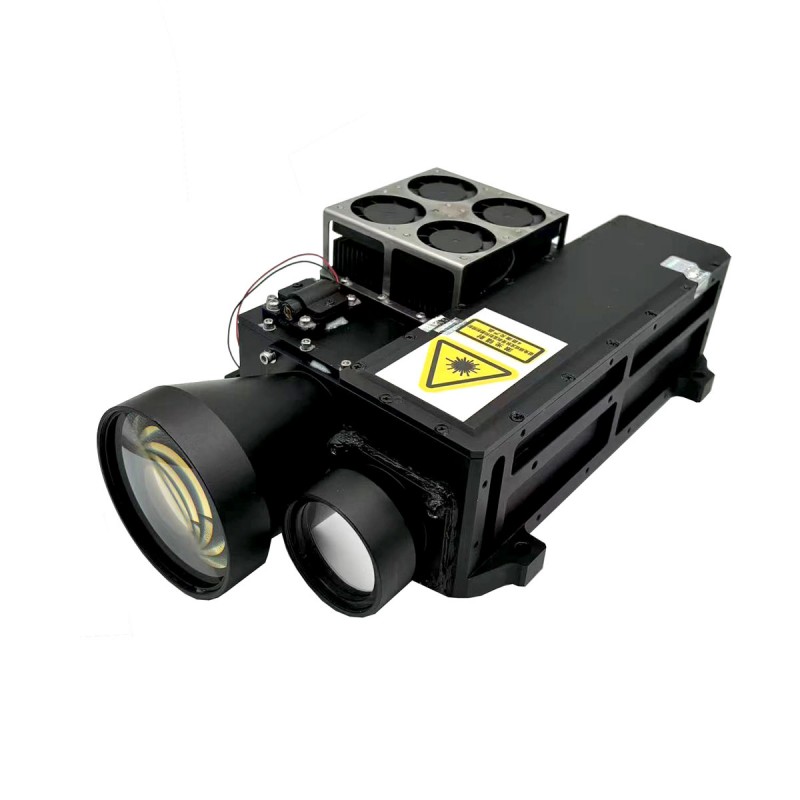

100mJ Laser Target Designator(LTD) wiht LRF

STA-Z100M is a military 100mj laser target designator that plays a crucial role in precision aiming systems, capable of providing precise guidance for smart ammunition. Through an advanced optical system, it marks the target with a laser beam, ensuring that precision-guided weapons can destroy the target with extremely high accuracy and efficiency.

Send Inquiry

Product Description

This model of laser target designator adopts the integrated design, the system consists of a laser light source and driver, a distance measurement module, an observation system, and a control module.

Main function

Target guidance
Target distance determination
Disassembled aiming beam

Main technical indicators

Main parameters of laser light source
Working wavelength	1064nm±1nm
Pump mode	semiconductor side pump
Irradiation frequency	accurate code 45ms—125ms(check code 20Hz)
Trigger method	Both Int. trigger and Ext. trigger (trigger delay: 304us+-1us)
Output energy	≥100mJ@20Hz
Max.Irradiation distance	≥12km
Q switching mode	electro-optical Q switching
Pulse width	10ns ~ 20ns
Beam divergence Angle	Using 0.15mrad (the acceptance method adopts hole-hole method, and the ratio of hole-hole to hole-free is not less than 86.5%)
Pulse energy stability	≤8%(RMS)
Irradiation working cycle	working 90s, interval 60s; 4 cycles (normal temperature or low temperature), 1 cycle(high temperature 60℃ )
Power supply	DC 24V±4V
Power	<240W (normal temperature standby current: <2A, peak working current <10A, high and low temperature standby current <3.5A)
Communication serial port	RS422
External trigger interface	3V differential level drive, RS422 interface (delay time is 304us+/-1us from trigger signal to lase out)
Coding type	precise frequency coding, time coding, pseudo random coding
Using precision	<+-1us
Laser ranging parameters
Ranging mode	0~5hz ranging
Maximum measured distance	>30km (20km visibility, 2.3x2.3m typical target, target reflectance > 20%)
Minimum measured distance	300m
Ranging accuracy	±5m
Environmental adaptability
Low temperature	Operating temperature: -40C
Low temperature	Storage temperature: -45℃
High temperature	Operating temperature: + 60℃
High temperature	Storage temperature: +65℃.
Humid heat	Relative humidity: 95%±3%;
	Temperature: +35℃±2℃
	Storage time: 72h.
Impact
Impact waveform	half sinusoidal pulse
Peak acceleration	10g
Pulse width	11ms
Number of shocks	3 in vertical axial direction
Vibration
Frequency range	5~16Hz single amplitude displacement: 1.5mm
Frequency range	16~200Hz (16~60Hz for optical equipment) acceleration: 1.5g
One scan time	12min
Duration	vertical axial 36min

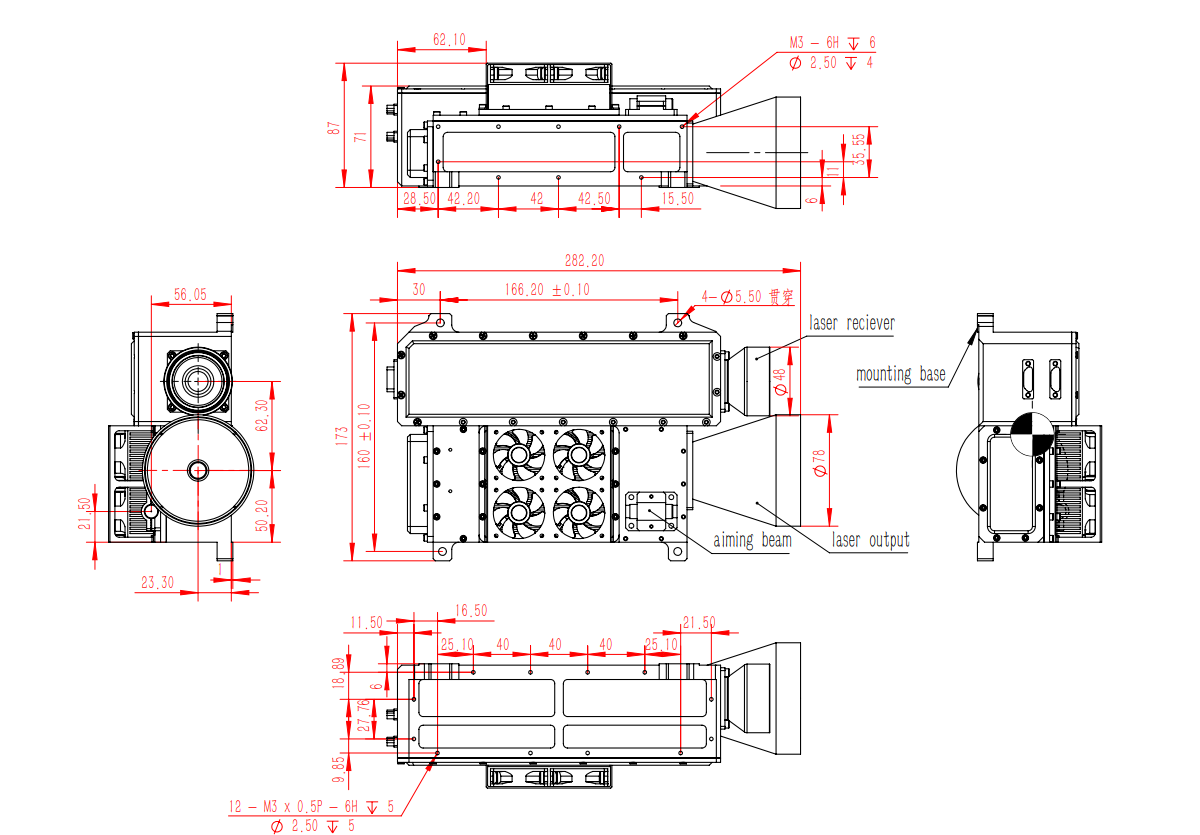

Volume of full set

Electrical interface

Communication connector (socket model J30J-15ZKP, butt plug model J30J-15TJ) Pin definition

Pin	Definition	Content	Type of signal	Remarks
1	TX+	RS422 Send positive (local)	Output	Object host computer
2	TX -	RS422 Send negative (local)	Output	Object host computer
3	RX+	RS422 Receive positive (local)	Input	Object upper computer
4	RX -	RS422 Receive negative (local)	Input	Object upper computer
5	GND	Ground RS422	Signal ground	Object upper computer
6				Manufacturer's debug special
7				Manufacturer's debug special
8				Manufacturer's debug special
9				Manufacturer's debug special
10				Manufacturer's debug special
11				Manufacturer's debug special
12				Manufacturer's debug special
13				Manufacturer's debug special
14		External time system +	Input	RS422 differential
15		Outer time Tong -	Input	RS422 differential

Power connector (plug type J30J02P020P000S0P120, plug type J30J02P020S000S0L000) Pin definition

Pin Number	Definition	Remarks
A, B	24V	The wire color is red
C, D	GND	The wire color is black

Key performance indicators

Power supply and power consumption	Power supply range	20V ~ 33V, DC
	Power consumption	peak power is not more than 240W, standby power is not more than 60W (room temperature)
Reliability	MTBF is not less than 4000h (total firing time is larger than 3 millions)
Security	Set up a warning device for the laser to work
	The exit of the laser transmitter is provided with obvious warning signs
	The equipment is well grounded
Maintainability	All major functional components and equipment have both fault indicators and indicators for normal operation
	The average repair time MTTR is not more than 20min
Electromagnetic compatibility requirements	In the system boot-up process, the equipment can be compatible with other equipment in the system and operate normally

Environmental adaptability requirements

Temperature	Operating temperature		-40℃ ~ +60℃
	Storage temperature		-45℃ ~ +70℃
Humid heat	Relative humidity		95% ± 3%
	Temperature		+25°C±2°C
	Storage time		72h
Vibration	Vibration spectrum shape (grms=6.06)		20Hz to 80Hz			+3dB/oct
			80Hz to 350Hz			G2/0.04 Hz
			350Hz to 2000Hz			-3dB/oct
	Vibration direction and time		vibrate in two direction for at least 10min. (vibration in two direction i.e. x axis that is along the laser axis and z direction too)
	Control point		should be selected in the fixture or shaking table surface near the maximum stiffness of the product, large equipment can use multi-point average control
	Monitoring point		the monitoring point should be selected in the key part of the product under test, so that the root mean square acceleration response does not exceed the maximum allowable design (grms=6.06)
	Installation requirements		The specimen is firmly attached to the shaking table, and for products equipped with shock absorbers, the shock absorbers should be removed before testing
	Performance check		During vibration testing with the equipment powered on, all performance indicators must meet the technical requirements specified in the design document. In the event of a failure, repairs are allowed. After the repair, the spectral value should be reduced to 0.01g²/Hz, grms=3.03, and the specimen should be subjected to vibration in the direction most susceptible to vibration for 10 minutes during the acceptance test.
Temperature cycle	Temperature range		Power-on test		-40±3℃ ~ +55±2℃
	Rate of temperature change		Temperature rise		10℃/min
			Cooling		10℃/min
	Cycle times		Ten cycles should be completed, ensuring that the last 2 cycles are without faults. If a fault occurs during the last 2 cycles, after repairs, an additional 2 fault-free cycles are required.
	Cycle time		One cycle time is 4h, one cycle includes temperature rise → temperature stay → cooling → temperature stay → temperature rise
	High and low temperature residence time		the residence time depends on the heat capacity of the specimen. Based on the principle of product thermal or cold permeability, the internal temperature of the specimen is maintained for 5min after reaching stability
	The requirements of the product under test		general temperature cycle test with the whole machine, should be as far as possible to open the cover
	Check and repair		In the power test equipment, after each temperature cycle test, it is necessary to confirm that the equipment is free of faults before proceeding to the next temperature cycle
Drenching requirements	Drenching is carried out with the whole equipment
transportation requirements	Equipment needs to be transported as a whole vehicle
	If the product has not undergone a road transport test, you can perform an indoor transport simulation test using a simulation transport table. This test involves conducting a sinusoidal cyclic vibration test to assess the product's performance
	The requirements of the simulated transport table test are as follows
	Test conditions	Frequency		5Hz ~ 200Hz
		Amplitude		5Hz ~ 7Hz
		Amplitude 12mm ~ 8mm
		7Hz ~ 200Hz equal acceleration 1.5g
		Vibration test condition allowable deviation is the same as broadband random vibration test
	Direction	vertical axle direction and side;Orientation: vertical and lateral to the axle
	Cycle time	log-scan 5Hz ~ 200Hz ~ 5Hz, 12min per cycle;When the resonant frequency of the specimen is measured below 5Hz, the test frequency can be extended to 2Hz, 2Hz ~ 200Hz ~ 2Hz scanning, scanning time should be 15min.The vibration time in each direction is 90min
	After the transportation test, check for any signs of damage or structural loosening, and conduct an inspection of technical indices to ensure they meet the design requirements
