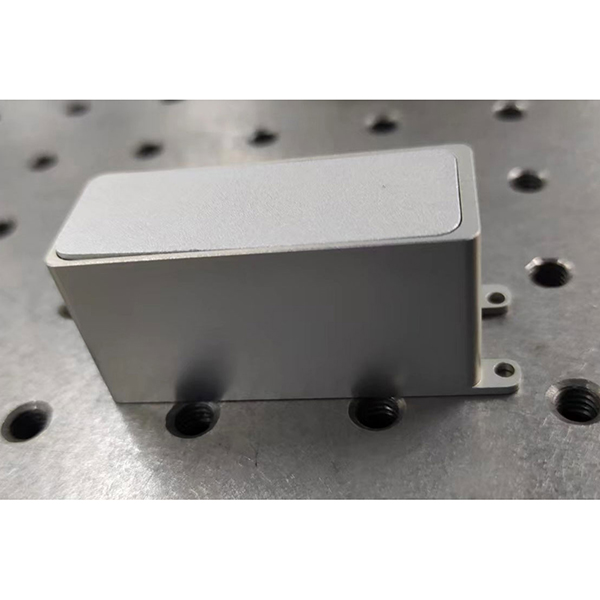

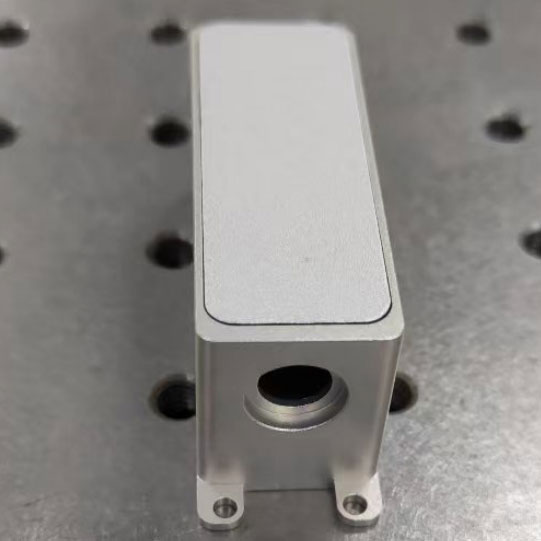

1064nm YAG Laser 15mJ 5Hz
  • 1064nm YAG Laser 15mJ 5Hz1064nm YAG Laser 15mJ 5Hz
  • 1064nm YAG Laser 15mJ 5Hz1064nm YAG Laser 15mJ 5Hz

1064nm YAG Laser 15mJ 5Hz

The 1064nm YAG Laser 15mJ 5Hz is one of the most widely used of all solid-state lasers, and can be used in materials processing, holographic technology, ranging, target illumination and indication, surgery and other fields.

Peak wavelength: 1064nm
Mono-pulse energy: 15mJ
Operating frequency: 20Hz
Operating temperature: -40℃~+55℃

Send Inquiry

Product Description

1064nm YAG Laser 15mJ 5Hz Technical parameter


Wavelength
1.64um
Peak power
≥15mJ
Pulse Repetition Rate
≤5Hz±0.1Hz
Beam Divergence
≤8mrad
Continuous operating time
≥5min(when operating with 10Hz, it can continuous operates for 30mins)
Operating Temperature
-40℃~55℃
Storage Temperature
-45℃~65℃
Vibration
It meets the national standard-GJB5849-2006 It can be applied on vehicle/Vessel-mounted situation
Dimension
≤65*20*25mm(cooling fin is not included)
Weight
≤100g(cooling fin is not included)

OEM/ODM 1064nm YAG lasers

Jioptics can customize various energy of 1064nm YAG laser for you

Pin definition

NO.
Pin.
Definition
Note.
1
LD+
LD power+, yellow

2
LD-
LD power -, grey

3
TEC+
TEC power+, red

4
TEC-
TEC power -, black

5
T1
Thermistor1, blue
Thermistor Type#: MFB103-3380(1%)
6
T2
Thermistor2, blue

size
