10km Range Finder Module

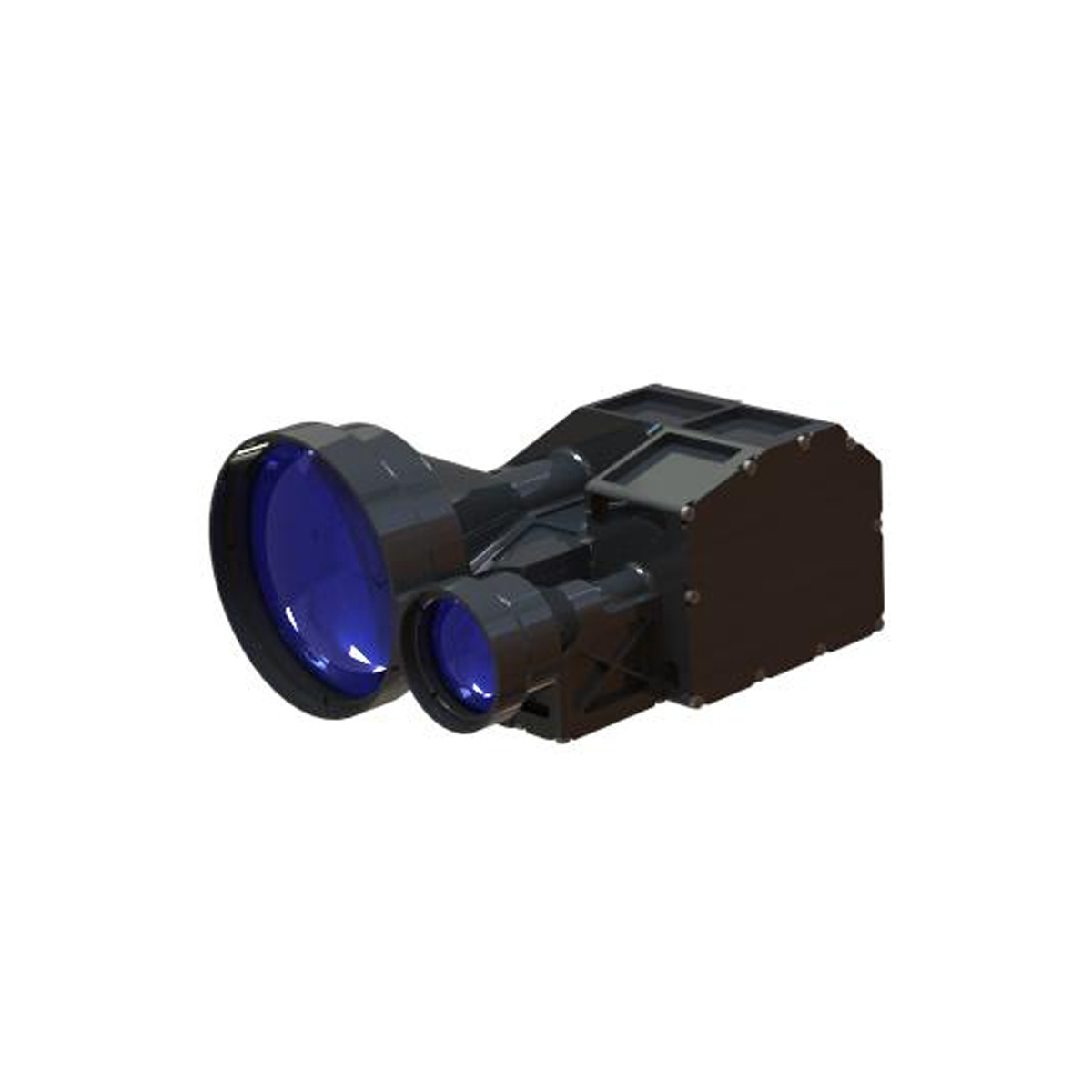

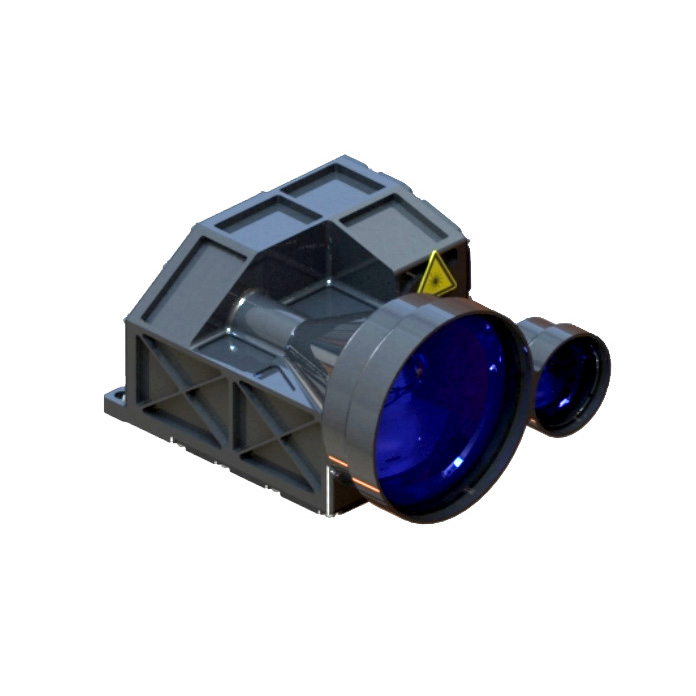

STA-D1925X 10km Range Finder Module adopts the 1535nm erbium glass laser module independently developed by Jioptics, which has the characteristics of low power consumption, compact structure, high precision, long measuring distance and human eye safety.
Send Inquiry
Product Description
Maximum measuring range: 19000m (vehicle) 23000 m (White building) 25000(Typical target)
Ranging accuracy ±3m
Measurement accuracy ≥ 98%
Weight ≤640g
Ranging accuracy ±3m
Measurement accuracy ≥ 98%
Weight ≤640g
10km Range Finder Module features
1.Integrated design of the whole structure, shock and vibration resistance, the circuit adopts sub-warehouse sealing design, power isolation design, strong electromagnetic compatibility, high reliability, and strong environmental adaptability;
2.The light path is fully sealed, dustproof and waterproof steam design, the whole process of ultra-clean environment production, can be applied to complex environment, low requirements for the installation environment, strong adaptability;
3.The internal interface of the circuit adopts the welding wire direct connection process, which is firm and reliable, which can avoid the short circuit or poor contact caused by the loosening, oxidation and water vapor of the connector, and improve the reliability and life of the product.
2.The light path is fully sealed, dustproof and waterproof steam design, the whole process of ultra-clean environment production, can be applied to complex environment, low requirements for the installation environment, strong adaptability;
3.The internal interface of the circuit adopts the welding wire direct connection process, which is firm and reliable, which can avoid the short circuit or poor contact caused by the loosening, oxidation and water vapor of the connector, and improve the reliability and life of the product.
Product performance index FOR STA-D1925X Laser Rangefinder Module
| Item | Index | |
| Model | STA-D1925X | |
| Operating wavelength | 1535nm ±10nm | |
| Ranging range | 150m-23000m | |
| Ranging capability | 25000m | Typical target,visibility ≥ 25km |
| 23000m | Large target, visibility ≥ 25km | |
| 19000m | Visibility ≥ 25km, target with 0.3 reflectivity for 2.3m × 2.3m vehicles | |
| Communication Interface | RS422 | |
| Humidity | ≤ 80% | |
| Ranging accuracy | ±3m | |
| Accuracy rate | ≥98% | |
| Range resolution | ≤40m | |
| Divergence angle | ≤0.4mrad | |
| Ranging frequency | 1 time,1hz,5hz | |
| Size | ≤144mm×108mm×75mm | |
| Voltage | 22V～34V | |
| Working power consumption | Average power consumption: ≤ 10W | |
| Standby power consumption | ≤3W | |
| Working temperature | -40℃～+60℃ | |
| Storage temperature | -55℃～+70℃ | |
| Weight | ≤800g | |
Structure installation interface FOR STA-D1925X Laser Rangefinder Module
Electrical interface FOR STA-D1925X Measuring sensor
The connector socket model of the laser rangefinder is J30J-9ZKP, which includes the power supply and communication signal of the laser rangefinder. Select the standard TTL communication interface to communicate with the system, and the corresponding plug model on the system end is J30J-9TJL, as defined in the table below.
Distance finder end power supply and communication pin definition
| Pin number | Label | Electrical characteristic definition | Note |
| 1，6 | VIN+ | Input power positive | Rangefinder power supply |
| 2，7 | VIN- | Negative pole of input power | |
| 3 | TTL_RXD | Signal receiving port | Upper computer to rangefinder |
| 8 | NC | NC |
|
| 4 | TTL_TXD | Signal sending port | Rangefinder to host computer |
| 9 | NC | NC |
|
| 5 | GND | Communication ground wire |
|
