200Hz 350m ToF Single-Point Ranging LiDAR Module

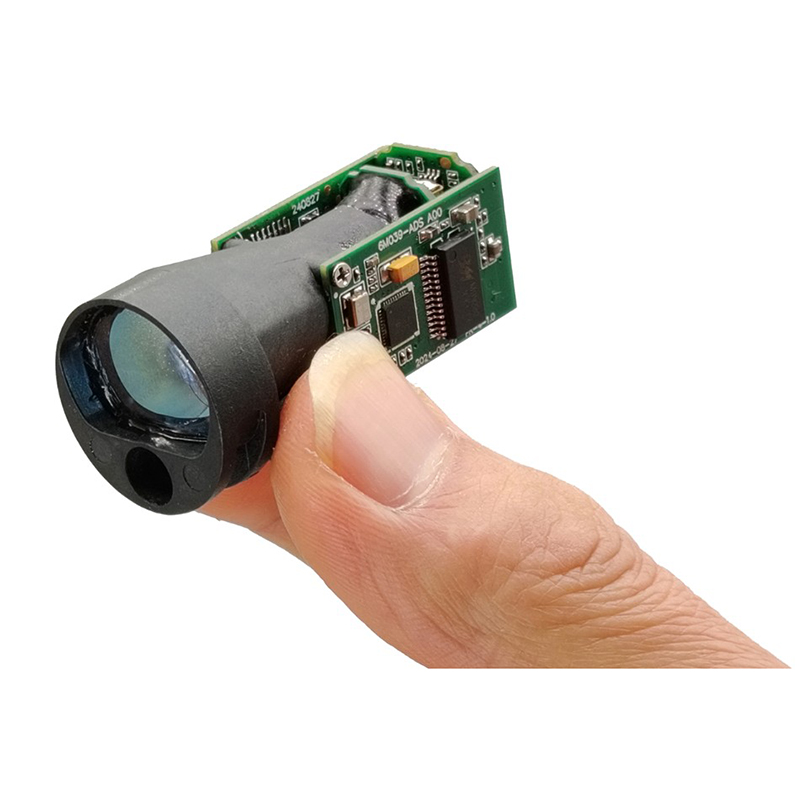

The STA-H350X miniature laser ranging module employs an eye-safe 905nm semiconductor laser component, featuring long service life, fast ranging frequency, compact size, and easy integration. With a high ranging frequency of up to 200Hz, it is ideally suited for low-altitude UAV obstacle avoidance and unmanned vehicle applications.
Send Inquiry
Product Description
Drone altitude control and obstacle avoidance
Robot obstacle avoidance
Industrial grade light curtain
AGV/UAV obstacle avoidance
High speed measurement and safety monitoring in the fields of transportation and industrial automation
Measurement range: 1-350meters
Measurement of trees:≥150 meters
Ranging Frequency:200Hz
Measurement accuracy:±1m
Weight :≤14 ±0.5g
Robot obstacle avoidance
Industrial grade light curtain
AGV/UAV obstacle avoidance
High speed measurement and safety monitoring in the fields of transportation and industrial automation
Measurement range: 1-350meters
Measurement of trees:≥150 meters
Ranging Frequency:200Hz
Measurement accuracy:±1m
Weight :≤14 ±0.5g
Product application
Drone altitude control and obstacle avoidance;
Robot obstacle avoidance;
Industrial grade light curtain;
AGV/UAV obstacle avoidance;
High speed measurement and safety monitoring in the fields of transportation and industrial automation;
Robot obstacle avoidance;
Industrial grade light curtain;
AGV/UAV obstacle avoidance;
High speed measurement and safety monitoring in the fields of transportation and industrial automation;
Technical parameters are shown in the following table
| Model | STA-H350X | |
| Laser wavelength | 905nm | |
| Ranging capability | Building | 350m |
| Trees | 150m | |
| Laser grade | Class 1 Eye safety | |
| Mini range | 1m | |
| Resolution | ±0.1m | |
| Operating Current | ≤90mA | |
| Standby current | ≤20mA | |
| Power consumption | Standby≤0.18W | |
| Peak≤0.55W | ||
| Communication Interface | TTL | |
| Operating Temperature | ·-20℃~+55℃ | |
| Storage Temperature | ·-30℃~+60℃ | |
| Input Voltage | 3-5V(Recommended 5V power supply) | |
| Beam divergence angle | 6 mard | |
| Ranging Frequency | 200Hz | |
| Power | ≤1mW Safe for human eyes | |
| Ranging method | Pulse | |
| Weight | 14±0.5g | |
| Size | Φ23x47mm(Customizable) | |
| Scope of application | Drones and unmanned vehicles are used for obstacle avoidance | |

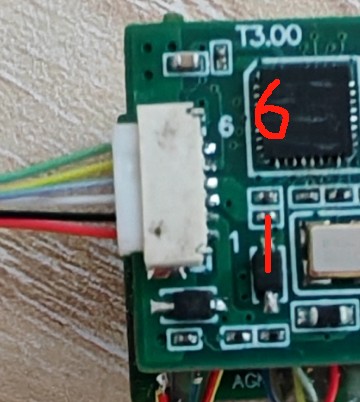

Interfaces and pins are defined as shown in the following table
| TTL interface | ||
| Line Sequence | Pin Definition | Schematic drawing |
| 1 | VCC |
|
| 2 | VCC | |
| 3 | GND | |
| 4 | GND | |
| 5 | RXD | |
| 6 | TXD | |
