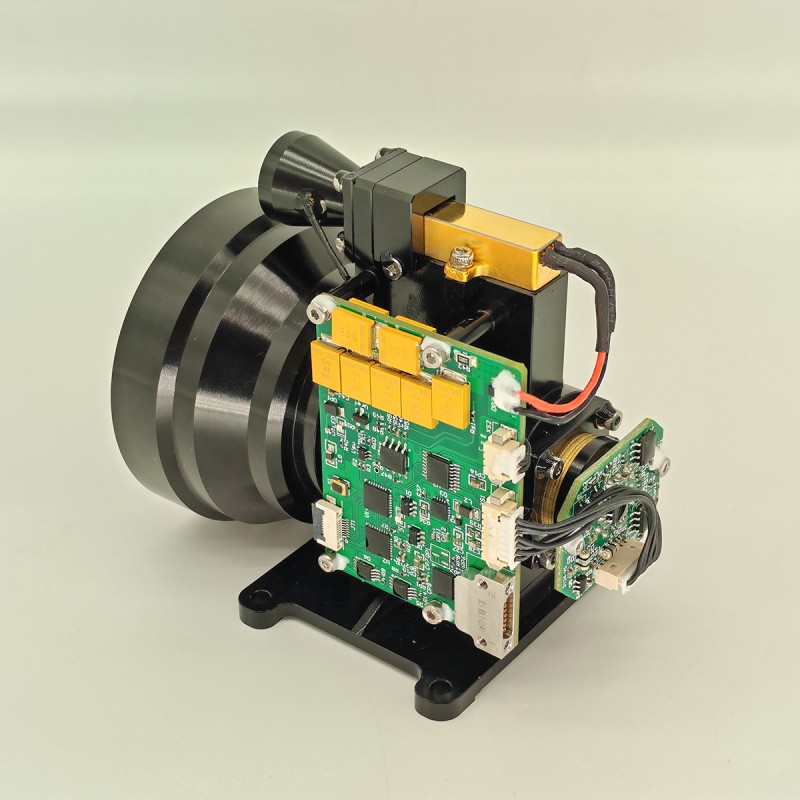

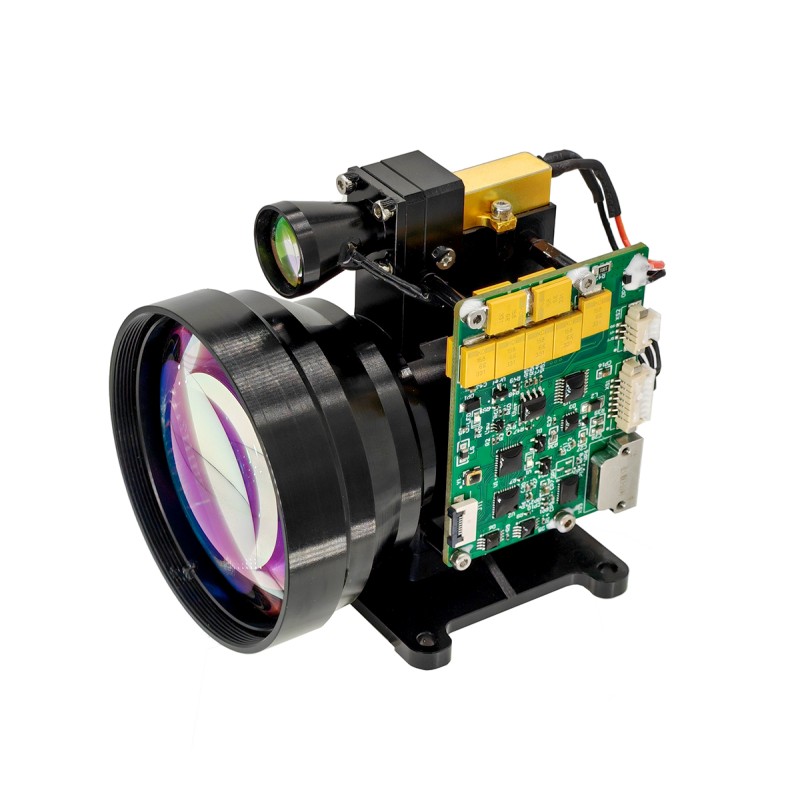

12km Eye-Safe Laser Rangefinder Module
STA-B1220X is a human eye-safe laser distance measurement module, which can detect the target distance and transmit the measured distance to the upper computer through serial communication. Visibility ≥ 25km, target reflectivity ≥ 0.3, humidity ≤ 80%, the vehicle (2.3m × 2.3m NATO Target) ranging distance ≥ 12km; Max Ranging≥ 20km.
Send Inquiry
Product Description
Main functions
(1) Single ranging and continuous ranging;
(2) Responding to laser ranging commands, and can stop ranging at any time according to the stop command;
(3) Output distance data and status information once per pulse during distance measurement;
(4) It can report the cumulative number of transmitted laser pulses (no loss of power down);
(5) Distance selection, front and rear target indication;
(6) Self-test function.
(2) Responding to laser ranging commands, and can stop ranging at any time according to the stop command;
(3) Output distance data and status information once per pulse during distance measurement;
(4) It can report the cumulative number of transmitted laser pulses (no loss of power down);
(5) Distance selection, front and rear target indication;
(6) Self-test function.

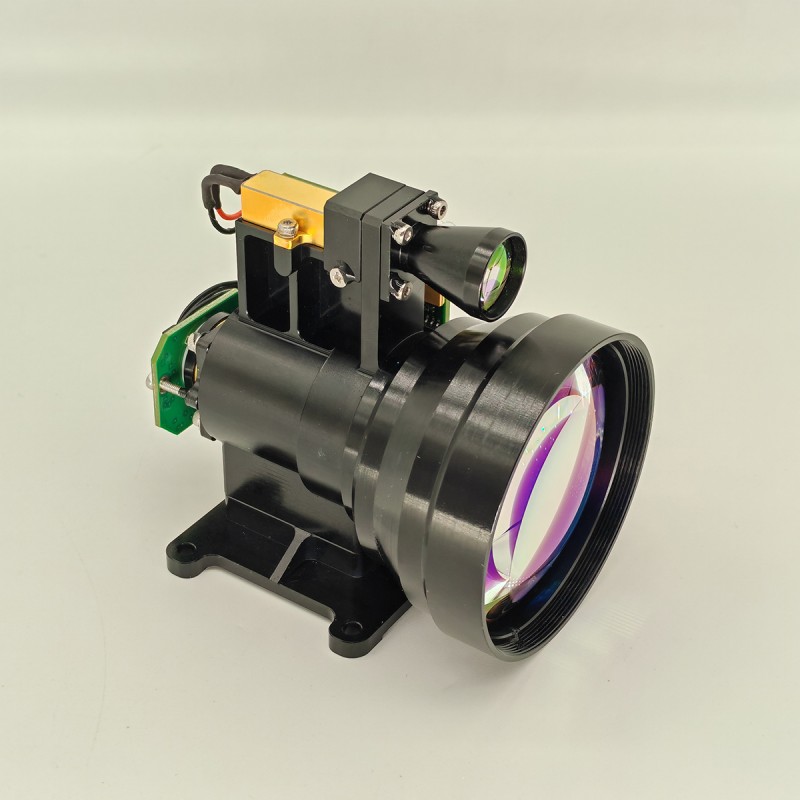

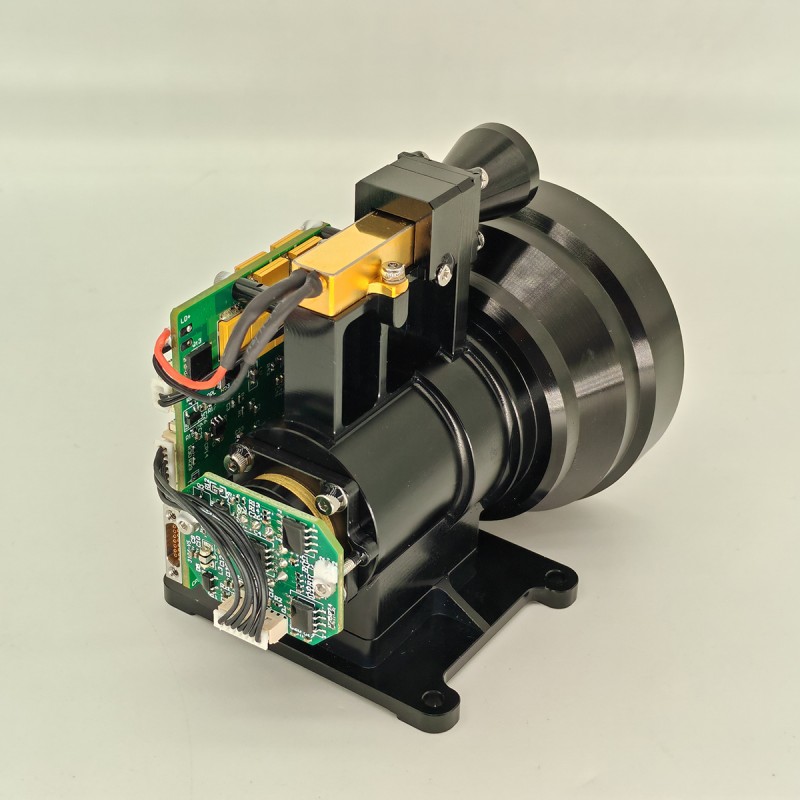

Product Introduction
The B1220X laser rangefinder module is a military pulse laser rangefinder designed for application scenarios such as aircraft, unmanned aerial vehicles, tanks, and scope. It has small size, light weight, low power consumption, stable performance, long measurement distance, and long service life, Human eye safety and other advantages, it is an important technical equipment to improve product aiming accuracy.
Product performance index
| Item | Technical parameter | Instruction |
| Model | STA-B1220X | |
| Working wavelength | 1535±5nm | |
| Eye safety | Class 1 (IEC 60825-1) | |
| Receiving Aperture | Φ57mm | |
| Emission aperture | Φ19mm | |
| Ranging capability | 50m-20km | |
| Ranging range | ≥20000m | Max Range |
| ≥15000m | Big target, Reflectivity: 0.6, observer visibility 25 km | |
| ≥12000m | NATO target | |
| ≥8000m | Human target | |
| ≥3200m | UAV target | |
| Mini Range | 50m |
|
| Multi-target detection | Up to 3 target |
|
| Ranging accuracy | ±3m | 3δ |
| Ranging frequency | 1~10Hz adjustable |
|
| Accuracy rate | ≥98% |
|
| False alarm rate | 1% |
|
| Divergence angle | ≤0.3mrad |
|
| Communication Interface | RS422 / RS232 / TTL |
|
| Voltage | DC18~32V |
|
| Working power | ≤3W | Normal temperature test |
| Peak power | ≤6W | Normal temperature test |
| Mechanical Shock | 75g, 1ms |
|
| Working temperature | -40℃～+60℃ |
|
| Storage temperature | -55℃～+70℃ |
|
| Reliability | MTBF ≥ 1500h |
|
| Size | ≤90mm×63mm×82mm |
|
| Weight | ≤350g |
|
| Main Function | First and last target ranging, Multi-target ranging, Distance selectivity | |
| More function | 1. Distance blind spot setting gating function;2. Self checking function (high voltage, temperature, etc.);3. Distance resolution: 30m; | |
Notes:
1) NATO target size 2.3 m × 2.3 m; Human target size 0.5 m × 1.7 m; UAV target size 0.2 m × 0.3
m; Reflectivity 30%, observer visibility≥ 20km

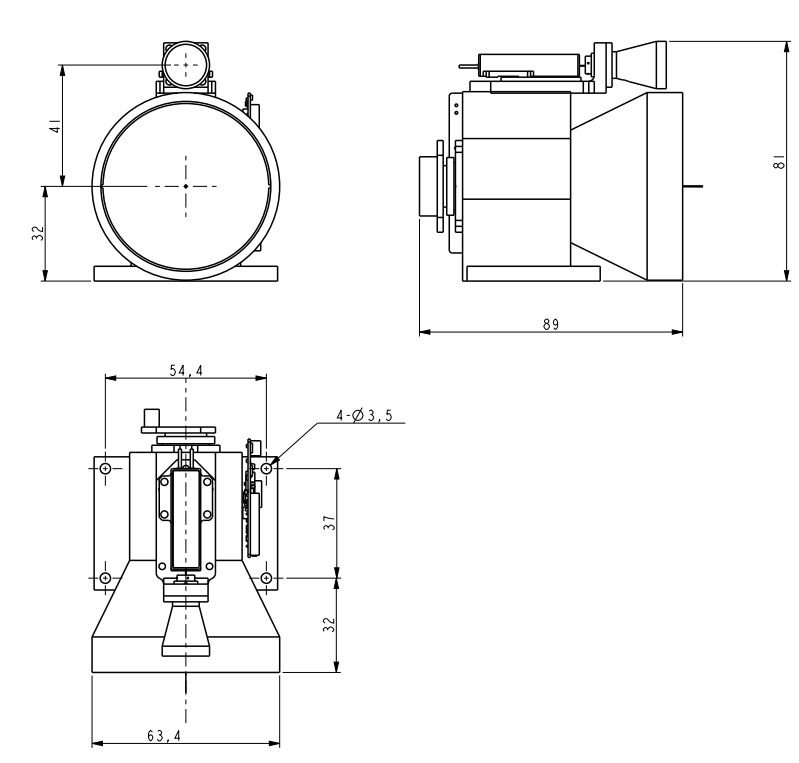

Structure installation interface
External Interface
| Connector model | MDC1-15SW1 | ||
| Pin | Define | Function | Remarks |
| 1 | VEE | Positive power input | 9-36V |
| 2 | GND | Power input ground |
|
| 3 | RS422_T/R+ |
|
|
| 4 | RS422_T/R- |
|
|
| 5 | RS422_RXD- |
|
|
| 6 | RS422_RXD+ |
|
|
| 7 | RS232-TX |
|
|
| 8 | RS232-RX |
|
|
| 9 | TTL-TX |
|
3.3V |
| 10 | TTL-RX |
|
3.3V |
| 11 | GND | Communication ground |
|
| 12 | NC |
|
|
| 13 | NC |
|
|
| 14 | NC |
|
|
| 15 | NC |
|
|
OEM/ODM ranging modules and custom solutions
The B1220X is designed for system integrators looking for a convenient, powerful and compact laser ranging solution. It provides reliable performance in a wide range of applications.
It is very small, ultra-light, has low power consumption and can be measured over a long distance. It is suitable for handheld devices (thermal imaging), weapon mounting applications, portable systems and lightweight sensor suites and unmanned aerial vehicles or UGVs.
It is very small, ultra-light, has low power consumption and can be measured over a long distance. It is suitable for handheld devices (thermal imaging), weapon mounting applications, portable systems and lightweight sensor suites and unmanned aerial vehicles or UGVs.
