1535nm 10km laser rangefinder module
  • 1535nm 10km laser rangefinder module1535nm 10km laser rangefinder module

1535nm 10km laser rangefinder module

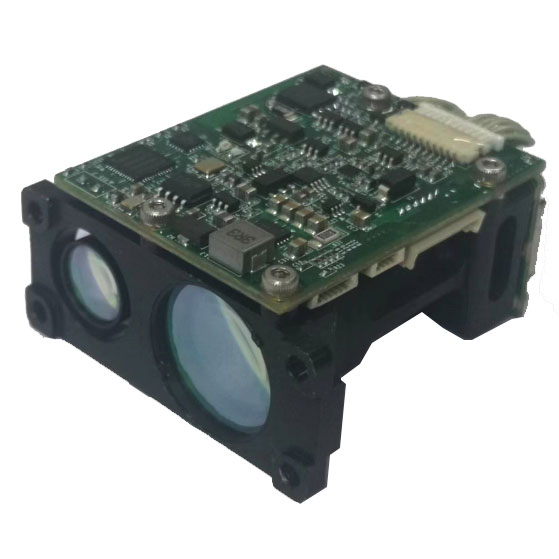

The JIOPTICS 1535nm STA0410 1535nm 10km laser rangefinder module is specially designed for OEM integration and can provide accurate measurement for fire control systems, aircraft/UAV, tank/UGA, ships, border surveillance systems and other applications.
Maximum range ≥ 10000m
Range 2.3×2.3m target size ≥4000m
Distance measuring accuracy ± 1m
Measuring accuracy ≥ 98%
Weight ≤ 69.5g

Model:STA0410

Send Inquiry

Product Description


1535nm 10km laser rangefinder module is a kind of precision distance sensing instrument, by laser receiving optical system laser emission optical system laser transmitter laser receiver power and controller and shell (as shown in figure 1), installed on the ground or vehicle platform, and coaxial with the vehicle view system, driven by the platform system, search and tracking target platform system search to the target, on the target Lock, and output the flag signal that has been searched to the target, and then start the distance data through the output interface, to the upper computer
The main features of the laser rangefinder are: detection distance, long volume, small weight and light response time fast detection and high accuracy can detect multiple targets, and the output target distance data can be fused into the battlefield communication network.

Main performance and technical parameters

Laser wave length
1.535μm
Standby current
0.11A, average current 0.25A @5V power supply;
Operating voltage
3.3V~5.4V
False alarm rate
≤1%
Quasi-test rate
98%
Minimum test range
20m
Ranging
4km (2.3x2.3 m car),large target of 10km;
Accuracy
±1m
Working frequency
1 Hz,5 Hz,emergency 10Hz;
Divergence angle
≤0.5mrad
Selection of the first and the last targets
Output interface
RS422
Storage
Storage life of 12 years
Environmental suitability
2orking temperature
-40°C~+ 55°C
Storage temperature
-50°C~ + 70°C

Interface mode

pin
symbol
function
pigment
explain
1
T+
Communication signal
red
Connect to pc RX +
2
T-
Communication signal
black
pc RX-
3
R-
Communication signal
yellow
Connect to pc machine TX-
4
R+
Communication signal
green
Connect to pc TX +
5
GND
Communication to
blue

6
GND
Power to
white

7
+5V/3A
general supply
orange

8
GND
Power to
brown


Rangefinder module Size



Application scenario

JIOPTICS laser ranging modules are widely used in military or civil scenes (unmanned aerial vehicles, photoelectric pods,thermal imaging equipment, etc.).In the most challenging environment,high performance and high reliability play an important role.A solid solution empowering your product to exceed its limits.
