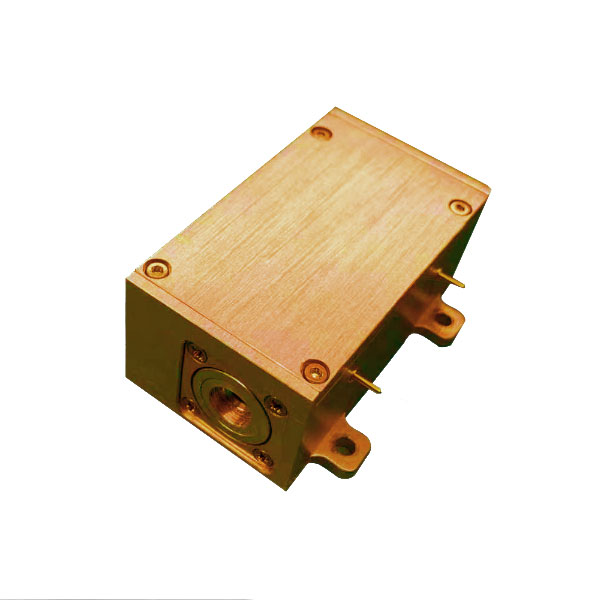

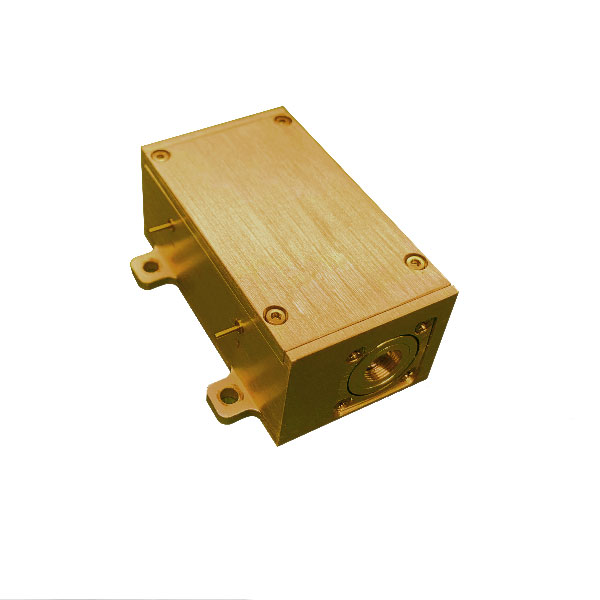

1535nm 2.5mJ 5Hz High Energy Er Glass Laser
Jiotics 1535nm 2.5mJ 5Hz High Energy Er Glass Laser, with large output energy, small volume, stable performance and other characteristics, is widely used in laser rangefinder, weather radar, remote sensing, 3D laser imaging and other fields.
Peak wavelength: 1535±5nm
Mono-pulse energy: 2/2.5mJ
Operating frequency: 5Hz
Beam divergence angle: 4mrad
Operating temperature: -45°C~+65°C
Send Inquiry
Product Description
1535nm 2.5mJ 5Hz High Energy Er Glass Laser OPTICAL AND ELECTRICAL SPECIFICATIONS
|
Wavelength |
1535 nm |
|
Pulse energy（Min./Typ.） |
2mJ / 2.5mJ |
|
Pulse width, Typ.(FWHM) |
11 ns |
|
Pulse repetition rate |
5Hz |
|
Pulse stability |
±5% |
|
Spots diameter |
0.5 mm |
|
Beam divergence angle |
4mrad |
|
Impact |
1500 G, 0.5 ms |
|
Vibration |
5-200 Hz/20 G |
|
Life span |
＞50 million shots |
|
Voltage |
5V |
|
Current |
60-70 A |
|
Pulse width |
4ms |
|
High peak power |
20kW |
|
Current |
60-70 A |
|
Dimension |
60×34×26 mm |
|
Weight |
120 gg |
|
Operating temperature |
-45 ℃~+65 ℃ |
|
Storage temperature |
-55 ℃~+85 ℃ |
Size
Jiotics 1535nm Q-Switched Lasers provides you with OEM/ODM services
