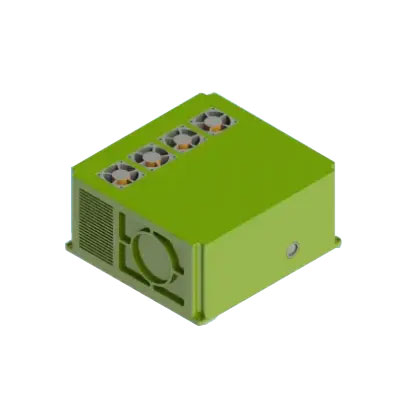

1570nm OPO Laser 80mJ 20Hz
  • 1570nm OPO Laser 80mJ 20Hz1570nm OPO Laser 80mJ 20Hz

1570nm OPO Laser 80mJ 20Hz

High-power electro-optical Q-switched 1570nm OPO Laser 80mJ 20Hz,with built-in drive circuit control system,pulse repetition rate of 1~20hz(adjustable),peak power≥80mJ,divergence angle≤6mrad,is an ideal light source for laser radar,laser ranging and photoelectric countermeasures.
Peak wavelength: 1570nm
Mono-pulse energy: 80mJ
Operating frequency: 1-20Hz(adjustable)
Operating temperature: -40°C~+60°C

Send Inquiry

Product Description

1570nm OPO Laser 80mJ 20Hz Technical parameter


Wavelength
1570nm
Peak power
≥10MW
Pulse width
≤10ns
Pulse Repetition Rate
1~20hz(adjustable)
Divergence angle
≤6mrad
Continuous operating time
≥5min(@20hz, under room temperature)
Operating Temperature
-40℃~60℃
Storage Temperature
-45℃~70℃
Vibration
It can be applied on vehicle/vessel-mounted situation
Dimension
≤208mm×220mm×80mm
Weight
≤3.6kg
Power supply
DC18V~32V
Power consumption Peak power consumption is no more than600W
Standby power consumption is no more than160W
Heat-dissipating method
Air-cooling

Pin definition

Table 1 “DC28V” definition
Pin. Definition
1~8
24V+
9~15
GND
Table 2  Communication interface
Pin. No
Definition    Note.
Note.
1
External trigger+
3.3V differential
2
External trigger-
3
RS422  RX+
Serial port communication
4
RS422  RX-
5
RS422  TX+
6 RS422  TX-
7 GND
Signal GND
8 External synchronization+
3.3V differential
9 External synchronization-
10
NC


OEM/ODM 1570nm lasers

Jioptics can customize various energy of 1570nm OPO laser for you

size
