15km 1570nm OPO Laser rangefinder module

The STA-Z1520X Long ranging laser rangefinder module, developed by the Jioptics team, employs an eye-safe 1570nm OPO laser assembly. It features excellent atmospheric penetration, low sensitivity to interference from sunlight, dust, and other ambient light sources, and is capable of ultra-long-distance measurement under complex climatic conditions, with high covertness that makes it difficult to detect. Range performance:15000m (2.3x2.3m NATO Target),20000m (Max Ranging) Ranging accuracy ± 2m Measurement accuracy ≥ 98% Weight ≤ 1.2kg

Send Inquiry

Product Description

Application field

Airborne/drone pod

Car mounted gimbal

Coastal protection

Anti drone distance measurement

Integration of security pan tilt and other systems

Product performance index for Z1520X Eye-safe LRF Module

Item	Technical parameter	Instruction
Model	STA-Z1520X
Working wavelength	1570nm
Pulse width	15ns ± 5ns
Eye safety	Class 1 (IEC 60825-1)
Receiving Aperture	Φ60mm
Emission aperture	Φ30mm
Ranging capability	200m-15km
Ranging range	≥25000m	Max Range
	≥20000m	Big target, Reflectivity: 0.6, observer visibility 25 km
	≥15000m	NATO target
	≥9000m	Human target
	≥5000m	DJI Phantom 4 UAV target
Mini Range	200m
Multi-target detection	Up to 3 target
Ranging accuracy	±2m	RMS
Ranging frequency	1~10Hz adjustable
Accuracy rate	≥98%
False alarm rate	1%
Divergence angle	≤0.7mrad
Communication Interface	RS422	Baud rate 115200bps
Voltage	DC 18-30V
Power Consumption	Standby≤20W	Power Consumption
	Peak≤150W
	Average≤70W
Preheating time	≤ 1 minute	At room temperature
Working temperature	-40℃～+65℃
Storage temperature	-55℃～+70℃
Cooling method	Air cooling
Size	≤181mm×67mm×115mm
Weight	≤1.2Kg
Main Function	First and last target ranging; Multi-target ranging; Distance selectivity;
More function	a) Equipped with self checking function;b) Target distance measurement;c) Support software upgrades and parameter updates through communication interfaces.

Notes:

1) NATO target size 2.3m × 2.3m, humanoid target size 0.5m × 1.7m, unmanned aircraft target size 0.3m × 0.3m, reflectivity 30%; Visibility ≥ 25km, Typical target reflectivity of 80%.

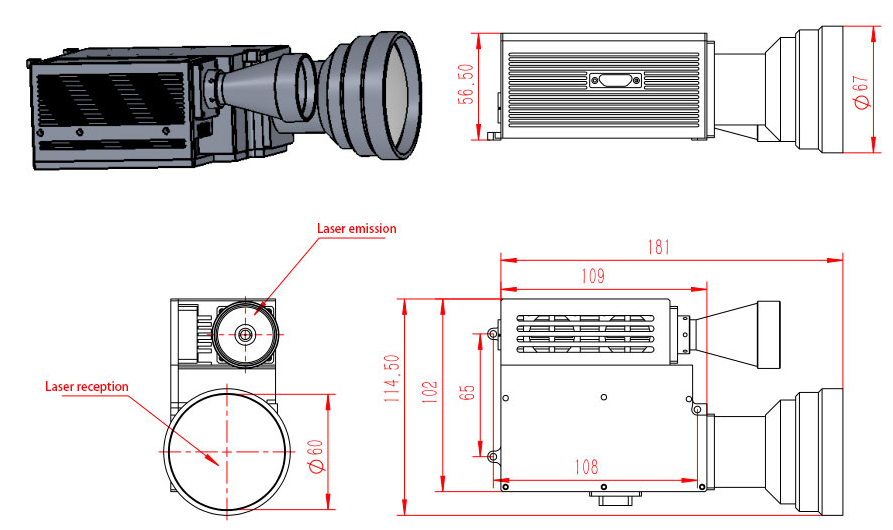

Mechanical structure

Note：Product size can be customized according to requirements.

Interface Definition

Y50X-12119TKZ connector interface definition:

PIN	Definition
1、2	24V+
9、10	GND
4	RS422_RX+
5	RS422_RX-
12	RS422_TX+
13	RS422_TX-
6	RS422_GND
7	External synchronous input+
15	External synchronous input-
8	Case Ground
3、11	Power switch terminal
14、16、17、18、19	/
