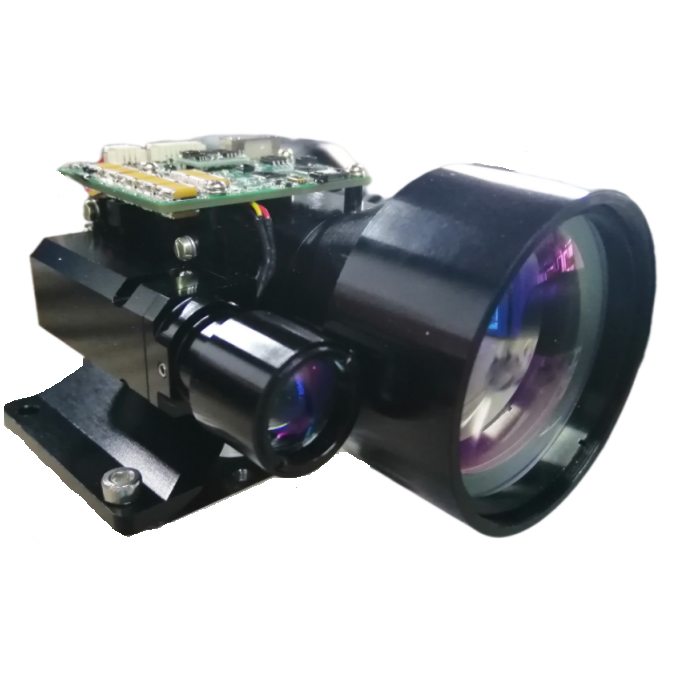

The JIOPTICS 1535nm STA1520 15km Laser Rangefinder is specially designed for OEM integration and can provide accurate measurement for fire control systems, aircraft/UAV, tank/UGA, ships, border surveillance systems and other applications.

Maximum range ≥ 20000m
Range 2.3×2.3m target size ≥15000m
Distance measuring accuracy ± 2m
Measuring accuracy ≥ 98%
Weight ≤ 413g

Model:STA0610

Send Inquiry

Product Description


15km Laser Rangefinder Technical parameter

Item
Technical parameter
Working wavelength
1.54μm±0.02μm
Range scoe
50m~15000m
Object
Visibility is not less than 20km under clear vision conditions, humidity is not greater than 50% (30°C), and the distance to vehicles (2.3m×2.3m target) is ≥15000m
Visibility is not less than 28km, humidity is not more than 50% (30°C), and for targets with diffuse reflectance not less than 30% (4m×6m target), the ranging distance is ≥20000m
Main function
Single ranging and continuous ranging
Three-target ranging and front and rear target indication
Self-test function (including: current APD temperature, high voltage value, internal voltage, blind zone value)
Standby wake-up function can be realized by modifying to TTL interface
Ranging accuracy
±2m
Continuous ranging frequency
0.5Hz-10Hz
Accuracy rate
≥98%
Effective Clear Aperture
50mm
Number of laser pulses fired between mean failure (MNBF)
≥1×106 times
Voltage
DC5V
Working power consumption
≤2W(@1hz)
Standby power consumption
≤0.5W
Size
120mm×85mm×58.5mm
Weight
<413g
Cooling method
Conduction cooling
Working temperature
-40℃~+65℃
Storage temperature
-55℃~+70℃

Application scenario

JIOPTICS laser ranging modules are widely used in military or civil scenes (unmanned aerial vehicles, photoelectric pods,thermal imaging equipment, etc.).In the most challenging environment,high performance and high reliability play an important role.A solid solution empowering your product to exceed its limits.

Electrical Interface

Electrical connector model: J30J; corresponding plugs and cables shall be provided by Party B. The detailed definition of the electrical interface is as follows:

Table 1 Interface definition

Pin
Definition
Function
Remark
1
GND
Land

2
GND
Land

3
GND
Land

4
VCC 5V
5V input positive

5
VCC 5V
5V input positive

6
RS422  RX+
Serial receiving+
Host computer to Laser rangefinder
7
RS422  RX-
Serial port receiving-
Host computer to Laser rangefinder
8
RS422 TX-
Serial send-
Laser rangefinder to Host computer
9
RS422 TX+
Serial send+
Laser rangefinder to Host computer

Structure size



Communication protocol

The data transmission between the rangefinder and the host computer includes the following contents:
Control commands: including starting ranging, continuous ranging, single ranging, query commands, etc.
Loopback data: including distance information, ambient temperature, range finder status, etc. The data exchange between the distance measuring machine and the host computer adopts 422 bus. The specific software communication protocol is as follows:
Communication format: RS422 communication, baud rate 115200bps;
Data format: 8-bit data, one start bit, one stop bit, no parity check, the data consists of header byte, command part, data length, parameter part, check byte;
Communication mode: the main control and the distance measuring machine adopt the master-slave communication mode, the master control sends control commands to the distance measuring machine, and the distance measuring machine receives and executes the instructions. In the ranging state, the rangefinder sends back the data and status of the rangefinder to the upper computer according to the ranging cycle. The communication format and command content are shown in the following table.

Master send

The sending message format is as follows:

STX0
CMD
LEN
DATA1H
DATA1L
CHK

Table 2 Description of sending message format

Number
Name
Illustration
Code
Remark
1
STX0
Message start flag
55(H)

2
CMD
Command word
See table 3

3
LEN
Data length
The number of all bytes except the start sign, command word and checksum

4
DATAH
Parameter


5
DATAL


6
CHK
XOR check
In addition to the parity byte, other bytes are exclusive or
