1km Laser Range Finder Module

The LRF module has a single measurement mode only one measurement, continuous measurement mode, according to the selected sampling frequency return continuous results. The measurement range is up to 1200M The sampling frequency is 1Hz Measuring accuracy (0.5m) TTL Serial communication UART (BautRate=9600) All instructions are in hexadecimal format

JIOPTICS® Mini laser ranging module provides reliable range feedback and TTL serial output. Suitable for custom product integration, especially for thermal imaging, night vision, EVA, digital scope and other product integration.Welcome to buy 1km Laser Range Finder Module from us.

Send Inquiry    PDF DownLoad

Product Description

JIOPTICS® 1km Laser Range Finder Module Introduction

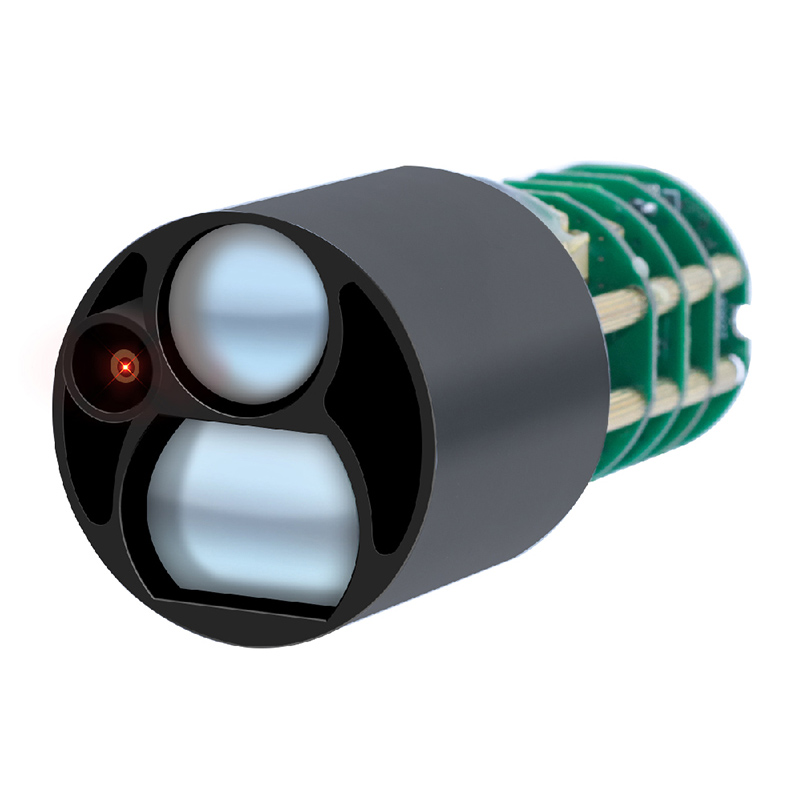

UX12JL outdoor Long-Range laser rangefinder module, 905nm band laser, measuring range up to 1200 meters, metal structure design good impact resistance and low power consumption, stable performance, up to military standards. This compact, secure, highly integrated LRF module can be used in multifunctional thermal imaging, ranging scopes and other systems.

Product Parameter (Specification)

Model Name
Measuring Distance
Large target: 5~1200m, Small target: 5~700m
0.1 mm
1 Hz
905 nm
5 mrad
Communication Interface
Standard: TTL (UART)
Option: USB (TTL-USB converter)
Communication Signal
TTL output
Input Voltage
3 ~ 5 V
Operating Current
80mA ~ 150mA
Laser Safety
Class 1
Power Consumption
<1 mW
Operating Temperature
-20 ~ 50 °C

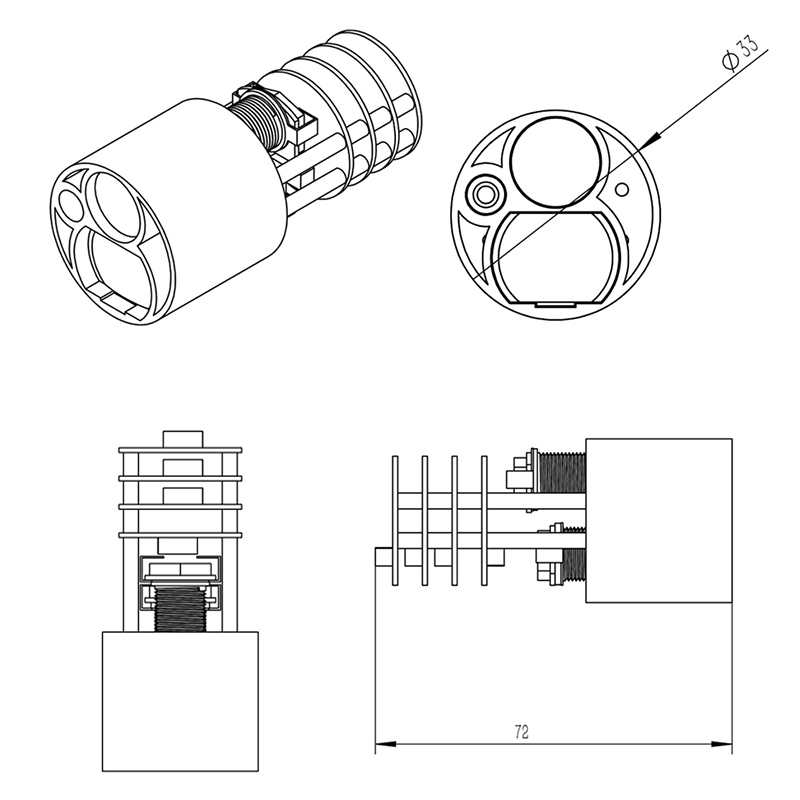

58.61 x 30.2 x 32.6 mm
≤38 g

Product Feature And Application

UX12L laser ranging module for target measurement performance
Typical targets (80% reflectance) measurement range ≥2.5km
Forest (10% reflectivity) measurement range ≥1.2km
Small target measurement range ≥0.6km

Product Details
