20km Rangefinder Module

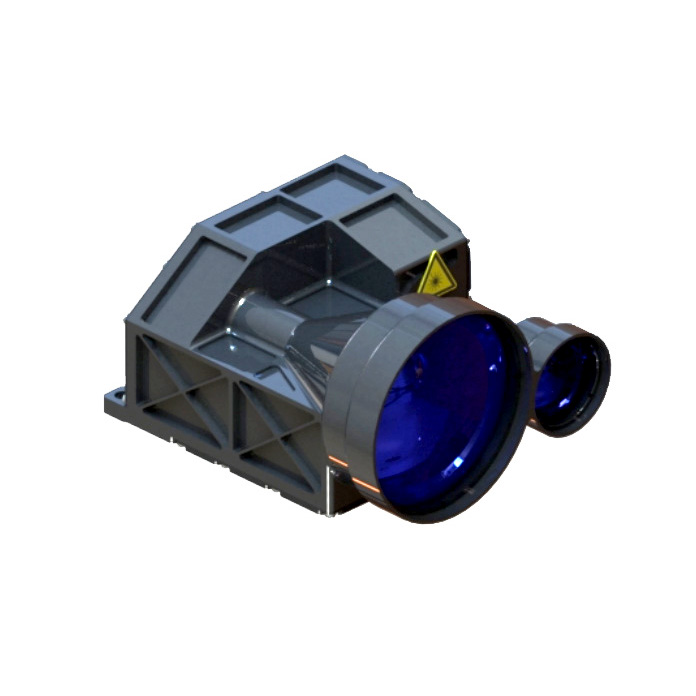

STA-D2025Y 20km Rangefinder Module adopts the 1535nm erbium glass laser module independently developed by Jioptics, which has the characteristics of low power consumption, compact structure, high precision, long measuring distance and human eye safety.

Send Inquiry

Product Description

Maximum measuring range: 20000m (vehicle) 23000 m (White building) 25000(Typical target)
Ranging accuracy ±3m
Measurement accuracy ≥ 98%
Weight ≤640g

20km Rangefinder Module features

1.Integrated design of the whole structure, shock and vibration resistance, the circuit adopts sub-warehouse sealing design, power isolation design, strong electromagnetic compatibility, high reliability, and strong environmental adaptability;
2.The light path is fully sealed, dustproof and waterproof steam design, the whole process of ultra-clean environment production, can be applied to complex environment, low requirements for the installation environment, strong adaptability;
3.The internal interface of the circuit adopts the welding wire direct connection process, which is firm and reliable, which can avoid the short circuit or poor contact caused by the loosening, oxidation and water vapor of the connector, and improve the reliability and life of the product.

Product performance index FOR STA-D2025X Laser Rangefinder Module

Item	Index
Model	STA-D2025Y
Operating wavelength	1535nm ±10nm
Ranging range	300m-25000m
Ranging capability	25000m	Typical target,visibility ≥ 25km
	23000m	Large target, visibility ≥ 25km
	20000m	Visibility ≥ 25km, target with 0.3 reflectivity for 2.3m × 4.6m vehicles
Communication Interface	RS422
Humidity	≤ 80%
Ranging accuracy	±3m
Accuracy rate	≥98%
Range resolution	≤50m
Divergence angle	≤0.5mrad
Ranging frequency	1 time,1hz,5hz
Size	≤144mm×108mm×75mm
Voltage	22V～34V
Working power consumption	Average power consumption: ≤ 10W
Standby power consumption	≤3W
Working temperature	-40℃～+60℃
Storage temperature	-55℃～+70℃
Weight	≤640g
