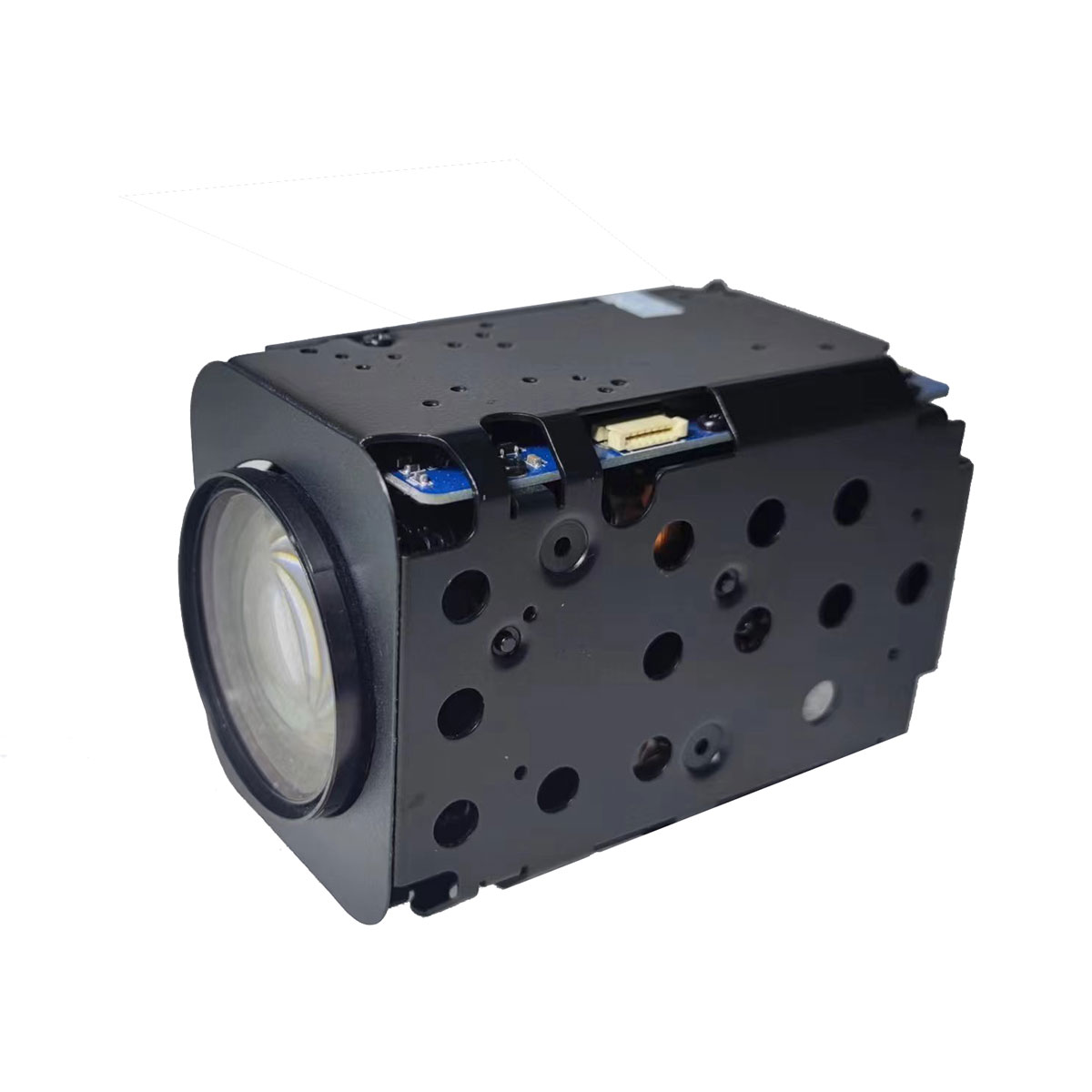

2MP 30X HD Zoom Camera Digital Starlight Module

Product Description

● Fast startup
● Ultra-low latency 30ms (60 fps mode)
● 30x optical zoom, 32x digital zoom
● Same lens as Sony7520 movement;
● Comparable size to Sony7520 movement;
● 30Pin Lvds connector, Pin to Pin Sony 7520 connector;
● 1080p/720p (50/25fps, 60fps/30fps)
● 4.3mm-129mm
● Digital Noise Reduction (2 D+ 3D)
● Privacy mask function
● Strong light suppression
● Motion Detection
● Fog Transparency
● Support VISCA, PeIco-D/P protocols
● Video Output: LVDS, EX-SDI (Overseas), CVBS

Functional features

● Support the power-off state memory function
● Support timing and event graphics and other functions
● Support for mobile / cross-border detection, area intrusion and other functions
● Support three-code flow technology, each code flow can be configured independently
● Supports 500 preset bits, 8 cruise scanning
● Supports timing task preset points, (pattern, cruise, left and right) scanning
● Support 1 audio input / output and 1 alarm input / output
● Support backlight compensation, strong light suppression, automatic electronic shutter, 3D noise reduction and other functions

Specification parameters

model	STA-3023-D
	Movement parameters
Sensor type	1/2.8" Panasonic CMOS
Effective pixel	235 million
minimal illumination	Color: 0.02 Lux; black and white: 0.001 Lux
noise-signal ratio	＞50dB
Day and night switching mode	Automatic ICR filter switch, automatic, color, black and white
	Lens parameters
focal distance	And f =4.3-129mm ，30 x optical changes and 32 x numbers
iris diaphragm	Maximum aperture: F 1.6 to F 4.7
shutter	1/25 sec to 1/30,000 sec; slow shutter support
Horizontal field of view angle	65.1-2.34 degree (wide Angle-looking far)
	image parameter
resolution ratio	50/25fps (1920 × 1080,1280 × 720); 60/30fps (1920 × 1080,1280 × 720)；
Focus mode	Automatic focus / manual focus / one-click automatic focus
Strong light inhibition	support
Privacy block	Support 24 regions
Mobile detection	Support 3 regions
3D & 2D for noise reduction	support
Through the fog	support
Baud rate	2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200
access protocol	VISCA / PeIco-D / PelcoP / Update
language	English / simplified Chinese / Traditional Chinese / Japanese
standard	NTSC / PAL
	interface parameters
video monitor 525 vidicon video out	LVDS, EX-SDI,CVBS
	general requirements
Operating temperature and humidity	-30℃~60℃, humidity less than 90% (no condensation)
power suppl	DC 9V-15V ，500MA
size	885060mm
weight	240g

If there is any change in product design and specifications, real-time update cannot be guaranteed. Specification parameters and pictures are for reference only, and the details are subject to the physical object.

Overall dimension
