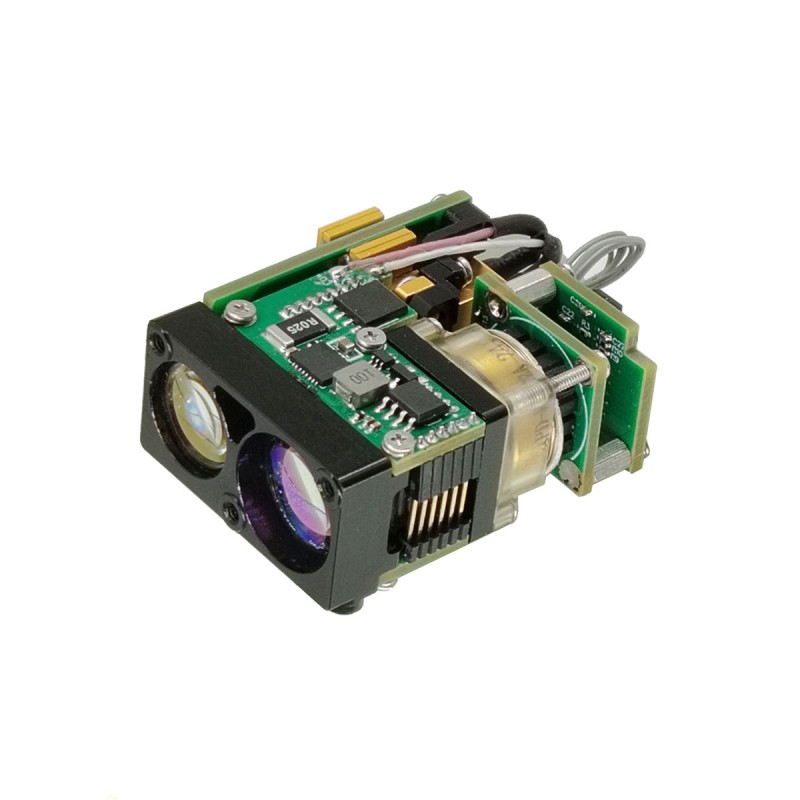

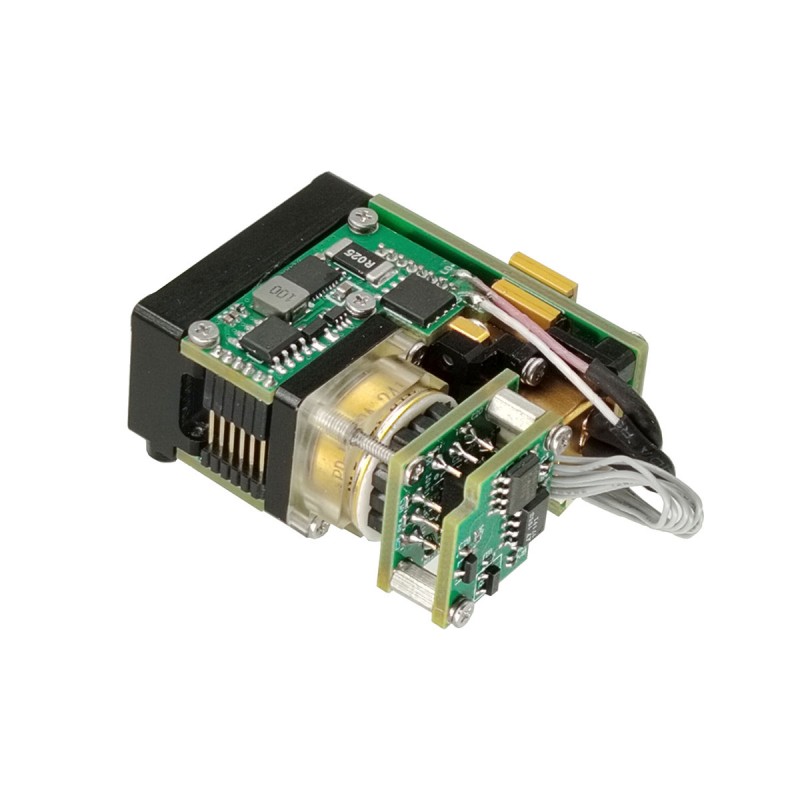

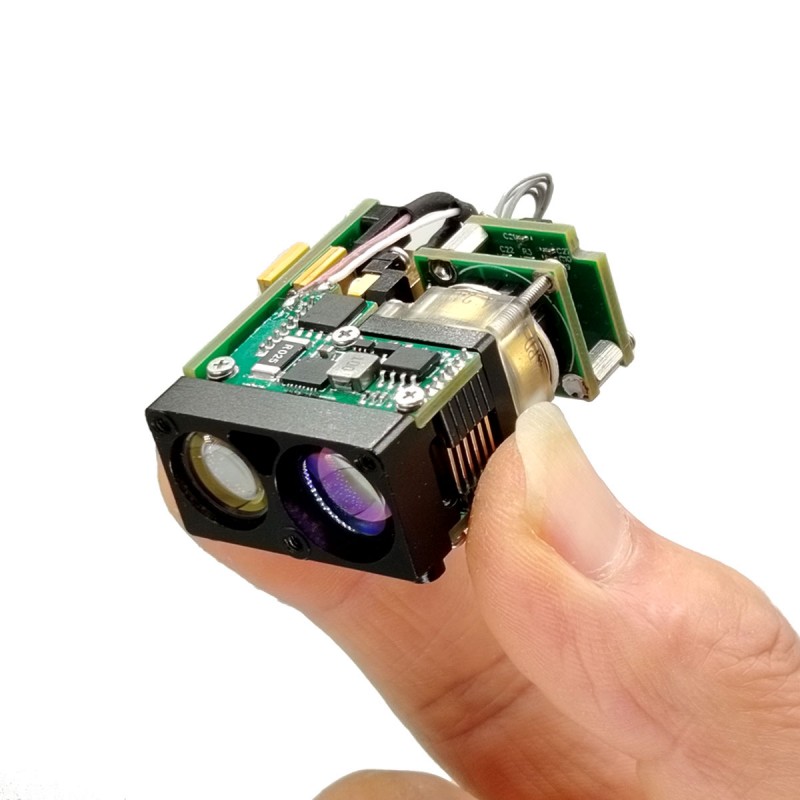

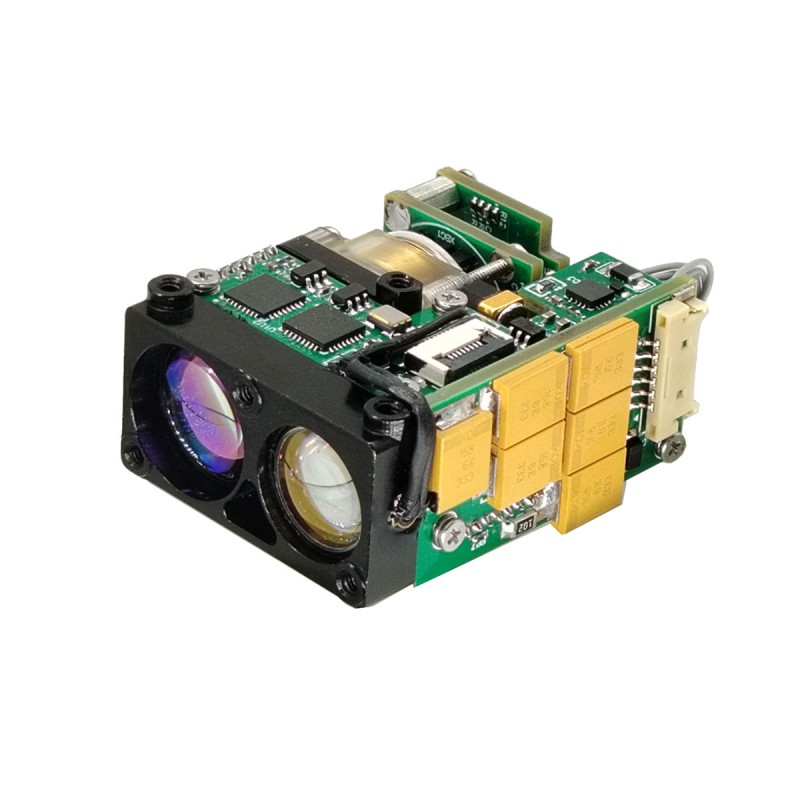

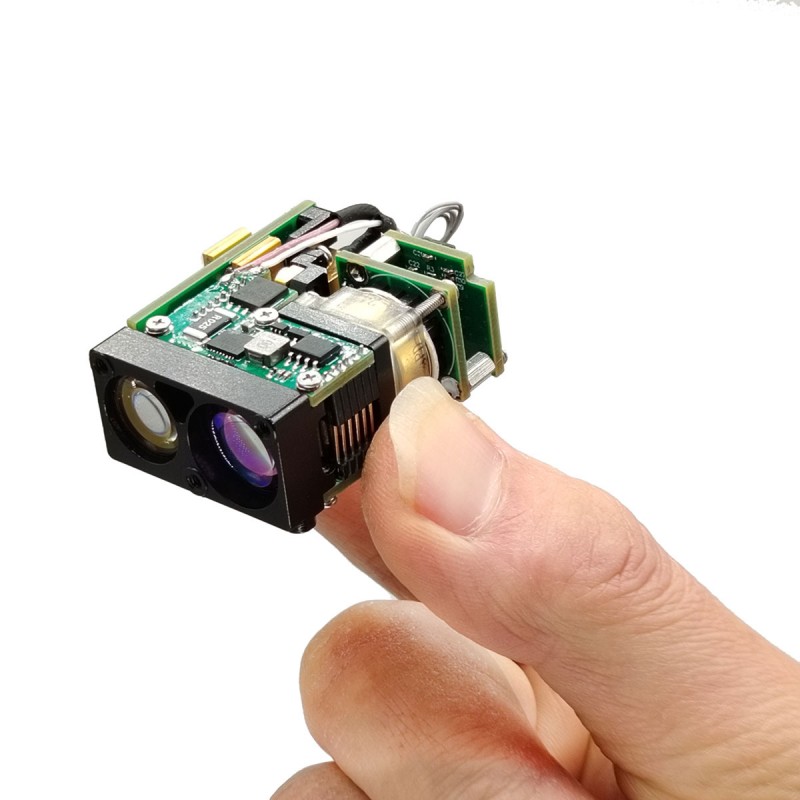

3km Eye-safe Laser Rangefinder Module
STA-B30X is a human eye-safe laser distance measurement module, which can detect the target distance and transmit the measured distance to the upper computer through serial communication. Visibility ≥ 12km, target reflectivity ≥ 0.3, humidity ≤ 80%, the vehicle (2.3m × 2.3m target) ranging distance ≥ 3km.
Send Inquiry
Product Description
Main functions
(1) Single ranging and continuous ranging;
(2) Responding to laser ranging commands, and can stop ranging at any time according to the stop command;
(3) Output distance data and status information once per pulse during distance measurement;
(4) It can report the cumulative number of transmitted laser pulses (no loss of power down);
(5) Distance selection, front and rear target indication;
(6) Self-test function.
(2) Responding to laser ranging commands, and can stop ranging at any time according to the stop command;
(3) Output distance data and status information once per pulse during distance measurement;
(4) It can report the cumulative number of transmitted laser pulses (no loss of power down);
(5) Distance selection, front and rear target indication;
(6) Self-test function.
Product performance index
| Item | Technical parameter | Instruction |
| Model | STA-B30X | |
| Working wavelength | 1535±5nm | |
| Eye safety | Class 1 (IEC 60825-1) | |
| Receiving Aperture | Φ13mm | |
| Emission aperture | Φ13mm | |
| Ranging capability | 15-5000m | |
| Ranging range | ≥5000m | Large Building targets, Reflectivity: 0.6, observer visibility 20 km |
| ≥3000m | NATO target | |
| ≥2000m | Human target | |
| ≥600m | UAV target | |
| Mini Range | 15m |
|
| Multi-target detection | Up to 3 target |
|
| Ranging accuracy | ±1m | 3δ |
| Ranging frequency | 1~10Hz adjustable |
|
| Accuracy rate | ≥98% |
|
| False alarm rate | 1% |
|
| Divergence angle | ≤0.6mrad |
|
| Communication Interface | TTL | RS422/RS232 Interface can be customised |
| Voltage | DC5~16V |
|
| Power consumption | ≤1.2W(@1hz) | Working power |
| ≤5W | Peak power | |
| Laser optical axis stability | ≤0.05mrad |
|
| Parallel error | ≤0.3mrad | Parallelism error of optical axis to mounting reference |
| Mechanical Shock | 75g, 1ms |
|
| Working temperature | -40℃～+70℃ |
|
| Storage temperature | -55℃～+75℃ |
|
| Reliability | MTBF ≥ 1500h |
|
| Size | ≤43×31×16mm |
|
| Weight | ≤44g |
|
| Main Function | First and last target ranging, Multi-target ranging, Distance selectivity | |
Notes:
1) NATO target size 2.3 m × 2.3 m; Human target size 0.5 m × 1.7 m; UAV target size 0.2 m × 0.3
m; Reflectivity 30%, Humidity≤80%,observer visibility≥ 12km

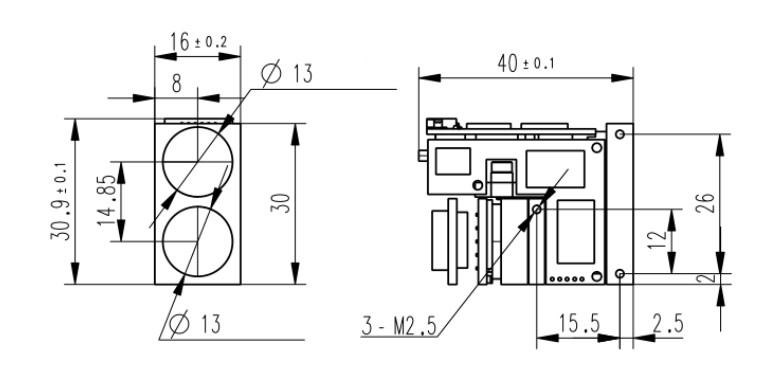

Structure installation interface
Electrical interface requirements
Communication interface: UART (TTL_3.3 V), 115200 bps, 1 start bit, 8 data bits, 1 stop no, no parity bit;
Table 1 Core definition
| Pin | Definition | Line color | Notes |
| 1 | Power supply + | Red | 4.5-16V |
| 2 | Power supply - | Black | GND |
| 3 | POWER_ON | White | Power on control TTL_3.3V level, module on (>2.7V), module off (<0.3V) |
| 4 | UART_TX | Yellow | Serial port sender |
| 5 | UART_RX | Green | Serial port receiver |
| 6 | GND | Black | Serial port ground |
OEM/ODM ranging modules and custom solutions
The B0815X is designed for system integrators looking for a convenient, powerful and compact laser ranging solution. It provides reliable performance in a wide range of applications.
It is very small, ultra-light, has low power consumption and can be measured over a long distance. It is suitable for handheld devices (thermal imaging), weapon mounting applications, portable systems and lightweight sensor suites and unmanned aerial vehicles or UGVs.
It is very small, ultra-light, has low power consumption and can be measured over a long distance. It is suitable for handheld devices (thermal imaging), weapon mounting applications, portable systems and lightweight sensor suites and unmanned aerial vehicles or UGVs.
