Maximum measuring range: 3000m (2.3x2.3m vehicle) 6000 m (Typical large target)
Ranging accuracy ± 1m
Measurement accuracy ≥ 98%
Weight ≤ 58g

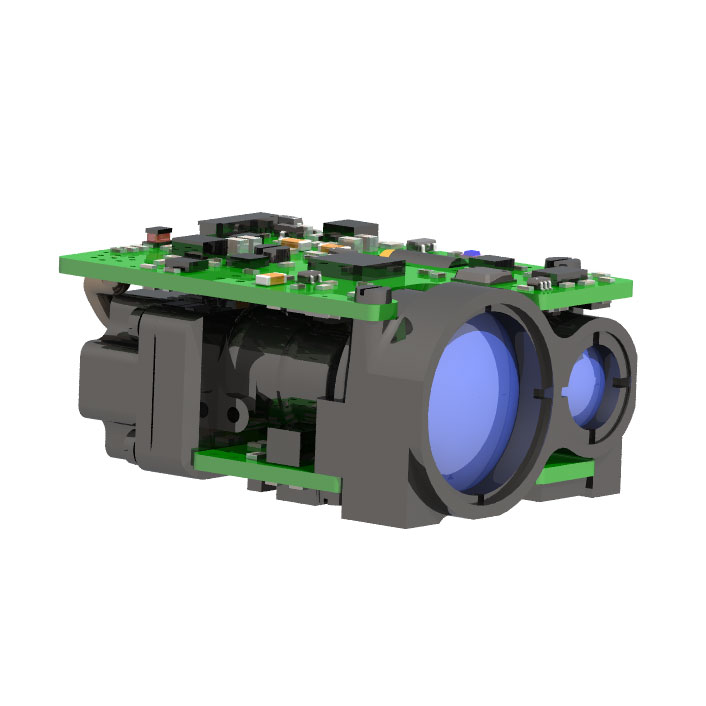

3km Range Finder Module features
1. Adopting self-developed 1535nm erbium glass laser, integrated structural design and multi-point sealing installation method on the front end face, strong anti misalignment ability, high durability, long working life, and eye safety;
2. Small field of view, non thermal receiving optical design technology, with good light noise suppression ability and wide temperature performance.
3. The internal interface of the circuit adopts a welding wire direct connection process, which is firm and reliable, and can avoid short circuits or poor contact caused by loose connectors, oxidation, and water vapor, improving product reliability and service life.
3km Range Finder Module performance index
Item
|
Index
|
Model
|
STA-D0306X
|
Operating wavelength
|
1535nm ±10nm
|
Ranging range
|
15-6000m
|
Ranging capability
|
6000m
|
Typical Large Target, visibility ≥ 16km
|
3000m
|
Visibility ≥ 8km, target with 0.3 reflectivity for 2.3m × 2.3m vehicles
|
Communication Interface
|
RS422/TTL
|
Humidity
|
≤ 60%
|
Ranging accuracy
|
±1m
|
Accuracy rate
|
≥98%
|
Divergence angle
|
≤0.5mrad
|
Ranging frequency
|
1 time,1hz,5hz,10hz
|
Size
|
≤50mm×36.5mm×24mm
|
Voltage
|
4.8V~8.5V / 10V~14V(2 options 1)
|
Working power consumption
|
Average power consumption: ≤ 2W
|
Standby power consumption
|
≤0.5W
|
Working temperature
|
-40℃~+60℃
|
Storage temperature
|
-55℃~+70℃
|
Weight
|
≤58g
|
Structure installation interface

3km Range Finder Module function
● Laser ranging function;
● Power on and temperature collection function;
● Distance gating function;
● First and last target ranging function;
● Self-check function;
Electrical Interface
The cross linking test between the upper computer end and the DF52-10P-0.8C connector of the rangefinder end is realized through the DF52-10S-0.8H connector. The pin definition of the power supply and communication port of the rangefinder end is shown in the following table (receiving and sending relative to the rangefinder), and the position of the connector connection pin 1 is shown in the figure below.
Pin definition of power supply and communication port at rangefinder end
Pin
|
Label
|
Definition of electrical characteristics
|
Notes
|
P-1
|
VIN+
|
Positive pole of input power supply
|
LRF Power supply
|
P-2
|
VIN-
|
Input power negative pole
|
P-3
|
COM
|
Input power negative pole
|
P-4
|
COM
|
P-5
|
RS422_TXD+
|
Signal output port
|
Range finder to upper computer
|
P-6
|
RS422_TXD-
|
P-7
|
RS422_TXD-
|
Signal input port
|
Upper computer to rangefinder
|
P-8
|
RS422_TXD+
|
P-9
|
TTL_RXD
|
Signal input port
|
3.3V TTL
|
P-10
|
TTL_TXD
|
Signal output port
|
Position of pin 1 of connector
