7km Laser Rangefinder Module

The miniature laser rangefinder module is a military pulse laser rangefinder designed for application scenarios such as aircraft, unmanned aerial vehicles, tanks, and aerial guns. It has small size, light weight, low power consumption, stable performance, long measurement distance, and long service life, Human eye safety and other advantages, it is an important technical equipment to improve product aiming accuracy.

The visibility is not less than 5km, the diffuse reflectance is ≥0.3, and the humidity is ≤80%. The ranging distance for vehicles (2.3m×2.3m target) is ≥3km; the ranging distance for people (1.75m×0.75m target) is ≥1.5km; the ranging distance for large targets (buildings) is ≥5km.

Model:M0307X

Send Inquiry

Product Description

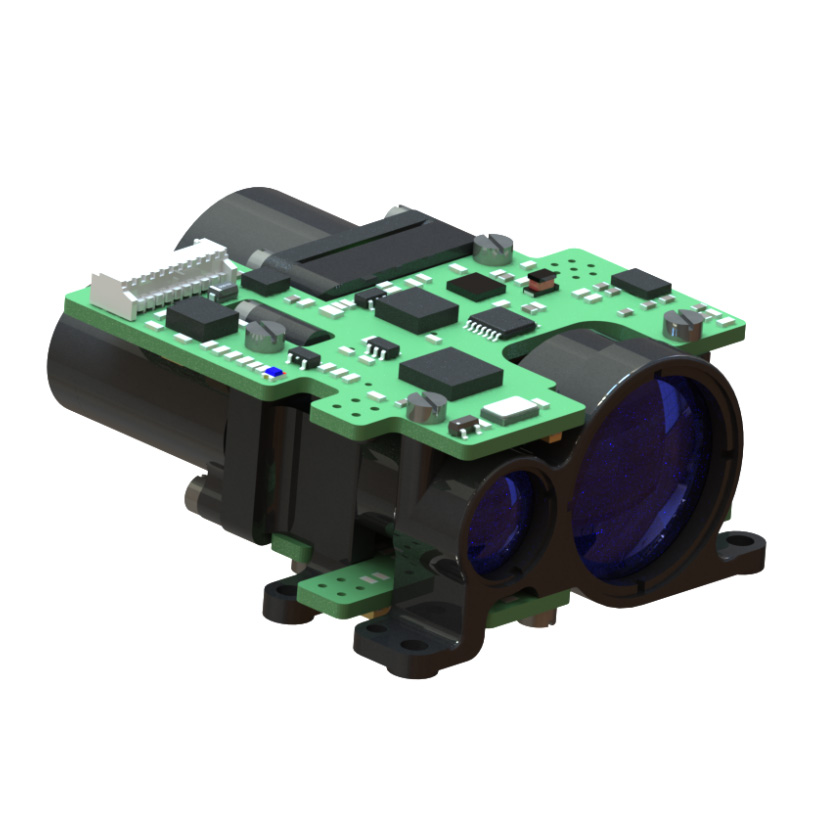

JIOPTICS® 7km Laser Rangefinder module

Technical parameter

Wavelength	1535nm±5nm
Action distance	The visibility is not less than 5km, the diffuse reflectance is ≥0.3, and the humidity is ≤80%. The ranging distance for vehicles (2.3m×2.3m target) is ≥3km; the ranging distance for people (1.75m×0.75m target) is ≥1.5km; the ranging distance for large targets (buildings) is ≥5km.
Main function	Single ranging and continuous ranging
	Distance gating, front and rear target indication
	Self-check function
Laser divergence angle	≤0.5mrad
Continuous ranging frequency	1~10Hz adjustable
Ranging accuracy	≤±2m（RMS）
Operating power	≤2W(@1hz)
Accuracy rate	≥98%
Minimum range	≤20m
Ranging resolution	≤30m (multi-target)
Voltage	DC9V～16V; (can be customized)
Weight	≤55g	≤65g
Size	≤52mm×26mm×42mm	≤67mm×49mm×31mm
Power	consumption ≤ 1.5W (1Hz operation), peak power consumption ≤ 5W
Operating temperature	40℃～+65℃
Storage temperature	55℃～+70℃
Communication Interface	RS422，115200bps

External interface

Line number	Definition	Line color	Remark
1	RS422 TX+	Brown	RS422 send+
2	RS422 TX-Blue	Blue	RS422 send-
3	RS422 RX-Yellow	Yellow	RS422 receive-
4	RS422 RX+	Purple	RS422 receive+
5	GND	White	Communication interface
6	+12V	Red	Power
7	GND	Blank	Power supply ground
8	reserved	Blank	reserved

Size

OEM/ODM ranging modules and custom solutions

The M0307X is designed for system integrators looking for a convenient, powerful and compact laser ranging solution. It provides reliable performance in a wide range of applications.

It is very small, ultra-light, has low power consumption and can be measured over a long distance. It is suitable for handheld devices (thermal imaging), weapon mounting applications, portable systems and lightweight sensor suites and unmanned aerial vehicles or UGVs.
