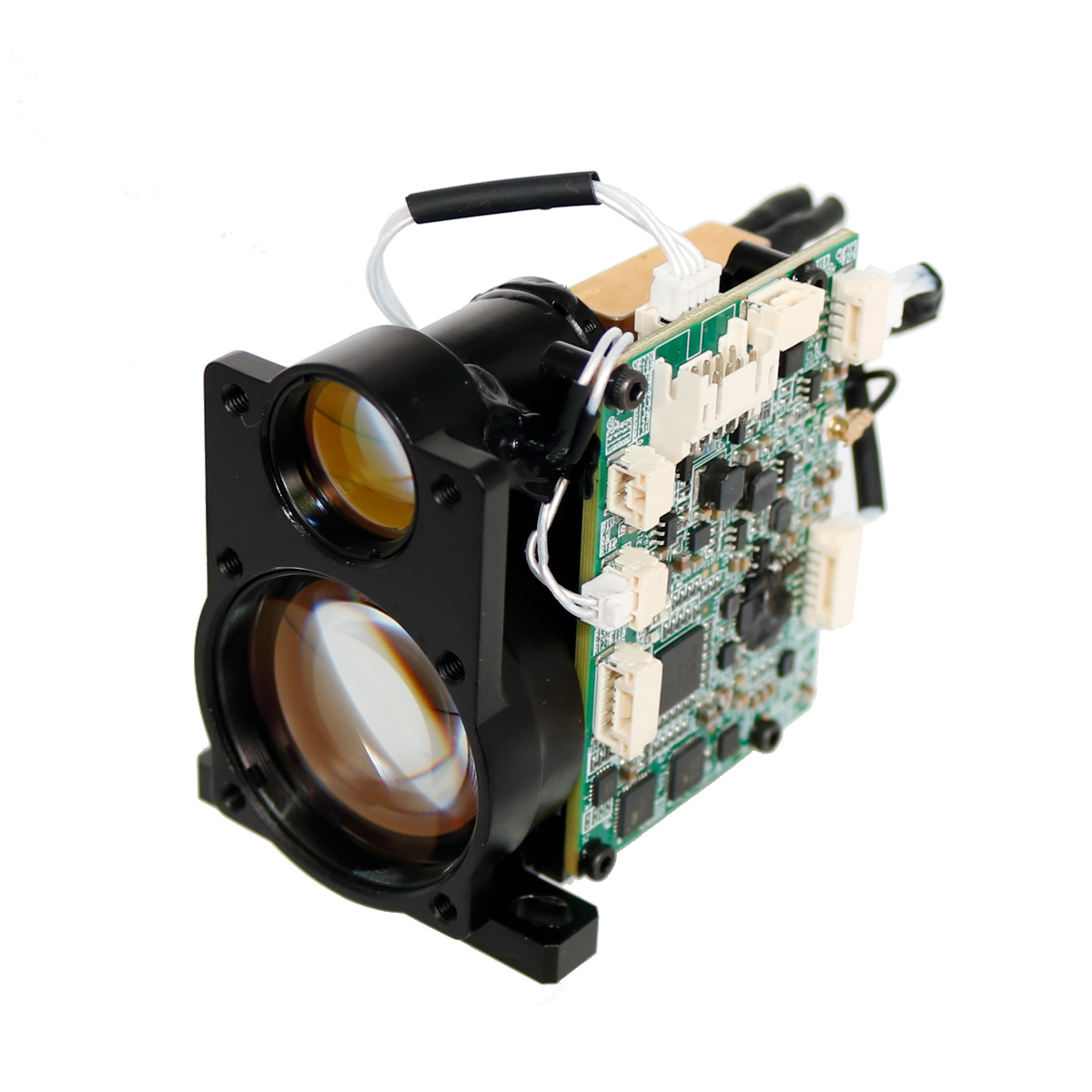

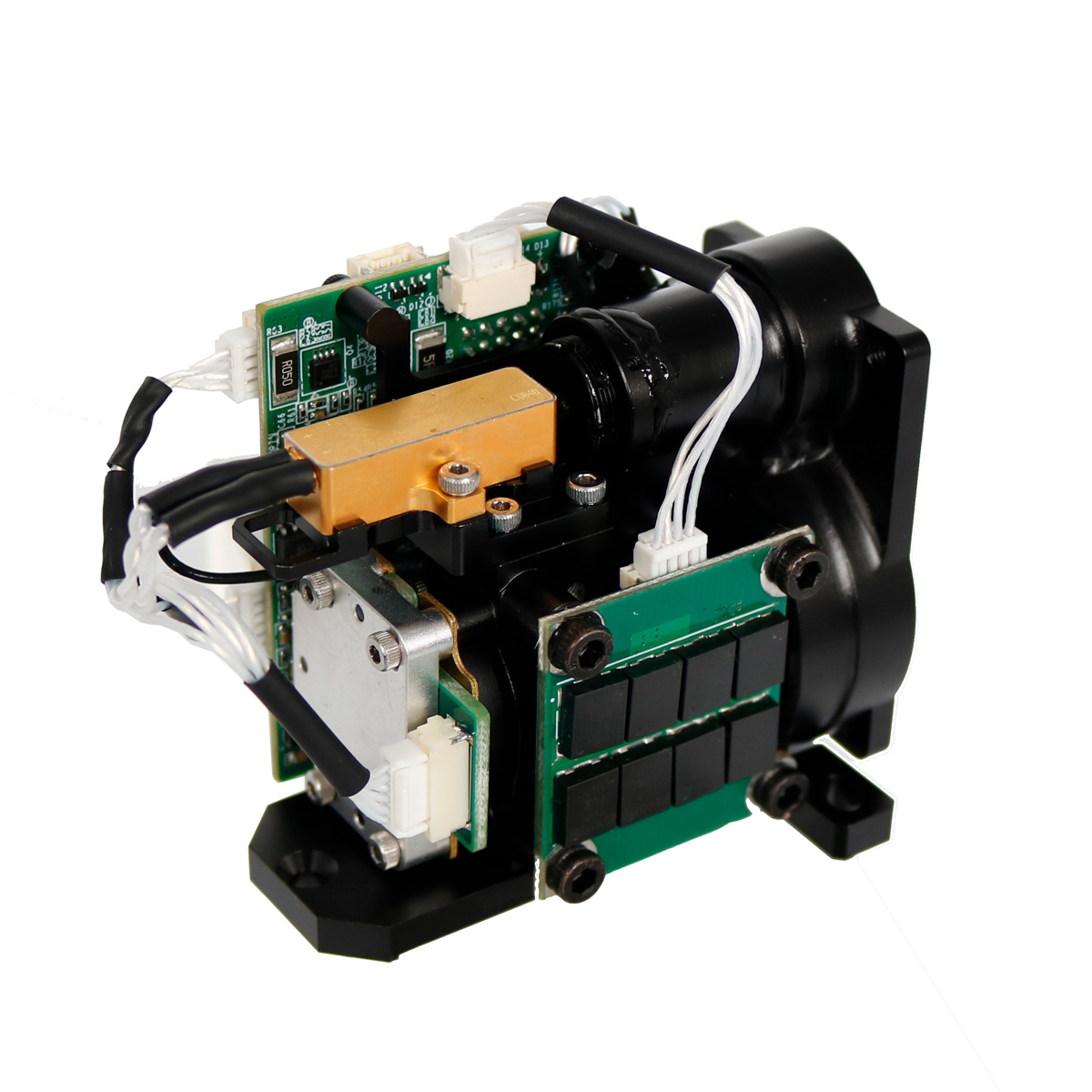

7km Rangefinder Moudle
The STA-M0710X 7km Rangefinder Moudle adopts the 1535nm eye-safe erbium glass laser module independently developed by Jioptics, which has the characteristics of low power consumption, small size, high precision and eye safety.
Send Inquiry
Product Description
Maximum measuring range: 7000m (2.3x2.3m vehicle) 7000 m (Max range)
Ranging accuracy ± 1m
Measurement accuracy ≥ 98%
Weight ≤ 130g
Ranging accuracy ± 1m
Measurement accuracy ≥ 98%
Weight ≤ 130g
7km Rangefinder Moudle HIGHLIGHTS
●Lightweight with only 130 g
●Powerful measuring up to 10 km
●Withstands harshest weapon shocks up to 1600g
●Extremely low power consumption
●High measurement accuracy of 1 m
●Wide operational temperature range from –40° C to +65° C
●Powerful measuring up to 10 km
●Withstands harshest weapon shocks up to 1600g
●Extremely low power consumption
●High measurement accuracy of 1 m
●Wide operational temperature range from –40° C to +65° C
APPLICATIONS
●Weapon mounted devices
●Handheld devices
●Observation and surveillance systems
●Sensor suites for UAV and UGV
●Handheld devices
●Observation and surveillance systems
●Sensor suites for UAV and UGV
Product performance index FOR STA-D0407X Laser Rangefinder Module
| PERFORMANCE | |
| Maximum range | 10000m |
|
Range performance on beamfilling target reflectivity: 60 %, observer visibility 25 km |
8000m |
|
Range performance on 2.3 × 2.3 m target size reflectivity: 30 %, observer visibility 25 km |
7000m |
|
Range performance on 1 × 1 m target size reflectivity: 10 %, observer visibility 25 km |
6000m |
| Minimum range | 20m |
| Range accuracy | ±1m |
| Repetition rates | 1-10Hz |
| Multiple target detection | 3 targets |
| Wavelength | 1535nm |
| Divergence | 0.5mrad |
| Eye safety per IEC 60825-1 | Laser Class 1 |
| ENVIRONMENTAL CHARACTERISTICS | |
| Operating temperature range | -40℃~+65℃ |
| Storage temperature range | -50℃~+75℃ |
| Shock (half sine) at 0.6 ms in x-, y- and z-direction | 1000G |
| PHYSICAL CHARACTERISTICS | |
| Weight | ≤130g |
| Dimensions (length/width/height) | ≤87mm*58mm*43mm |
| INTERFACES | |
| Communication interface | UART (3.3 V LVCMOS levels) RS422 |
| Power supply | 4.5v~12v |
STA-M0710X LRF Module Size
