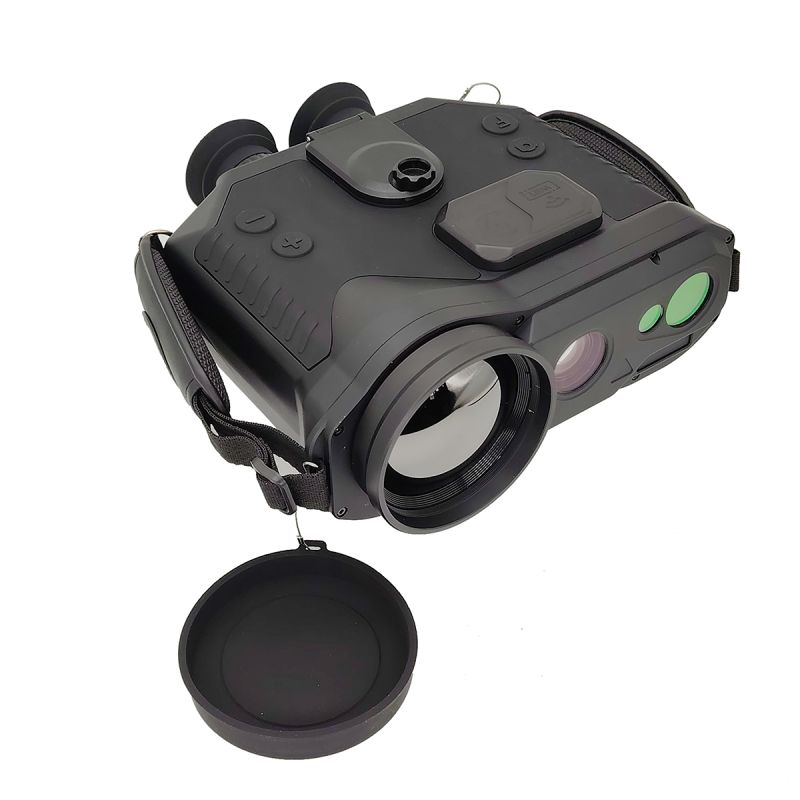

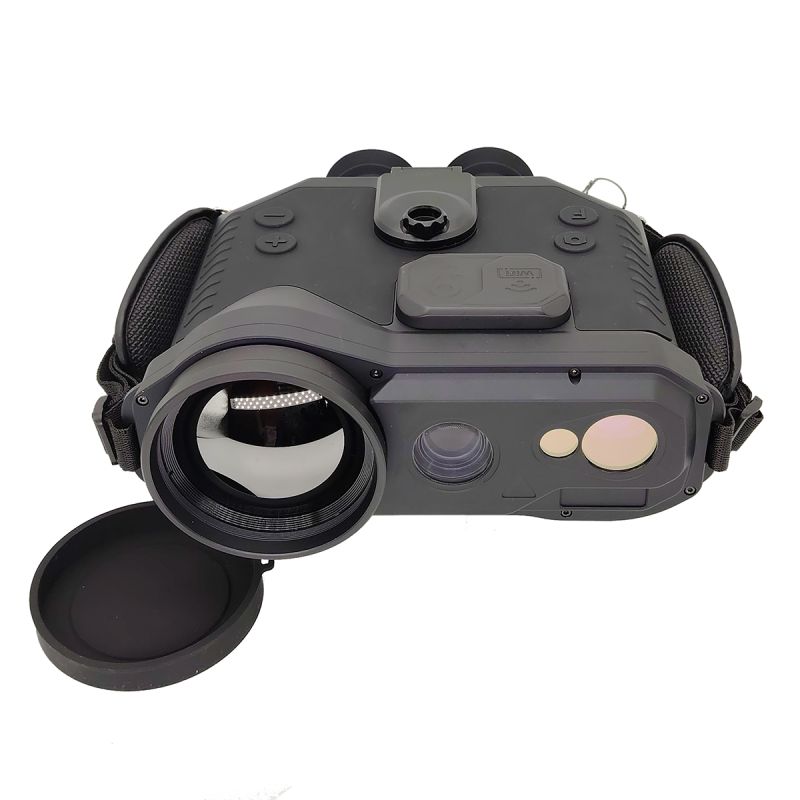

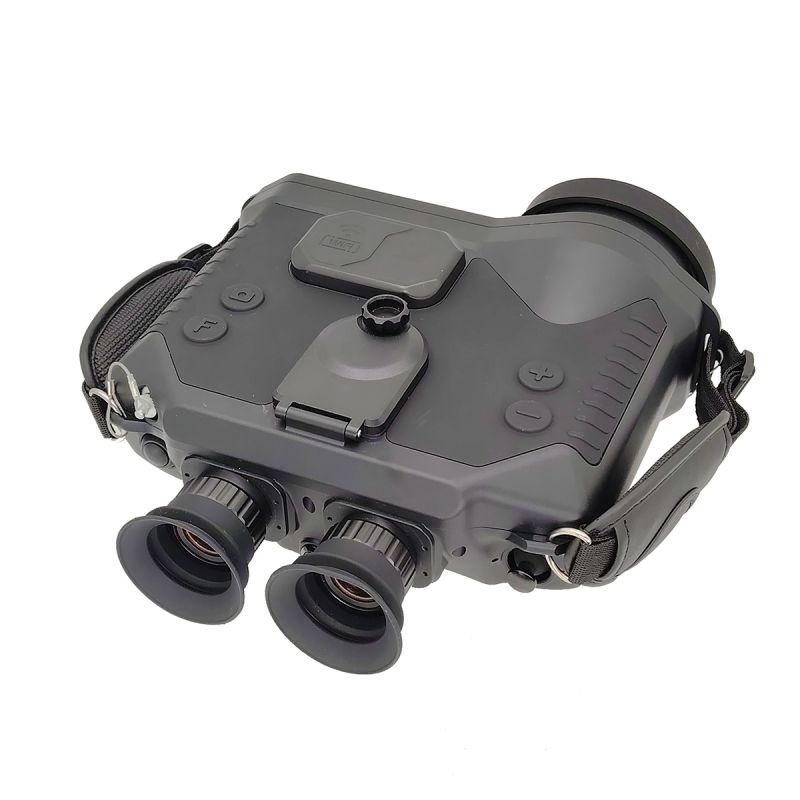

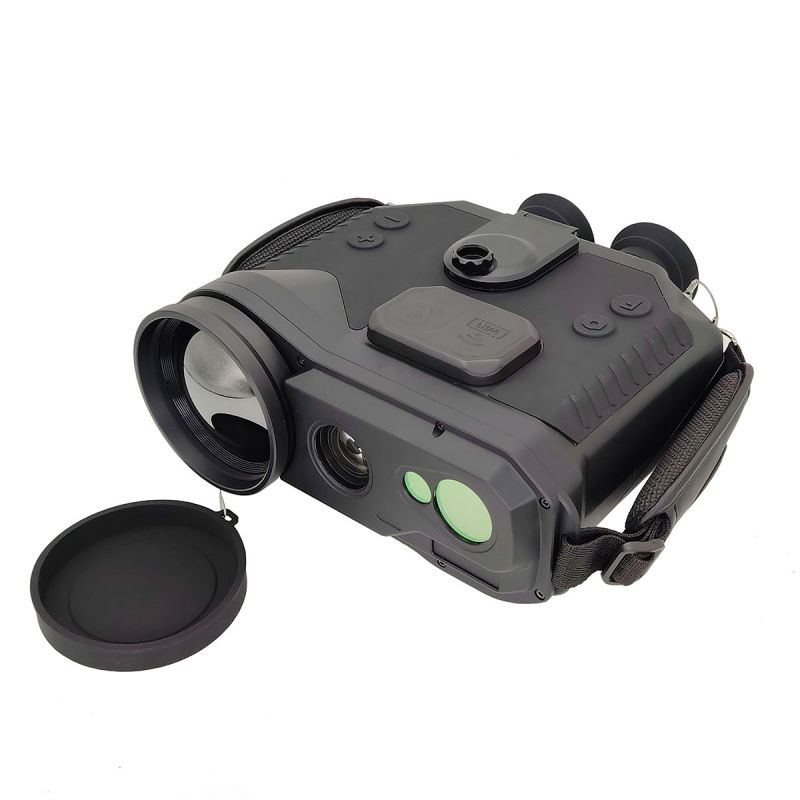

Handheld Thermal Imaging Binoculars with Rangefinder
STA-T500 is a multi-spectral intelligent night vision device integrating visible, infrared, laser rangefinding and digital magnetic compass functions. It can be used for target observation, ranging, self-positioning and target location as well as information collection and processing.
Infrared: 640×512/8-14μm
IR Len:75mm/f1.0
Visible light: 2560×1440/2μm
Laser Rangefinder:5km
Model:STA-T500
Send Inquiry
Product Description
| Description | ||
| Model: | STA-T500 | |
| Thermal System | ||
| Detector Type: | UnCooled VOx FPA | |
| Resolution: | 640 x 512 px | |
| Spectral Range: | 8 to 14 μm | |
| Pixel Pitch: | 12μm | |
| Frame Rate: | 50Hz | |
| NETD: | ≤40mk | |
| Polarity: | White-Hot/Black-Hot/Rainbow/Iron/Green, etc. | |
| Focus Mode: | Motorized focus | |
| Focus Range: | 10m~ ∞ | |
| IR Len: | f=75mm, F#1.0 | |
| FoV: | 5.9°×4.7° | |
| E-Zoom: | 1~8x | |
| Detection: | Human(1.7×0.5m) | 2800m |
| Vehicle(3.0×1.5m) | 7000m | |
| Recognition: | Human(1.7×0.5m) | 800m |
| Vehicle(3.0×1.5m) | 2800m | |
| CMOS System | ||
| Sensor Type: | Sony STARVIS CMOS | |
| Resolution: | 2560×1440 px | |
| CMOS Size: | 1/2.8'' inch | |
| Unit Cell Size: | 2.0 μm | |
| Lens: | f=4.7~47mm, F#1.7~3.1 | |
| Frame Rate: | 30Hz | |
| FoV: | 7.1~58.3°× 5.4~44.7° | |
| Zoom Ratio: | Optical x10, Digital x32 Zoom | |
| Laser Range Finder | ||
| Wavelength: | 1535±5nm (Eye Safe, CLASS 1) | |
| Range Distance: | 5km | |
| Accuracy: | ±1m | |
| Efficiency: | >98% | |
| Display | ||
| Panel: | 2×0.39'' OLED | |
| Resolution: | 1024×768 px | |
| Eyepiece Magnification: | 15× | |
| Interface | ||
| GPS/GNSS: | ≤2.5m(CEP) | yes(L1+L5) |
| Wi-Fi: | yes | |
| Digital Magnetic Compass: | Azimuth | ±1° |
| Pitch | ±0.5° | |
| Photo & Video: | yes | |
| Storage: | EMMC | 32GB/64GB |
| Data Transfer: | Picture & Video | USB2.0 |
| Mount Adaptor: | ¼ inch Standard Tripod Mounting | |
| Power | ||
| Battery: | 11.1V 3400mAh (3×18650 Li-ion) | |
| Average Power: | ≈5.5W | |
| Operate Time: | ≈5h | |
| Environment | ||
| Protection Level: | IP66 | |
| Operating Temperature: | -30°~+55° | |
| Storage Temperature: | -40°~+60°(No condensation) | |
| Physical | ||
| Dimensions: | 241mm(L)x242mm(W)x97mm(H) | |
| Weight | ≈2.4Kg (including battery) | |
