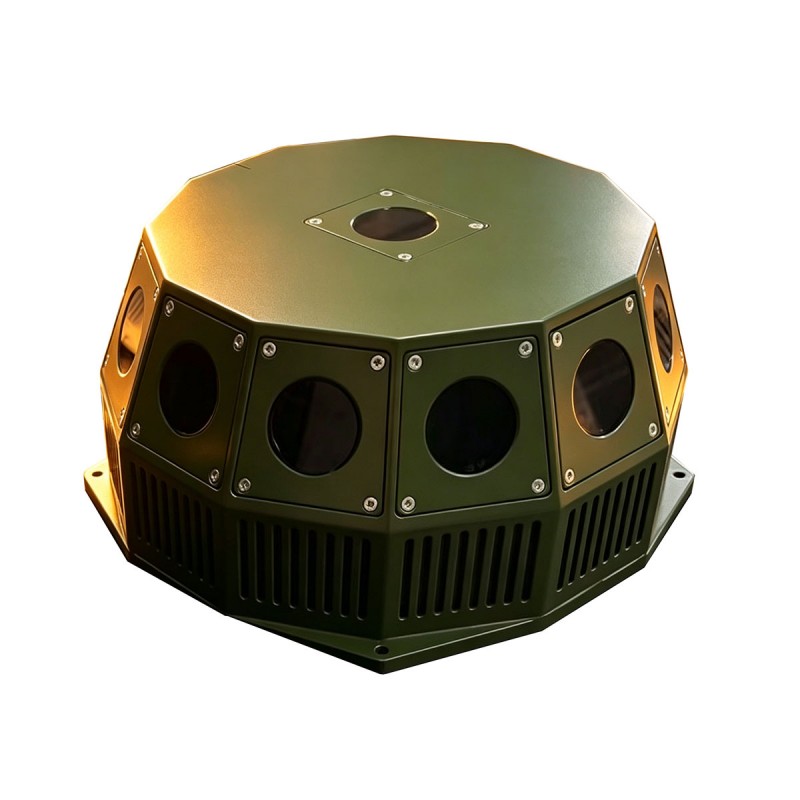

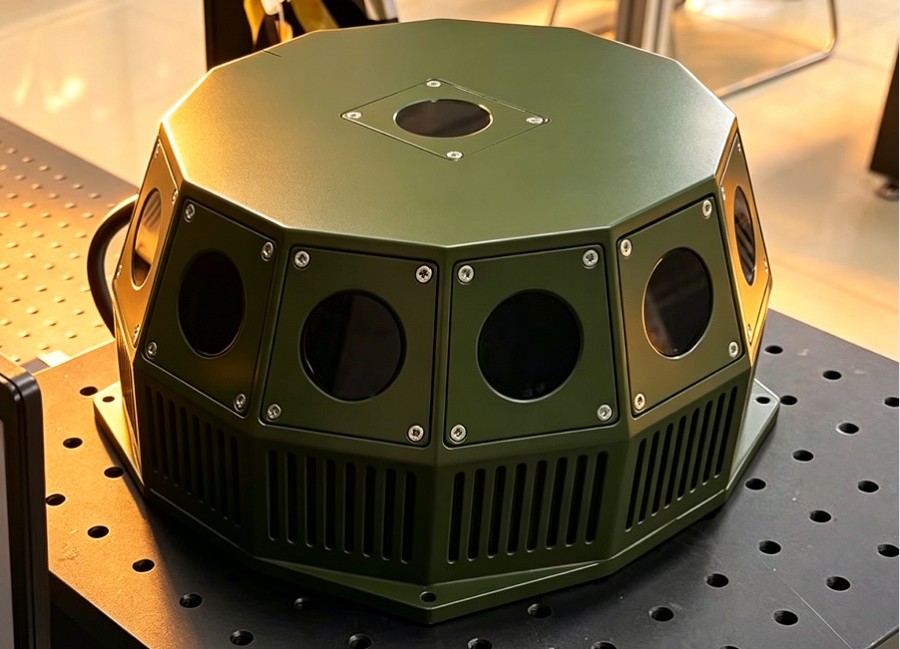

Laser Warning System LWS360DX

The STA-LWS360DX Distributed Laser Warning System is equipped with 13 detection units, realizing blind-free coverage of 360° azimuth and -15°～90° elevation. It can real-time perceive, detect and identify incoming external laser radiation threat signals. Built with a high-precision decoder, the system supports recognition of codes up to no less than 32 bits. It can cooperate with high-energy lasers to form an autonomous angle deception system, deflect incoming laser-guided weapons and protect friendly targets.
Adopting a modular architecture, the system features compact layout and high operational reliability with convenient installation, commissioning and maintenance. Compatible with land-based, vehicle-mounted and ship-borne platforms, it allows flexible layout according to combat missions to fulfill laser threat detection, early warning and optoelectronic countermeasure tasks in diverse complex scenarios.

a)Land-based / Vehicle-mounted / Ship-borne platforms: Output laser threat warning information to guide optoelectronic radars to capture and track threat azimuths;
b) b) Cooperate with high-energy lasers to construct an autonomous laser deception system, deflect incoming laser-guided weapons and protect friendly targets.

•Powerful decoding function, combined with high-power laser equipment, can deceive laser guided bombs.
• PRF (Pulse Repetition Frequency) detection
• Multiple simultaneous threat detection and tracking
• Reset the input to zero to erase critical data from memory
• High MTBF value
• O-level maintenance testing equipment
•IP67 Water and dust ingress protection
•Salt spray test resistance 800 hours

Notes:For more product information, please contact the Jioptics team.
