Laser Warning System

High sensitivity
Fast response
Threat classification
Threat identification and prioritization (through task data files)
High resolution laser wave direction detection
Band 0.9 μ m~1.6 μ m wavelength coverage

• Detect enemy laser threats
• Laser beam rider
•Laser Target Designator（LTD）
•Laser rangefinder (LRF)
•Vehicle mounted, airborne, and shipborne platforms can all be used (products can be customized according to requirements)

•Powerful decoding function, combined with high-power laser equipment, can deceive laser guided bombs.
• High detection probability covering Horizontal 360 °, elevation -5 ° to+90 °;
• Extremely low false alarm rate ≤ 1 time/1000h
• Threat laser band detection 0.9 μ m~1.6 μ m(0.4-1.7 μ m optional)
• PRF (Pulse Repetition Frequency) detection
• Multiple simultaneous threat detection and tracking
• Reset the input to zero to erase critical data from memory
• High MTBF value
• RS422 interface (customizable interface)
• O-level maintenance testing equipment

1. System composition

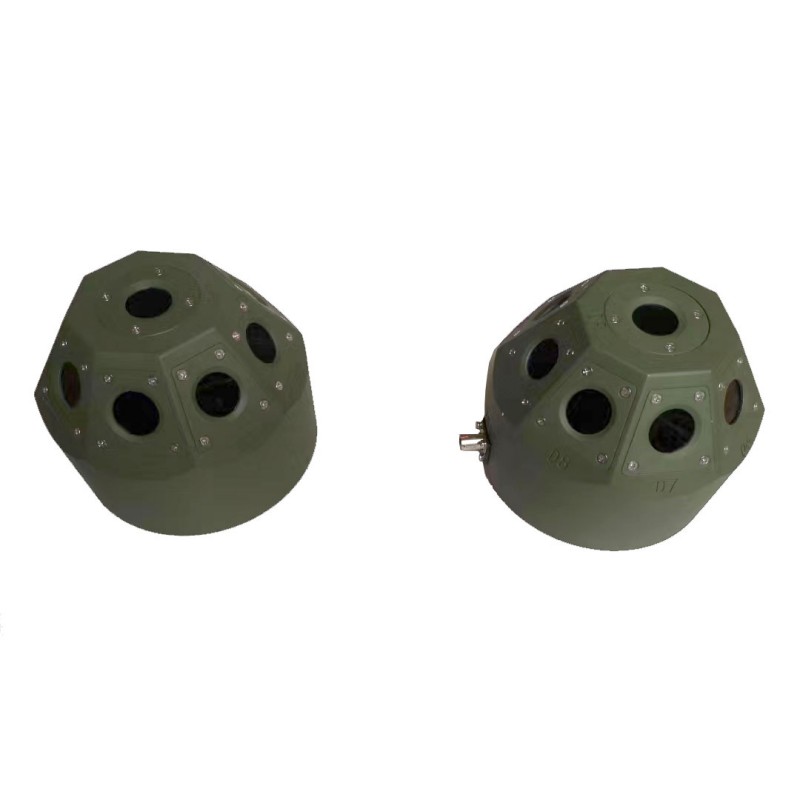

The laser detector mainly consists of one laser detection module and one display module. The laser detection module can be mounted on the top of a tripod or vehicle platform, and can achieve 360°azimuth detection. The display module is used to display laser information for personnel.

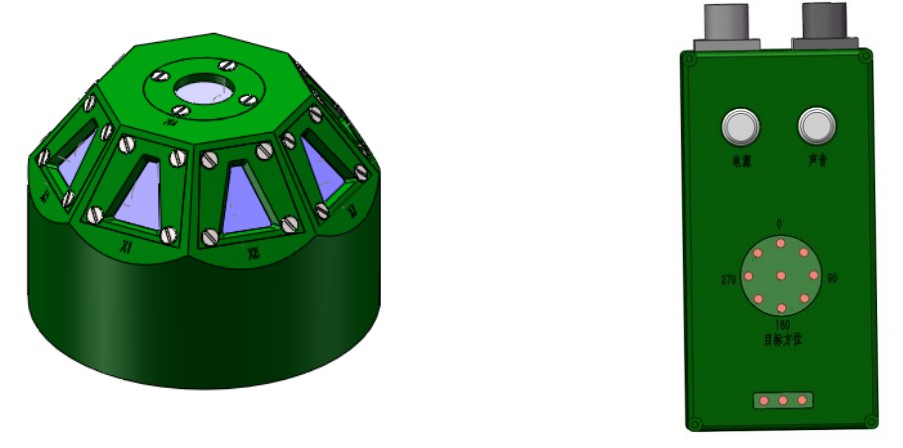

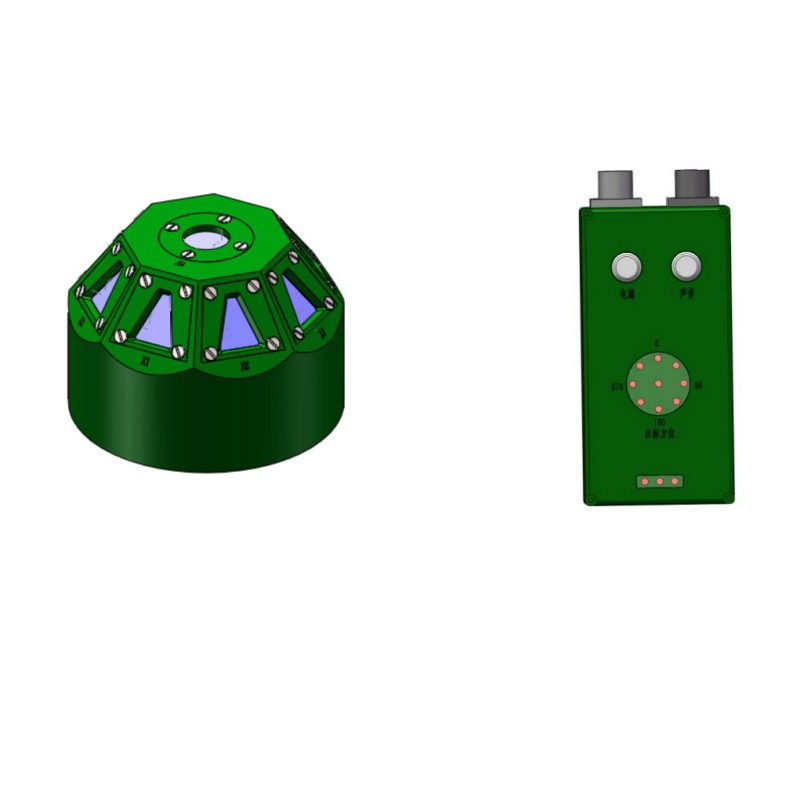

Laser detection module Display module

The laser detector is used in a small and lightweight way, the laser detector module is set up on a tripod or vehicle platform, the laser detector module and the display module are connected by cables, and the display module is placed inside the vehicle for use. When there is a laser signal, the display module will light up the indicator corresponding to the target direction, suggesting that there is a laser signal in this direction.
At the same time, the device can be connected to an external communication interface to output the laser's orientation, code and other information.

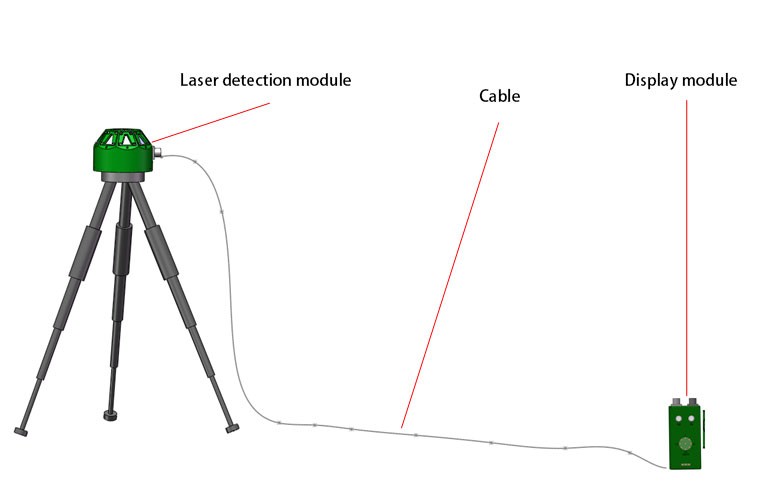

Usage diagram

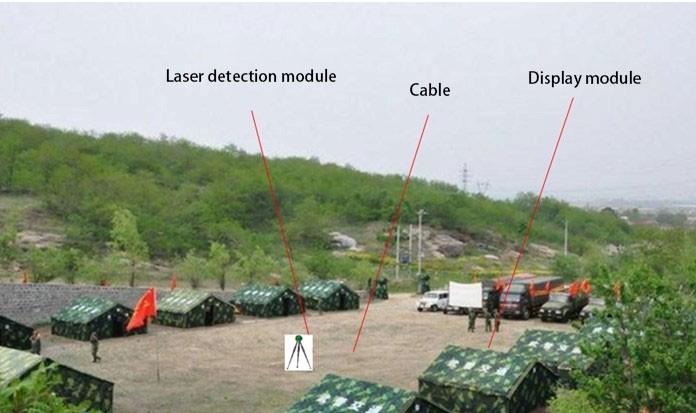

Usage scenario
