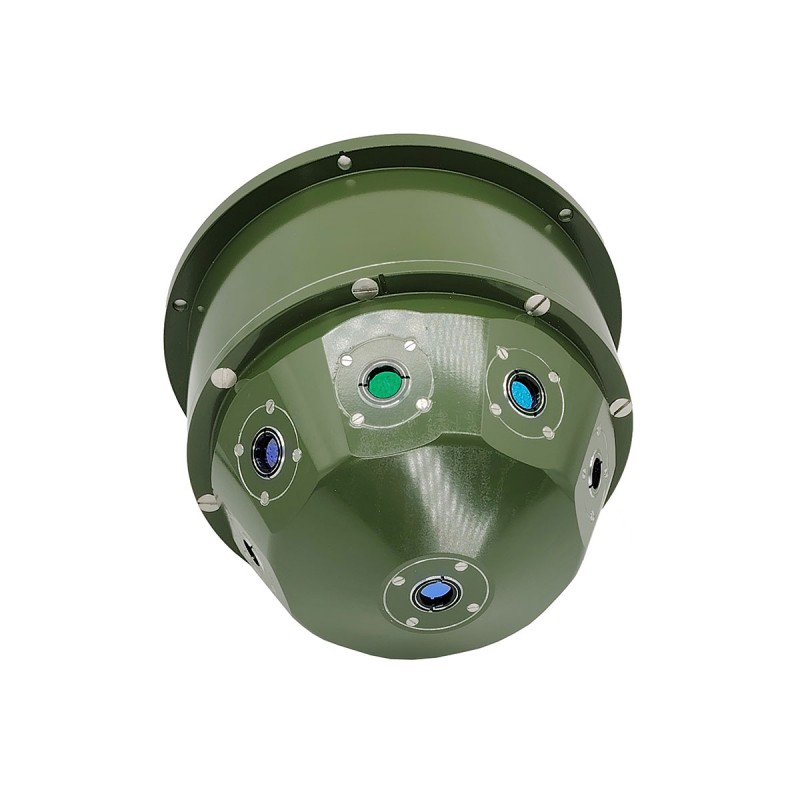

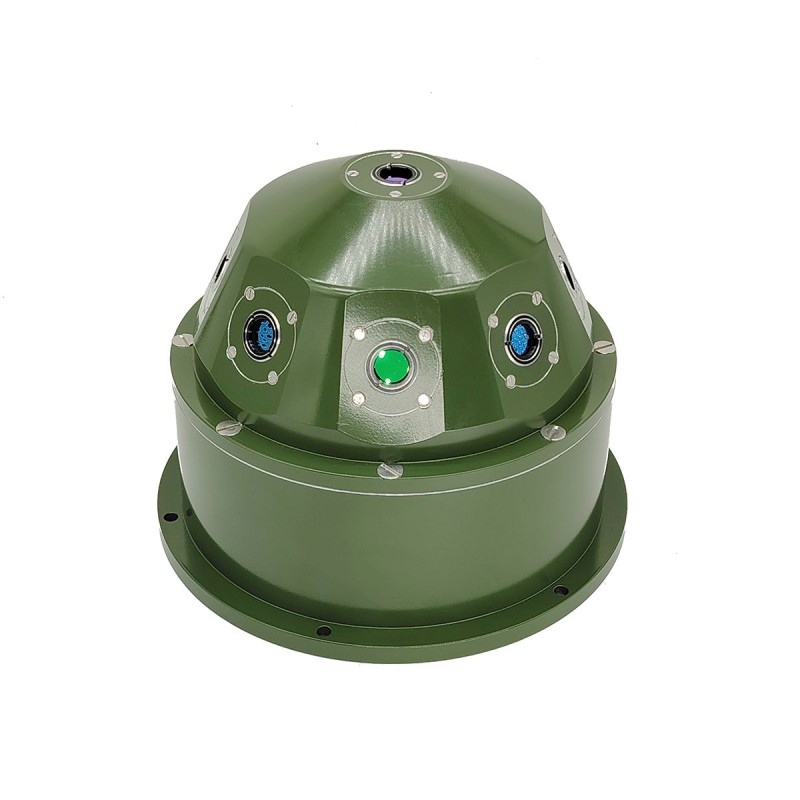

LW360X Laser Warning System 360° Detection
This is a typical laser warning system for land, sea, air, and amphibious platforms, applied to laser threat warning of various fixed/mobile platforms (or important locations), detecting laser radiation in a timely and accurate manner, obtaining incoming laser radiation information, outputting triggering signals and alarm information to activate laser active/passive interference, and linking laser active/passive countermeasure equipment to take countermeasures, thereby significantly improving survival capabilities.
Send Inquiry
Product Description
High sensitivity
Fast response
Threat classification
Threat identification and prioritization (through task data files)
High resolution laser wave direction detection
Band 1.064μm,1.54μm wavelength coverage
Fast response
Threat classification
Threat identification and prioritization (through task data files)
High resolution laser wave direction detection
Band 1.064μm,1.54μm wavelength coverage
Application Fields of Laser Warning Devices
• Detect enemy laser threats
• Laser beam rider
•Laser Target Designator（LTD）
•Laser rangefinder (LRF)
•Vehicle mounted, airborne, and shipborne platforms can all be used (products can be customized according to requirements)
• Laser beam rider
•Laser Target Designator（LTD）
•Laser rangefinder (LRF)
•Vehicle mounted, airborne, and shipborne platforms can all be used (products can be customized according to requirements)
STA-LW360X Laser Warning System Features
•Powerful decoding function, combined with high-power laser equipment, can deceive laser guided bombs.
• High detection probability covering Horizontal 360 °, elevation -5 ° to+90 °;
• Extremely low false alarm rate ≤ 1 time/1000h
• Threat laser band detection1.064μm,1.54μm (0.4-1.7 μ m optional)
• PRF (Pulse Repetition Frequency) detection
• Multiple simultaneous threat detection and tracking
• Reset the input to zero to erase critical data from memory
• High MTBF value
• RS422 interface (customizable interface)
• O-level maintenance testing equipment
•IP67 Water and dust ingress protection
•Salt spray test resistance 800 hours
• High detection probability covering Horizontal 360 °, elevation -5 ° to+90 °;
• Extremely low false alarm rate ≤ 1 time/1000h
• Threat laser band detection1.064μm,1.54μm (0.4-1.7 μ m optional)
• PRF (Pulse Repetition Frequency) detection
• Multiple simultaneous threat detection and tracking
• Reset the input to zero to erase critical data from memory
• High MTBF value
• RS422 interface (customizable interface)
• O-level maintenance testing equipment
•IP67 Water and dust ingress protection
•Salt spray test resistance 800 hours
Main technical parameters
| Model | STA-LW360X |
| Response wavelength | 1.064μm, 1.54μm(Wavelengths can be customized) |
| Sensitivity | ≤8μW /mm2 |
| Dynamic range of light | Better than 80dB |
| Warning airspace | Horizontal 360 °, elevation -5 ° to+90 °; |
| Field of view resolution | Horizontal 22.5 °, pitch: divided into three areas: high, medium, and low; |
| Detection probability | ≥ 98% |
| False alarm rate | ≤ 1 time/1000h |
| Interference with laser interference laser | SMA interface TTL positive pulse level |
| Interface | RS485(Customizable RS422 and other interfaces) |
| Power supp | DC24V ± 4V (Customizable) |
| Power consumption | ≤7W |
| Size | ≤φ232×180mm3(maximum outer envelope) |
| Weight | ≤5.2kg |
| Colour | Military green (other colors can be customized) |
| Output synchronous trigger (laser interference laser) pulse signal delay time: ≤ 40ns (excluding alarm message output time); | |
