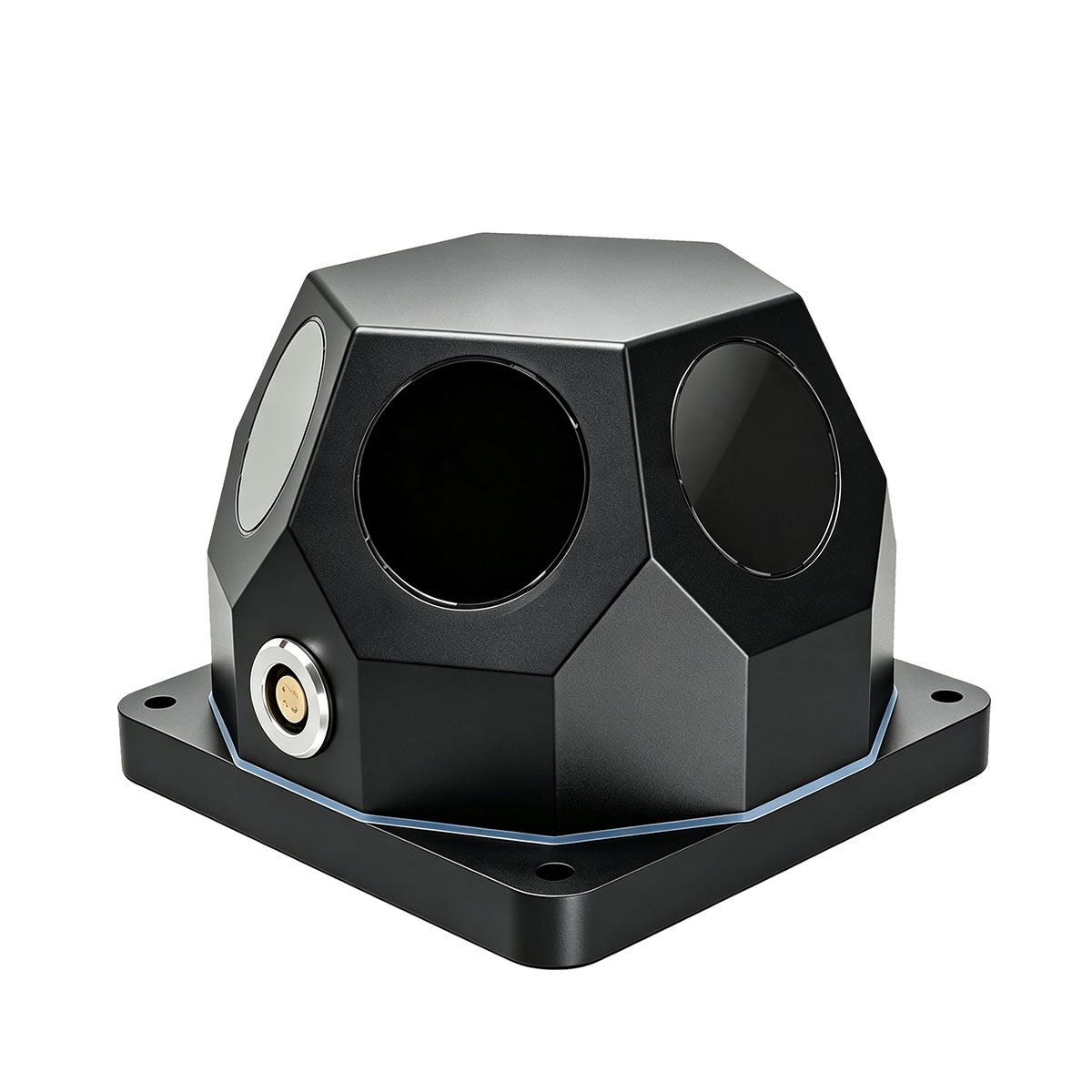

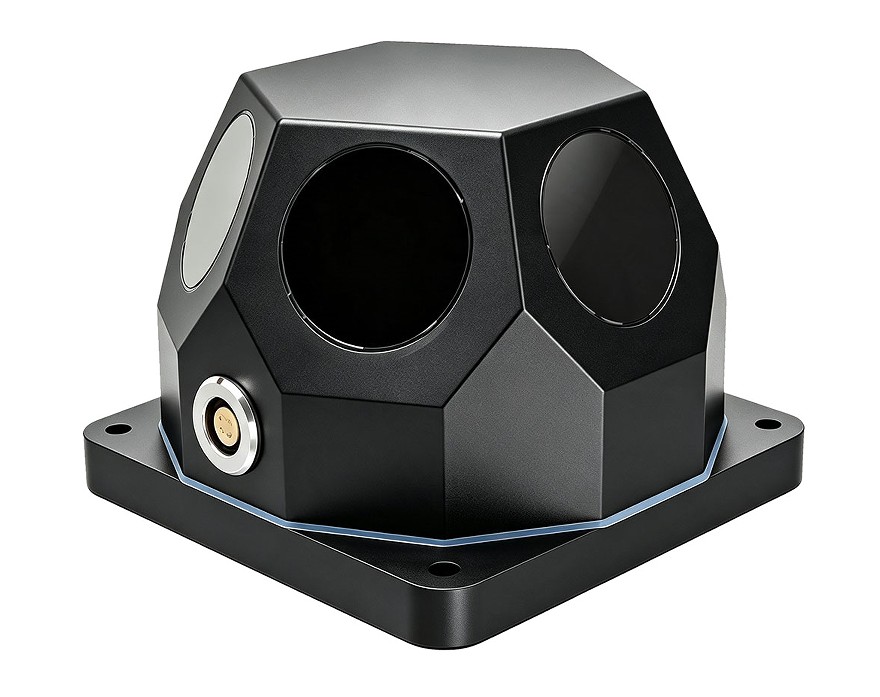

Platform-mounted Laser Warning System LWS360D
The STA LWS360D Laser Warning System is equipped with six detection windows for 360° omnidirectional detection. It detects laser threats in real time and triggers rapid audible visual alarms. Featuring modular design and high reliability, it enables easy deployment and installation for complex scenarios including land based, vehicle mounted and ship borne platforms.
Detection wavelength:900-1700nm
Detection range:≥5km
Detection field of view:360°(90°X6)
Send Inquiry
Product Description
The STA-LWS360D Laser Warning System consists of two functional units: laser signal receiving module and acousto-optic alarm module. Equipped with six laser signal receiving windows, it realizes 360-degree omni-directional blind-free detection, which can real-time perceive, detect and identify incoming external laser radiation threat signals. Upon capturing valid laser threat signals, the receiving module outputs alarm trigger signals immediately to activate the acousto-optic alarm module.
With modular architecture, the system features compact structure, high operational reliability, and convenient installation, commissioning and maintenance. Compatible with vehicle-borne, ship-borne and other platforms, mounting positions can be flexibly arranged according to combat-mission requirements to accomplish laser detection and threat warning tasks in various complex scenarios.
With modular architecture, the system features compact structure, high operational reliability, and convenient installation, commissioning and maintenance. Compatible with vehicle-borne, ship-borne and other platforms, mounting positions can be flexibly arranged according to combat-mission requirements to accomplish laser detection and threat warning tasks in various complex scenarios.
Application Fields of Laser Warning Devices
• Detect enemy laser threats
•Laser Target Designator（LTD）
•Laser rangefinder (LRF)
•Vehicle mounted (products can be customized according to requirements)
•Laser Target Designator（LTD）
•Laser rangefinder (LRF)
•Vehicle mounted (products can be customized according to requirements)
Main technical parameters
| Module | STA-LWS360D |
| Detector Type | InGaAs |
| Reconnaissance object | All laser threats within the900-1700nm range |
| Detection range | ≥5km (the stronger the laser, the farther the detection, and vice versa) |
| Detection wavelength | 0.9~1.7μm(Customizable according to needs) |
| Detection Sensitivity | ≥100 μW/cm² |
| Response Time | <10 ms |
| Detection field of view | 360°（No blind spots） |
| Laser detection window | 6 |
| Single window detection angle | 90° |
| Durability | IP68 |
| Alarm method | Audible and visual alarm |
| Working voltage | DC 24V |
| Power supply mode: | External DC power supply; |
| Signal interface | Four core aviation plug interface |
| Working mode | Triggered warning |
| Weight | ≤350g |
| Overall dimension | 95x95x68mm(Customizable according to needs) |
| Operating temperature | 20 ℃~ +55℃ (The temperature can be extended from - 40 ℃ to+55 ℃.) |
| Storage temperature | -40℃~ +65℃ |
Note: Laser alarms with communication interfaces can be customized according to requirements.

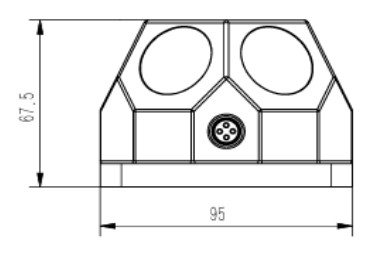

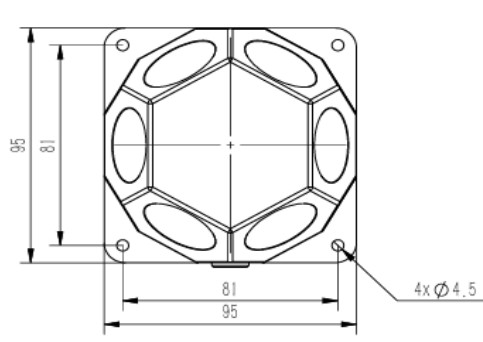

STA LWS360D Laser Warning System LWS Size

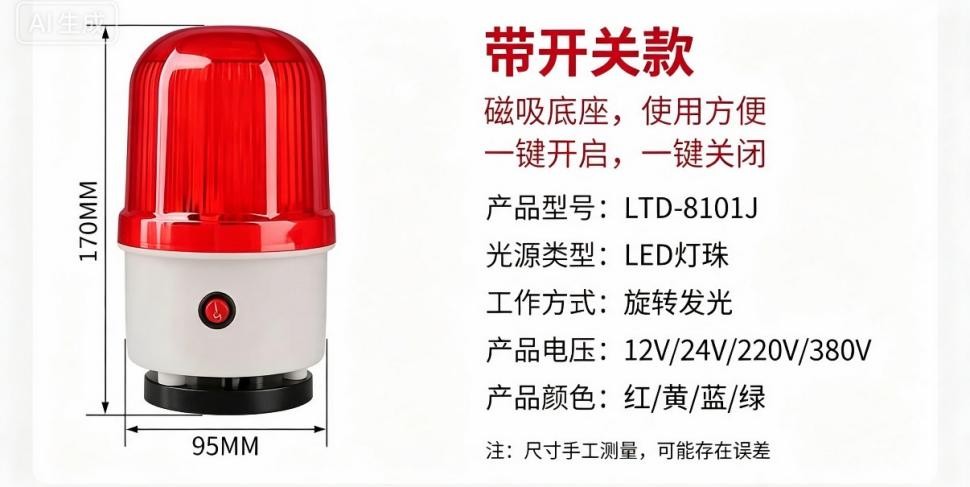

Physical picture of sound and light alarm module(Customizable)
Interface Definition
Power supply and alarm signal output interface:
Table 1 Definition of Power Supply and Alarm Signal Output Interface
Table 1 Definition of Power Supply and Alarm Signal Output Interface
| Pin | Definition | Notes |
| 1 | +24V | 24V power supply |
| 4 | GND | |
| 2 | Alarm signal+ | Signal output |
| 3 | Alarm signal- |
Power supply and alarm signal input interface:
Table 2 Definition of Power Supply and Alarm Signal Input Interface
Table 2 Definition of Power Supply and Alarm Signal Input Interface
| Pin | Definition | Notes |
| 1 | +24V | 24V power supply |
| 4 | GND | |
| 2 | Alarm signal+ | Signal input |
| 3 | Alarm signal- |
