Ring Laser Gyroscope High Precision Two Frequency Machine Shaking
  • Ring Laser Gyroscope High Precision Two Frequency Machine ShakingRing Laser Gyroscope High Precision Two Frequency Machine Shaking

Ring Laser Gyroscope High Precision Two Frequency Machine Shaking

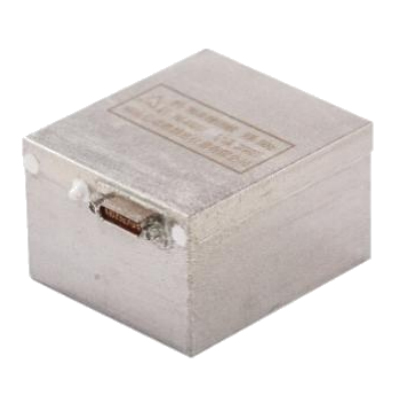

Ring Laser Gyroscope High Precision Two Frequency Machine Shaking is a high-precision digital dual-frequency machine-shaking laser gyro developed and produced by JIoptics company. It has the advantages of high precision, simple power supply, high integration and digital output. It can measure the angular motion of the carrier around the sensitive axis and output two orthogonal square waves. It is widely used in the integration of positioning/navigation, fire control and flight control, surveillance and reconnaissance systems in the fields of missiles and their launch vehicles, ships, aircraft, drones, and armored vehicles.

Model:JIO50-RLG

Send Inquiry    PDF DownLoad

Product Description


Ring Laser Gyroscope High Precision Two Frequency Machine Shaking Overview

Ring Laser Gyroscope-JIO50  is a high-precision digital dual-frequency machine-shaking laser gyro developed and produced by JIoptics company. It has the advantages of high precision, simple power supply, high integration and digital output. It can measure the angular motion of the carrier around the sensitive axis and output two orthogonal square waves. It is widely used in the integration of positioning/navigation, fire control and flight control, surveillance and reconnaissance systems in the fields of missiles and their launch vehicles, ships, aircraft, drones, and armored vehicles.

JIO50-RLG is available in A, B and C models to meet your different needs.

Ring Laser Gyroscope High Precision Two Frequency Machine Shaking Features

Measure the rotation angle around its sensitive axis, and output two orthogonal square waves.

Performance

JIO50 -type laser gyroscope are shown in Table 1.

Table 1 Main Technical Indicators of Gyro

serial number
parameter
unit
Grade A
Grade B
Grade C
Remark
1
Zero bias
°/h
≤0.5 /
2
bias stability
°/h
≤0.5 %
≤1 %
≤3 %
100s , 1σ
3
Zero bias repeatability
°/h
≤0.5 %
≤1 %
≤3 %

4
random walk coefficient
°/h 1/2
≤2‰
≤5‰
≤9‰
/
5
Scale factor
"/pulse
3.370
/
6
Scale Factor Nonlinearity
ppm
≤5
/
7
Scale Factor Repeatability
ppm
≤5
8
Magnetic sensitivity
°/(h·Gs)
/
/
9
Maximum input angular rate
°/s
≥ ± 400
/
10
Start Time
the s
≤10
/

Environmental adaptability

a ) Working temperature : -40 ℃ ~ + 65 ℃
b ) Storage temperature: -45 ℃ ~ + 85 ℃
c ) Vibration: 9.6g in total;
d ) Shock: 30g/11ms (half sine) or 75g/6ms (half sine);
e) Low pressure: 5000m above sea level.

Frequency (Hz)
10
100
200
300
400
500
800
2000
Power spectral density (g 2 /hz)
0.1
0.6
0.2
0.06
0.04
0.02 0.005
-6db

Power supply and electrical interface

a ) Power supply
Type: ± 5V , +15V
Requirements: +5V - current 180mA , stability ± 50mV , ripple < 50mV
-5V - current 60mA , stability ± 50mV , ripple < 50mV
+15V - current 240mA , stability ± 100mV , ripple < 100mV
b ) Power consumption: < 6W
c ) Electrical interface type: J30J-25ZKP
d ) Interface definition: The definition of electrical interface pins is shown in Table 2.

Table 2 Electrical interface definition table

pin number
definition
Remark
1
+15V
power input
2
+15VGND
+15V power ground
3
NC
null
4
GND
+5V , -5V power ground
5
NC
null
6
+5V
power input
7
-5V
power input
8
AOUT
Square wave output signal 1 ( TTL level)
9
BOUT
Square wave output signal 2 ( TTL level)
10
TMP3
Platinum resistance thermometer 3
11
TCOMA
3 platinum resistance common terminals
12
TMP1
Platinum resistance 1
13
TMP2
Platinum resistance 2
14
+15V
power input
15
+15VGND
+15V power ground
16
NC
null
17
GND
+5V , -5V power ground
18
NC
null
19
+5V
power input
20
-5V
power input
twenty one
AOUT
Square wave output signal 1 ( TTL level)
twenty two
BOUT
Square wave output signal 2 ( TTL level)
twenty three
GND
+5V , -5V power ground
twenty four
NC
Spinning Top
25
NC
Spinning Top
The models of platinum resistors 1 , 2, and 3 are Pt1000

Reliability

MTBF: 10000h
Continuous working time: the continuous working time is not less than 24 hours after power-on.

Shape and mechanical interface

a ) Weight: ≤620g ±20g
b ) Shape and mechanical interface: as shown in Figure 1.
Continuous working time: the continuous working time is not less than 24 hours after power-on.



Gyro appearance and installation diagram
