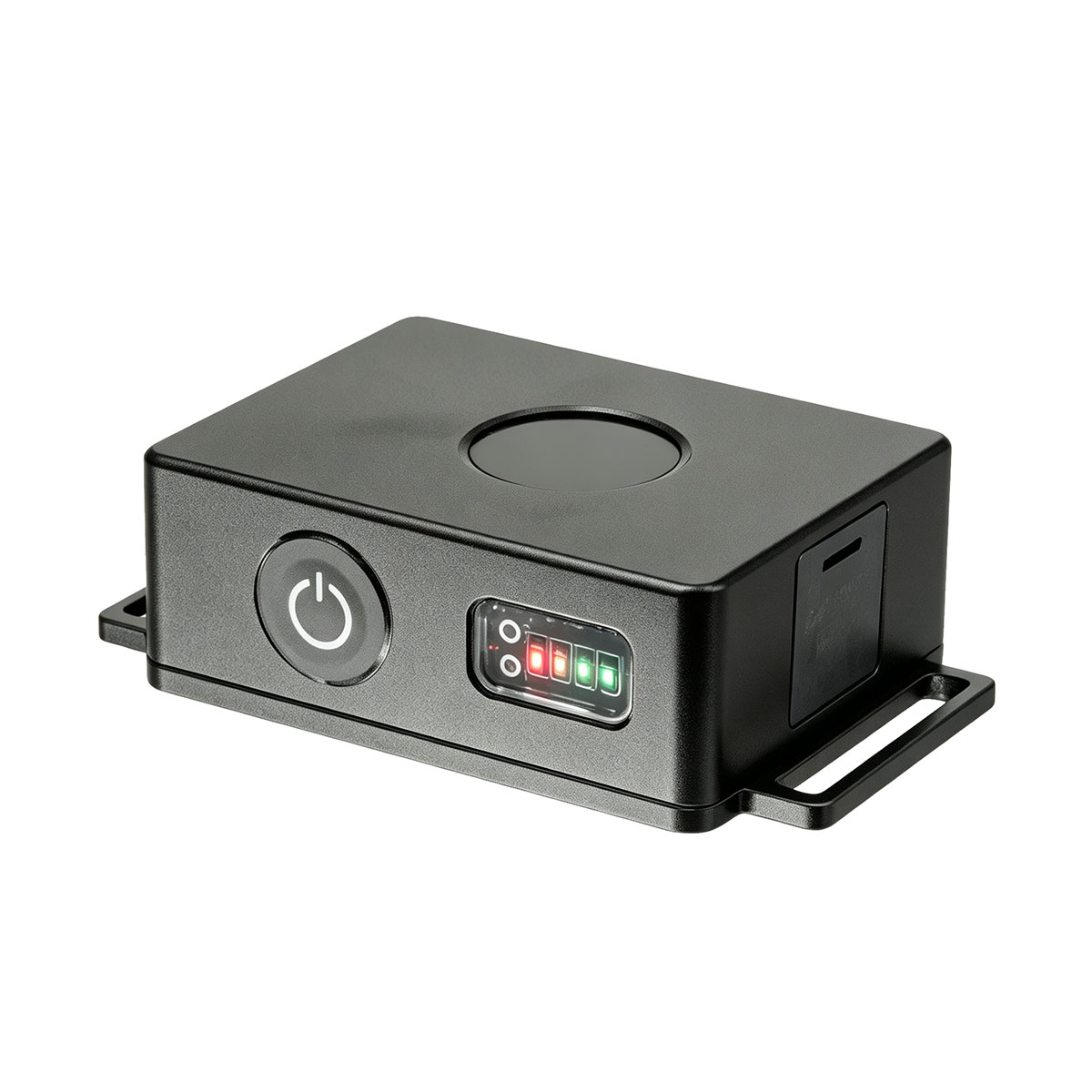

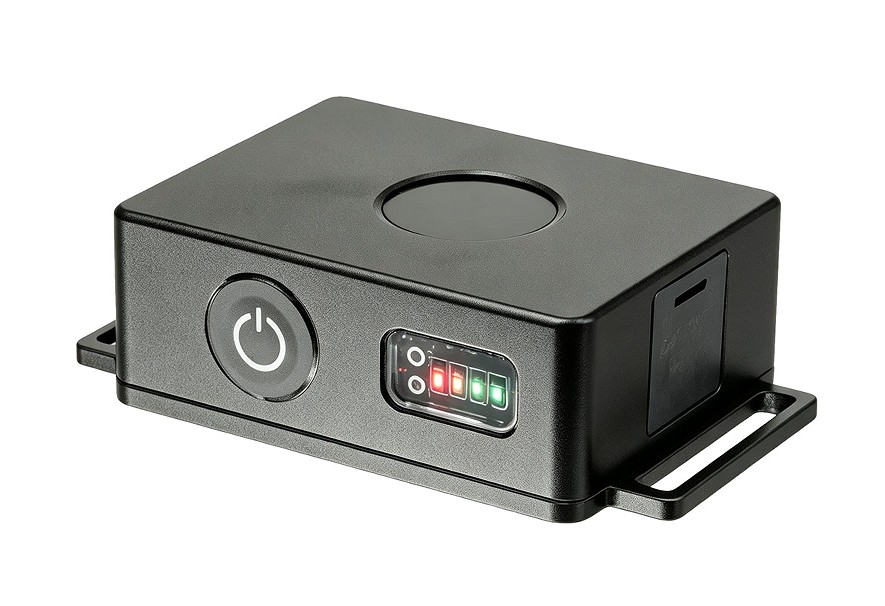

Tactical Wearable Laser Warning System LWS90D
STA-LWS90D Wearable Laser Warning System detects laser-based rangefinding, targeting, and guidance sources, providing immediate and reliable information to personnel about the type of the threat.
Detection wavelength: 900-1700nm
Battery Life: ≥ 12h
Alarm method: instant
Detection distance: ≥ 5km (the stronger the laser, the farther the detection, and vice versa)
Send Inquiry
Product Description
In complex and volatile modern operational environments, warfare patterns and security threats continue to evolve iteratively. The STA-LWS90D Wearable Laser Warning System delivers reliable sensing capability against various laser based threats. Equipped with an advanced sensor architecture, the system performs real time detection of threat laser source signals, effectively enhancing operators’ situational awareness and supporting them in making rapid operational decisions.
Product Features
-Real time laser threat detection for rapid perception of incoming laser threats
-Dual mode alarm with vibration and audio output
-Rugged metal housing for high mechanical durability
-Ergonomic wearable design for easy tactical Wearable
-Dual mode alarm with vibration and audio output
-Rugged metal housing for high mechanical durability
-Ergonomic wearable design for easy tactical Wearable
Main technical indicators:
| Module | STA-LWS90D |
| Detector Type | InGaAs |
| Reconnaissance object | All laser threats within the900-1700nm range |
| Reconnaissance range | ≥5km (the stronger the laser, the farther the detection, and vice versa) |
| Detection wavelength | 0.9~1.7μm(Customizable according to needs) |
| Detection Sensitivity | ≥100 μW/cm² |
| Response Time | <10 ms |
| Detection field of view | 90° |
| Durability | IP68 |
| Alarm method | Real time |
| Battery Life | 12 hours of continuous operation |
| Battery | Built-in rechargeable battery |
| Charging method | Magnetic charging |
| Weight | ≤49g(Including batery) |
| Size | 91x55x30mm(Customizable according to needs) |
| Operating temperature | 20 ℃~ +55℃ (The temperature can be extended from - 40 ℃ to+55 ℃.) |
| Storage temperature | -40℃~ +65℃ |
Note: Laser alarms with communication interfaces can be customized according to requirements.
Introduction to STA-LW90D Wearable Laser Warning System
1. Working Principle & Application Advantages
The STA-LWS90D wearable laser warning system adopts a passive detection mode with excellent concealment and anti-interference performance. When the enemy uses laser rangefinders or laser guidance weapons to detect, lock or attack our soldiers, the system instantly captures incoming laser threat signals and triggers an alarm. It provides sufficient response time for personnel to take evasive, concealment and countermeasure operations, greatly improving individual battlefield survivability.
Designed for individual wearable deployment, the system features flexible layout and strong adaptability. It is highly suitable for border defense, high-risk area duty and field combat scenarios, providing all-weather and full-coverage laser threat early warning support for frontline personnel.
2. Wearing Method & Product Characteristics
Powered by a built-in rechargeable battery, the device supports cyclic charging with stable endurance and convenient maintenance. A single soldier can wear five units simultaneously to realize full-coverage early warning of the upper hemispherical airspace without detection blind areas.
The equipment is easy to wear and simple to operate without complicated debugging. It can effectively identify threats from enemy laser ranging, laser reconnaissance and laser-guided attacks. By outputting real-time and accurate early warning information, it supports soldiers in rapid tactical evasion, situation response and counterattack decisions, serving as a core individual protection device against laser threats on the battlefield.
The STA-LWS90D wearable laser warning system adopts a passive detection mode with excellent concealment and anti-interference performance. When the enemy uses laser rangefinders or laser guidance weapons to detect, lock or attack our soldiers, the system instantly captures incoming laser threat signals and triggers an alarm. It provides sufficient response time for personnel to take evasive, concealment and countermeasure operations, greatly improving individual battlefield survivability.
Designed for individual wearable deployment, the system features flexible layout and strong adaptability. It is highly suitable for border defense, high-risk area duty and field combat scenarios, providing all-weather and full-coverage laser threat early warning support for frontline personnel.
2. Wearing Method & Product Characteristics
Powered by a built-in rechargeable battery, the device supports cyclic charging with stable endurance and convenient maintenance. A single soldier can wear five units simultaneously to realize full-coverage early warning of the upper hemispherical airspace without detection blind areas.
The equipment is easy to wear and simple to operate without complicated debugging. It can effectively identify threats from enemy laser ranging, laser reconnaissance and laser-guided attacks. By outputting real-time and accurate early warning information, it supports soldiers in rapid tactical evasion, situation response and counterattack decisions, serving as a core individual protection device against laser threats on the battlefield.
