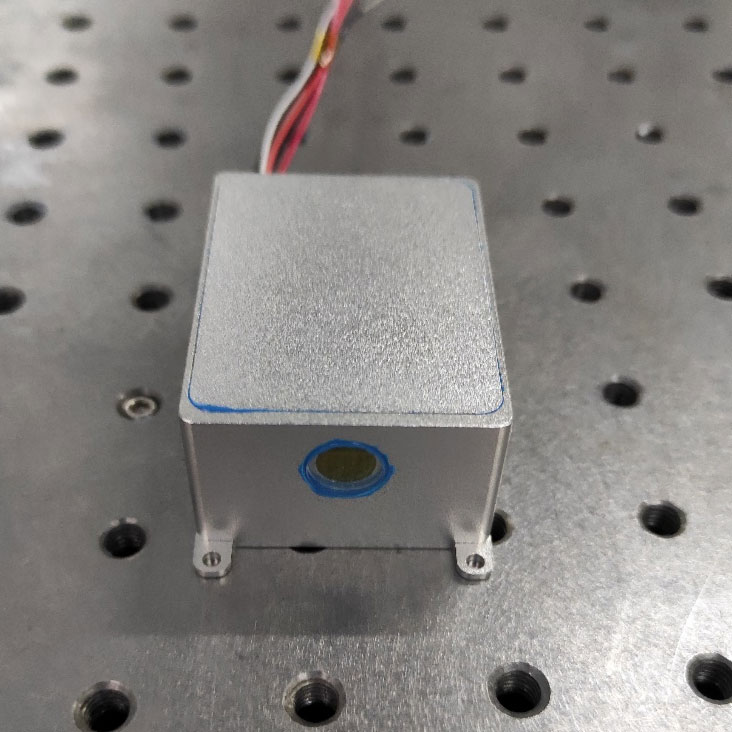

1064nm YAG Laser 15mJ 20Hz
  • 1064nm YAG Laser 15mJ 20Hz1064nm YAG Laser 15mJ 20Hz
  • 1064nm YAG Laser 15mJ 20Hz1064nm YAG Laser 15mJ 20Hz

1064nm YAG Laser 15mJ 20Hz

The 1064nm YAG Laser 15mJ 20Hz is one of the most widely used of all solid-state lasers, and can be used in materials processing, holographic technology, ranging, target illumination and indication, surgery and other fields.

Peak wavelength: 1064nm
Mono-pulse energy: 15mJ
Operating frequency: 20Hz
Operating temperature: -40℃~+55℃

Send Inquiry

Product Description

1064nm YAG Laser 15mJ 20Hz Technical parameter


Wavelength
1064nm
Peak power
≥15mJ
Pulse Repetition Rate
1~20hz (adjustable)
Divergence angle
≤8mrad
Continuous operating time
≥5min
Operating Temperature
-40℃~55℃
Storage Temperature
-45℃~65℃
Vibration
It can be applied on vehicle/vessel-mounted situation

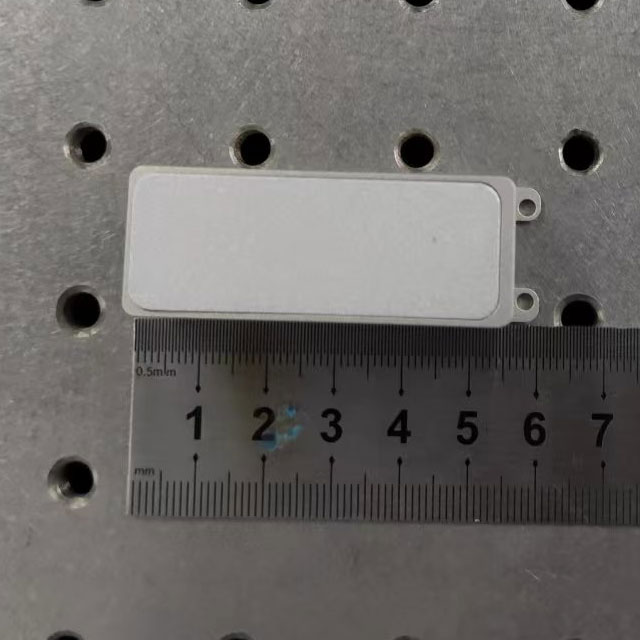

Dimension
≤65mm×40mm×25mm(heat dissipation plate is not included)
Weight
≤200g(heat dissipation plate is not included)
Drive voltage
≤25V
Drive current
≤110A
Pulse width of drive current
≤240μs
TEC
12V,6A;
Heat-dissipating method
Air-cooling (under 20hz)

OEM/ODM 1064nm YAG lasers

Jioptics can customize various energy of 1064nm YAG laser for you

Pin definition

NO.
Pin.
Definition
Note.
1
LD+
LD power+, yellow

2
LD-
LD power -, grey

3
TEC+
TEC power+, red

4
TEC-
TEC power -, black

5
T1
Thermistor1, blue
Thermistor Type#: MFB103-3380(1%)
6
T2
Thermistor2, blue

size
