5km Laser Rangefinder module for Anti drone ststem

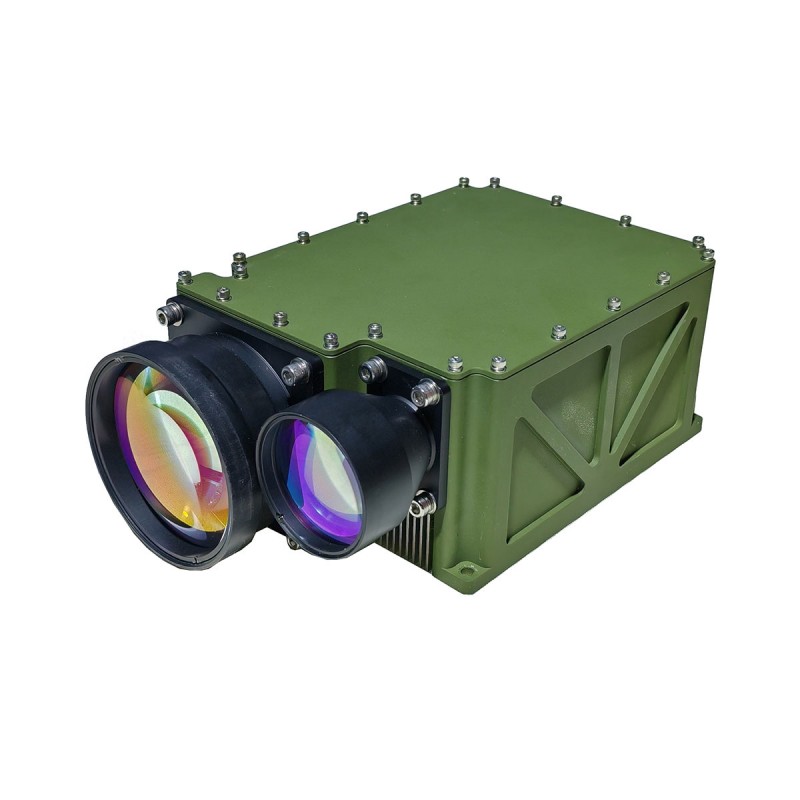

The STA-WR5000X is a dedicated laser ranging module for measuring UAV targets. It is developed based on a 1064nm YAG laser, featuring a large divergence angle of up to 1mrad and high-quality laser beam. It can easily lock onto a UAV target with a reflection area of 0.1m² at a distance of 5km and measure a UAV target with a reflection area of 2㎡ up to 10km away.

Send Inquiry

Product Description

a) Capable of self checking information response function;
b) Capable of fault location and fault mode feedback;
c) Capable of serial communication.

Product parameters

Model	STA-WR5000X	Notes
Wavelength	1064nm
Divergence angle	1±0.1mard
Max Range	≥5000m	Reflective area 0.1 m² UAV
Max Range	≥10000m	Reflective area 2 m² UAV
Mini Ranging	≤200m
Accuracy	±2m（RMS）
Ranging frequency	1. 5, 10, 20Hz adjustable
Interface	RS422	Customizable
Supply Voltage	24v	Customizable
Non-parallelism between optical axis and mounting reference plane	≤2mrad
Power consumption	Peak value ≤ 150W, average ≤ 100W;
Operation temperature	-40℃～+60℃
Storage temperature	-50℃～+70℃
Size	≤216×125×84mm
Weight	≤2kg

Note:
1.Ranging range description: the range will change under different test conditions and test targets, if you detect special targets, please contact the sales side to confirm;
2.Minimum range: 30m-100m fluctuations, it is recommended to 50m after normal use; due to the laser energy is large, close range use may burn the detector chip, so in the debugging, please bring a good mirror cover to prevent the detector chip is burned.

Note:Visibility ≥ 20km, Humidity ≤ 80%, UAV target reflectivity 0.3.

Electrical interface

Pin	Define	Notes
1	VCC	+24V Anodal
2
3
4
5	GND	Negative pole of power supply
6
7
8
9	T+	RS422
10	R-
11	T-
12	R+
13	Communication GND
14	SYN+	RS422 differential external timing system, width>10us.
15	SYN-	RS422 differential external timing system, width>10us.
