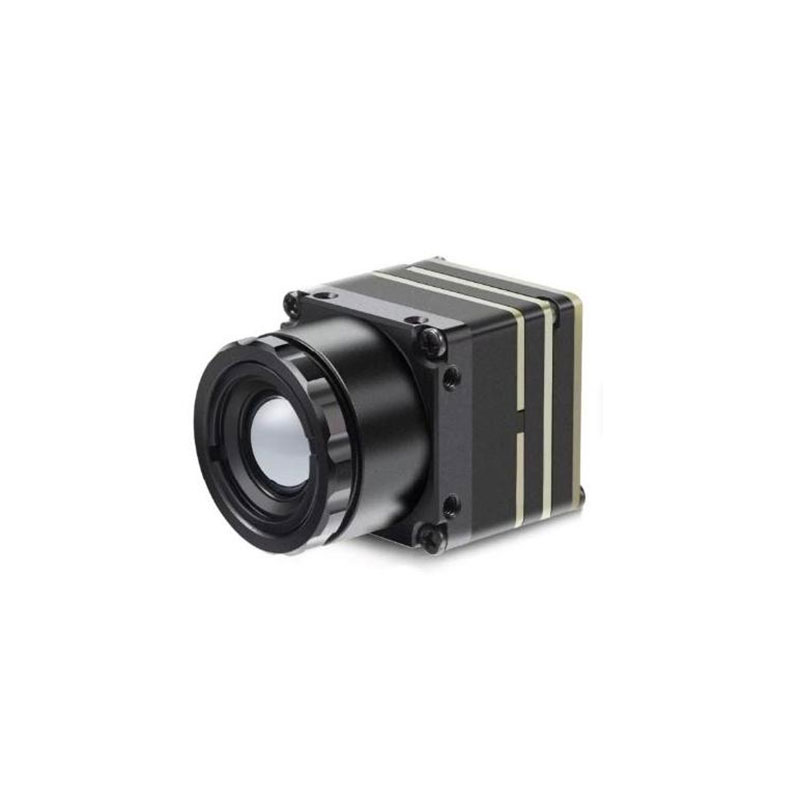

640x512 Thermal Imaging Camera for FPV Drone
STA-G64MF Micro FPV Drone Thermal Imaging Camera,Equipped with a high-sensitivity vanadium oxide uncooled infrared detector with 640×512 resolution, it accurately captures subtle temperature differences and performs reliably in complex environments such as nighttime and haze. Featuring lightweight and low-power design for easy integration, it is ideal for search and rescue, power inspection, security surveillance, and other scenarios, enabling all weather thermal imaging perception for drones.
Send Inquiry
Product Description
High-sensitivity VOX uncooled detector with 640 × 512 resolution
Analog signal output;
automatic, manual and background correction
Anti-sunburn for thermal imaging detector
Low power consumption for long-term operation
Support for YUV image data output via multiple interfaces including CVBS, UVC and MIPI
UART (TTL 3.3V) universal serial port for control and communication
Analog signal output;
automatic, manual and background correction
Anti-sunburn for thermal imaging detector
Low power consumption for long-term operation
Support for YUV image data output via multiple interfaces including CVBS, UVC and MIPI
UART (TTL 3.3V) universal serial port for control and communication
Technical Specifications
| Thermal Imaging | |
| Sensor Type | VOX |
| Resolution | 640 × 512 |
| Pixel Size | 12μm |
| Response Spectrum | 8~14 μm |
| NETD | ≤40 mK(@25 °C,F#1.0) |
| MRAD | 1.2 |
| Focal Length | 9.1mm |
| Field of View (FOV) | 45.8°(H) ×37.3°(V) ，56.8°(D) |
| Minimum Focus Distance | 2m |
| Maximum Aperture Value | F1.0 |
| Frame Rate | 25Hz/50Hz |
| Image Display | |
| Brightness Adjustment | Manual & Automatic |
| Contrast Adjustment | Supported |
| Pseudo color | Support for multiple modes including white hot, black hot, iron red, rainbow, etc. |
| NUC Correction | Manual correction, automatic correction on startup |
| Flip Function | Vertical/Horizontal/Diagonal |
| Image Detail Enhancement | Supported |
| System Functions | |
| Digital Interface | Mipi, UVC (optional) |
| Analog Video | 1-channel PAL |
| Control Interface | UART (TTL 3.3V) |
| Hardware Interface | 53398-0571 / 0420H08P |
| System Parameters | |
| Storage Temperature | -45 °C ~ +80 °C |
| Operating Temperature | -40 °C ~ +60 °C |
| Storage Humidity | < 90% RH |
| Weight | 26.3g ±0.5g (including lens) |
| Dimensions | 21mm × 21mm × 37 mm |
| Power Consumption | ≤0.75 W |
| Power Input | DC 4.5 V - 16 V |
| Vibration | 6.06g, random vibration, all axial directions |
| Shock | 50g for 11ms, sine wave, 3 axes & 6 directions |

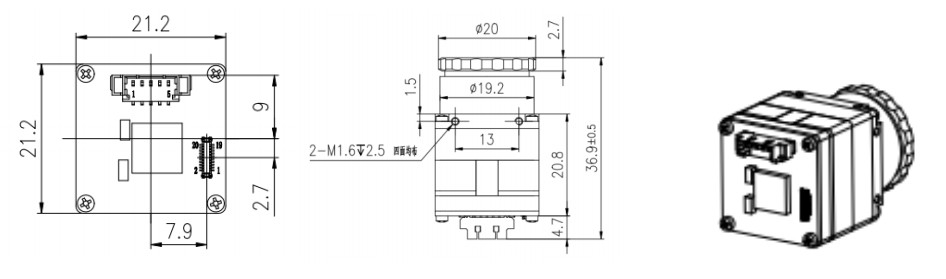

Size-standard version

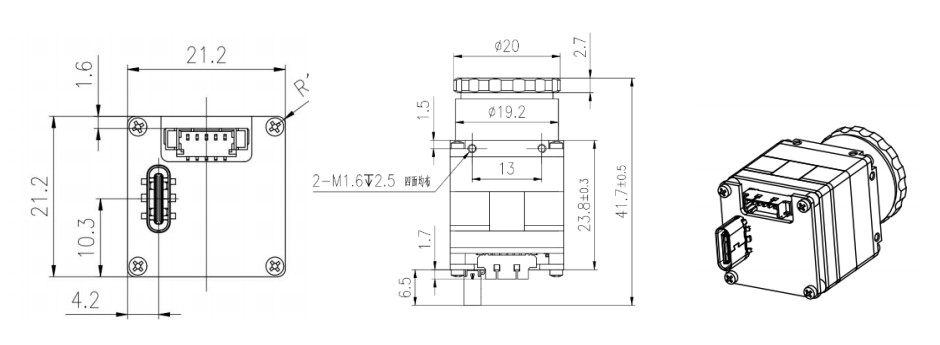

Size-USB version
