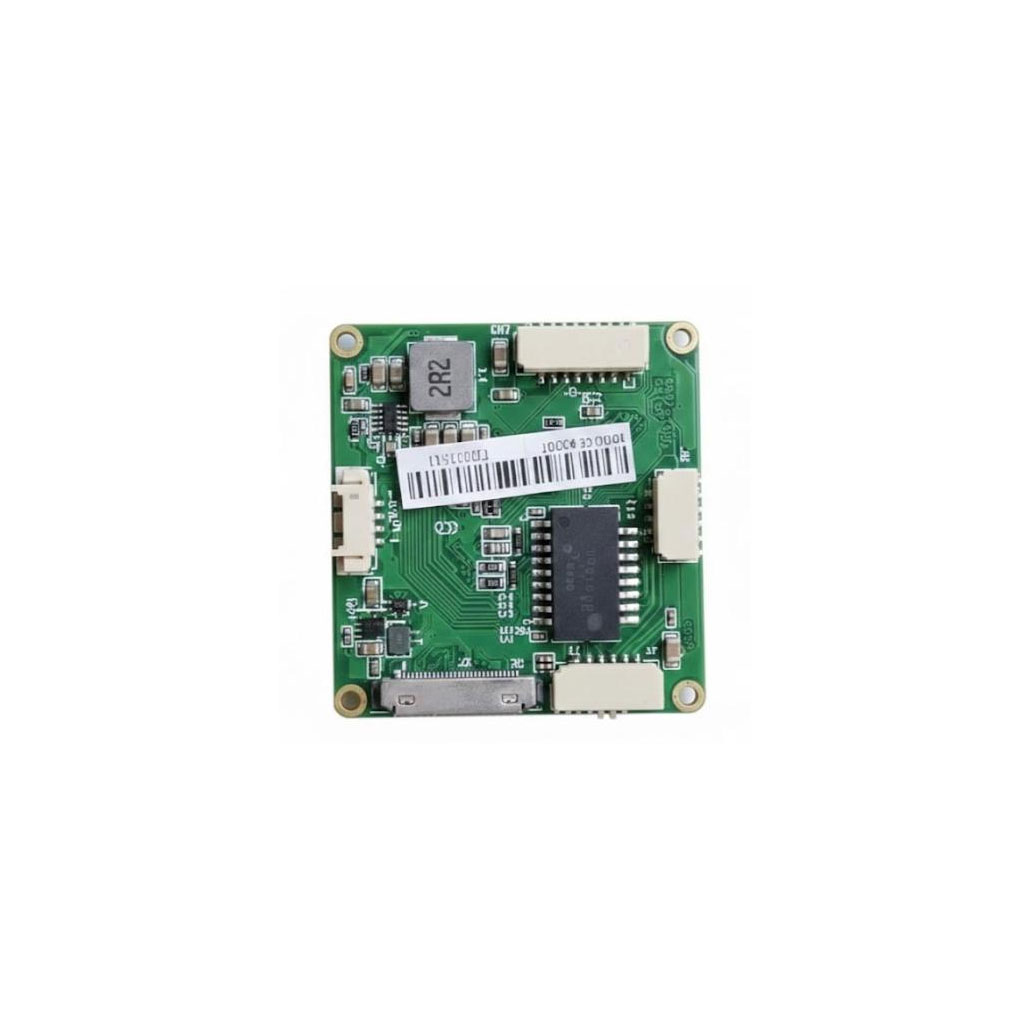

FPV Drone AI Vision Tracking Module
STA-AI395 AI module natively supports CVBS video input and is equipped with self-developed AI image enhancement algorithms, enabling full-range quality optimization for incoming CVBS analog video signals. It delivers super-resolution detail enhancement and defogging enhancement, and generates glare-free full-color images even in dim or low-light environments. This effectively eliminates common night imaging flaws such as grayish tones, dimness and excessive noise, delivering crystal-clear full-color footage at night. Additionally, the module supports CVBS analog video output, features strong anti-interference capability, and ensures exceptional transmission stability, performance and reliability to adapt to various complex scenarios.
Send Inquiry
Product Description
Intelligent Target Recognition & AI FPV Drone Application
Built with a high-performance processor, the module features intelligent target detection and recognition to accurately lock and distinguish between human and vehicle targets. When integrated into an AI FPV drone, it empowers the drone with core capabilities ofprecise target tracking and target strike, greatly enhancing the drone’s autonomous operation and practical combat performance while expanding the application boundaries of FPV drones.
Technical Specifications
| Item | Specification |
| Product Model | STA-AI395 |
| Main Control Performance | Dual-core ARM Cortex A55 @ 1000 MHz |
| AI ISP | AI ISP ultra-sensitive noise reduction technology supported |
| Computing Power | 2.5 TOPS |
| DDR4 Capacity | 1 GB |
| EMMC Capacity | 4 GB |
| Video Input | CVBS analog video input |
| Video Output | CVBS analog signal output |
| Network Interface | 1 × RJ45 |
| Storage Interface | 1 × TF card slot (optional) |
| Communication Serial Port | 2 × TTL |
| Supply Voltage | DC 12 V |
| Image Algorithms | Super-resolution, defogging, night vision enhancement, 6-axis electronic image stabilization (optional) |
| Object Detection | Human, motor vehicle, non-motor vehicle |
| Object Tracking | Select and detect targets, then track the targets |
| Target Attack Mode | Drone-supported (optional): GPS strike / non-GPS strike |
| Board Size | 32 mm × 32 mm |
| Board Weight | 8 g |
