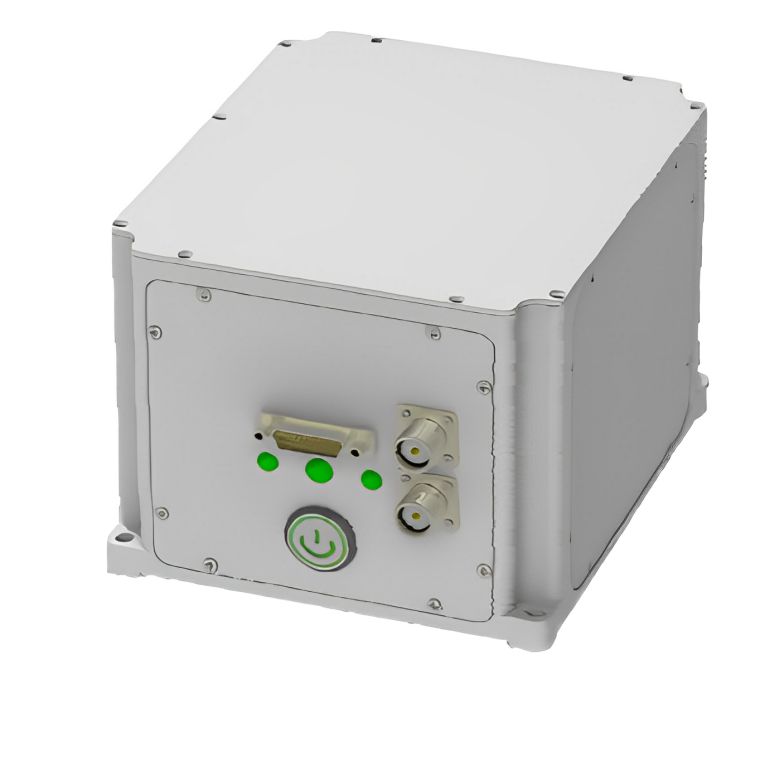

Fiber Optic Gyroscope Strapdown Inertial Navigation System
JIO-FOGD70A Fiber Optic Gyroscope Strapdown Inertial Navigation System is a cost-effective inertial navigation measurement product used to measure the position, velocity, attitude, angular rate and acceleration of the carrier. The device is developed by means of cost-effective fiber optic gyro and quartz accelerometer. The high precision error calibration and compensation of the system guarantee its high performance. The equipment is designed according to military standards, taking full account of electromagnetic shielding, thermal balance, sealing and other performance to ensure excellent environmental performance.
Model:JIO-FOGD70A
Send Inquiry
Product Description
JIOPTICS installation of fiber optic gyroscope to provide ease of integration flexibility, and our developers toolkit to rapid prototyping, not only meet the specification requirements, also provide high-quality performance meet the demand of end users.
Our services
JIOPTICS is a professional and efficient team. Provide OEM/ODM services for you, contact us to customize your exclusive fiber optical gyroscope
Product Features
Cost-effective fiber optic gyro and quartz accelerometer
Optional static or moving base self-alignment
Error parameters calibration and compensation in full
temperature range
Optional diverse input interfaces for GNSS/Odometer/DVL
Optional navigation modes
Excellent environmental suitability
Military standards
Optional static or moving base self-alignment
Error parameters calibration and compensation in full
temperature range
Optional diverse input interfaces for GNSS/Odometer/DVL
Optional navigation modes
Excellent environmental suitability
Military standards
Applications
Navigation and control for land vehicle
Antenna stabilization and control
UAV navigation
Attitude and heading reference
Antenna stabilization and control
UAV navigation
Attitude and heading reference
Fiber Optic Gyroscope Strapdown Inertial Navigation System Specification
| Performances | Start‐Up Time | 5min |
| Attitude Accuracy | 0.05deg, 1σ | |
| Heading Accuracy | 0.5×sec(Lat) deg, 1σ | |
| Input Ranges | Angular Rate | ±400deg/s |
| Acceleration | ±20g | |
| Work Environment | Work Temperature | ‐10℃~+55℃ |
| Storage Temperature | 55℃~+85℃ | |
| Vibration | 0.04g2 /hz @ 20~2000hz | |
| Shock work / no damage | 30g @ 6ms/50g @ 11ms | |
| Electrical Characteristics | Work Voltage | 28VDC |
| Consumption | ≤20W | |
| Communication | RS422/RS232/CAN/Ethernet | |
| Physical Characteristics | Size（W x D x H） | 140 x 100 x 82 mm |
| Weight | ≤2.5kg |
