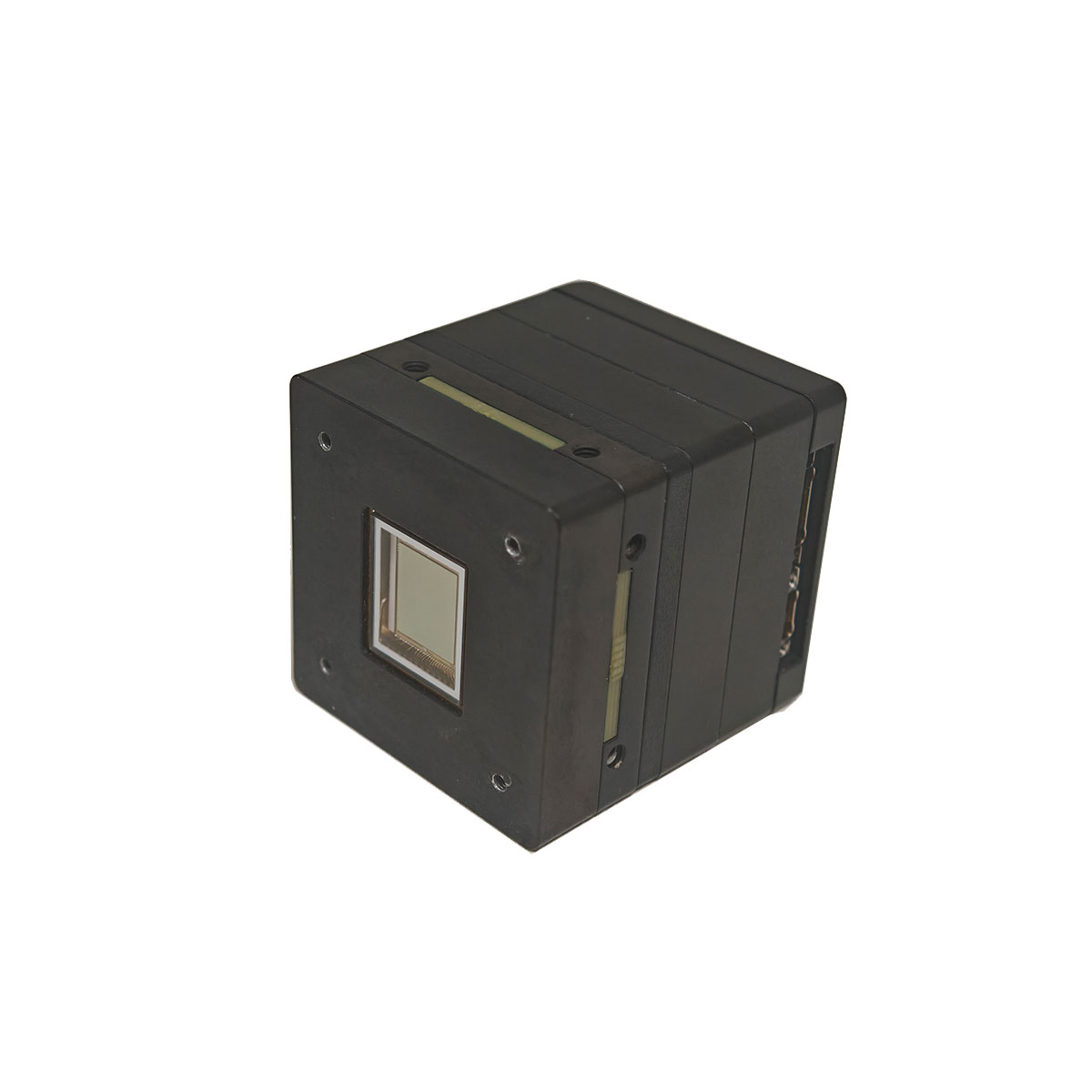

Mini 640×512 SWIR InGaAs Cameras
STA-G640SW-IGA Mini type of Infrared Imaging Module is based on the 640×512 SW Infrared Detector and compatible with most similar types of IR detectors. It can transform the infrared radiation into visualized image. Rich functionalities and interfaces, compact size and low power consumption make it easy to use for the system integration and secondary development. It is utilized in various applications on the security & surveillance, border patrol, UAV load and R&D.
Send Inquiry
Product Description
The main features and specifications are as below
| Model | STA-G640SW-IGA |
| Image Resolution | 640×512 |
| Pitch Size | 15um |
| Spectral Range | 0.8~1.7 µm |
| Dimensions | 40mm×40mm×43.1mm |
| Weight | ≤ 0.3Kg |
| Frame Rate of Image Output | 50 Hz (default) |
| Video Output Interfaces | Camera Link/SDI (digital), others can be customized |
| Image Output Type | 8-bit (default) or 14-bit electable |
| Power Consumption | ≤5W (steady-state) |
| Image Polarity | White Hot/ Black Hot/pseudo-color |
| Digital Detail Enhancement | |
| Image Contrast Enhancement | |
| Image Filtering and De-noising | |
| Image Integration | Auto/manual Modification on the integration time |
| Internal Sync or External Sync | |
| Single and Two-point NUC, the correction parameters can be fixed | |
| Auto/Manual Dead pixels replacement | |
| Provides test images, such as gray level gradient, stripe target and checkerboard | |
| Image rollover, mirroring, freeze and digital zooming | |
| Crosshair overlay/remove | |
| Operating Temperature | -40~+60℃ |
| Storage Temperature | -55~+70℃ |
| Humidity | 0%~80%RH |
| Interfaces and Power Supply | |
| Digital Video Output | CameraLink@8bit/CameraLink@14bit, SDI |
| SDI Video Output | 720P@50Hz,Effective display resolution 640×512. |
| Communication Interface | RS422 |
| External Sync | RS422 |
| Power Supply | 12V DC (nominal) |
Note: SWIR cameras can be customized. If parameters need to be adjusted, please contact the Jioptics team.
Features
Image Output Gating
Image Output Gating
The module provides the feature of online gating on the real-time IR image and test images. The analog and digital video interfaces are changed synchronously with the image output gating. This feature is also customizable.

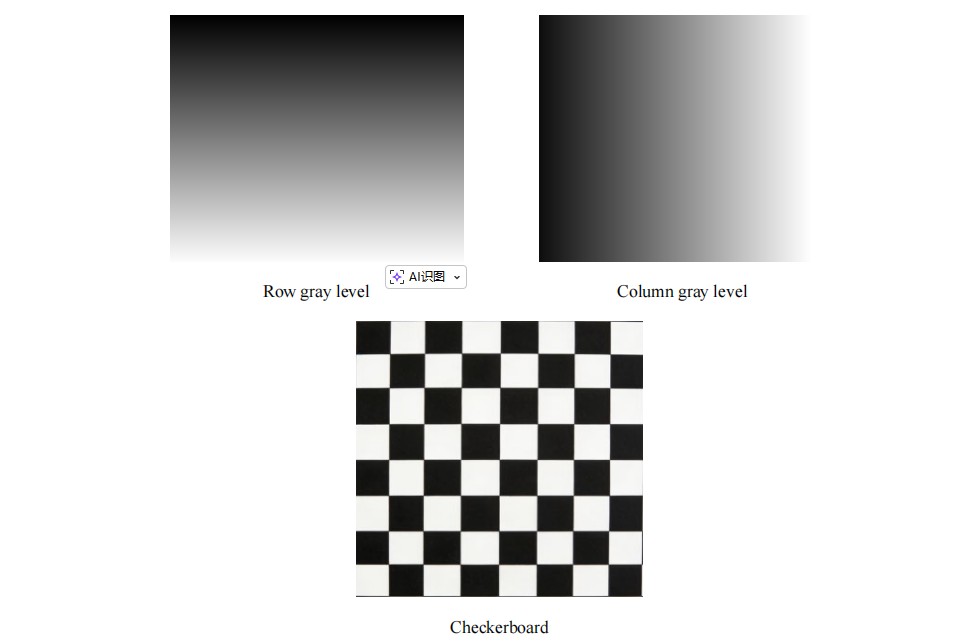

There are 7 types of test images, including row gray level and its dynamic map, column gray level and its dynamic map, row 5-square target and its dynamic map, column 5-square target and its dynamic map, and also checkerboard.
Electrical Interfaces
Connector Definition
Connector Definition
The connector definition and wiring instruction are as below,
1)type name:J63A-2F2-025-231-TH, matching connector: J63A-212-025-161-JC1. The definition as below,
1)type name:J63A-2F2-025-231-TH, matching connector: J63A-212-025-161-JC1. The definition as below,
| Pin | Signal | Precautions | Remark |
| 1 | GND |
|
GND |
| 13 | GND | ||
| 25 | GND | ||
| 8 | CL_X3_P | Twisted Pair | Camera Link Channel 3 |
| 20 | CL_X3_N | ||
| 9 | CL_XCLK_P | Twisted Pair | Camera Link CLK |
| 21 | CL_ XCLK _N | ||
| 10 | CL_X2_P | Twisted Pair | Camera Link Channel 2 |
| 22 | CL_X2_N | ||
| 11 | CL_X1_P | Twisted Pair | Camera Link Channel 1 |
| 23 | CL_X1_N | ||
| 12 | CL_X0_P | Twisted Pair | Camera Link Channel 0 |
| 24 | CL_X0_N | ||
| 2 | NC | NC |
|
| 14 | NC | NC |
|
| 3 | NC | NC |
|
| 15 | NC | NC |
|
| 4 | NC | NC |
|
| 16 | NC | NC |
|
| 5 | NC | NC |
|
| 17 | NC | NC |
|
| 6 | NC | NC |
|
| 18 | NC | NC |
|
| 7 | NC | NC |
|
| 19 | NC | NC |
|
2) type name: J63A-2F2-015-231-TH, matching connector: J63A-212-015-161-JC1. The definition as below,
| Pin | Signal | Precautions | Remark |
| 1 | PGND | Twisted Pair | PGND |
| 2 | PGND | ||
| 4 | POWER_ 12V | POWER+ | |
| 11 | POWER_ 12V | ||
| 9 | Reserve -PGND | Twisted Pair | Reserve |
| 10 | Reserve -POWER_ 12V | ||
| 3 | Esync_422Output+ | Twisted Pair | External-sync,422 Output |
| 12 | Esync_422Output- | ||
| 5 | Esync_422Input+ | Twisted Pair | External-sync,422 Input |
| 14 | Esync_422Input- | ||
| 6 | RS422 TXD- | Twisted Pair | IR RS422 Output |
| 13 | RS422 TXD+ | ||
| 8 | RS422 RXD- | Twisted Pair | IR RS422 Input |
| 15 | RS422 RXD+ | ||
| 7 | GND | NC |
|
3)SDI connector: PP5, Type name: MMCX_KWHD. The definition as below,
| Pin | Signal | Remark |
| 1 | SDI | Signal |
| 2 、3 、4 、5 | AGND | GND |

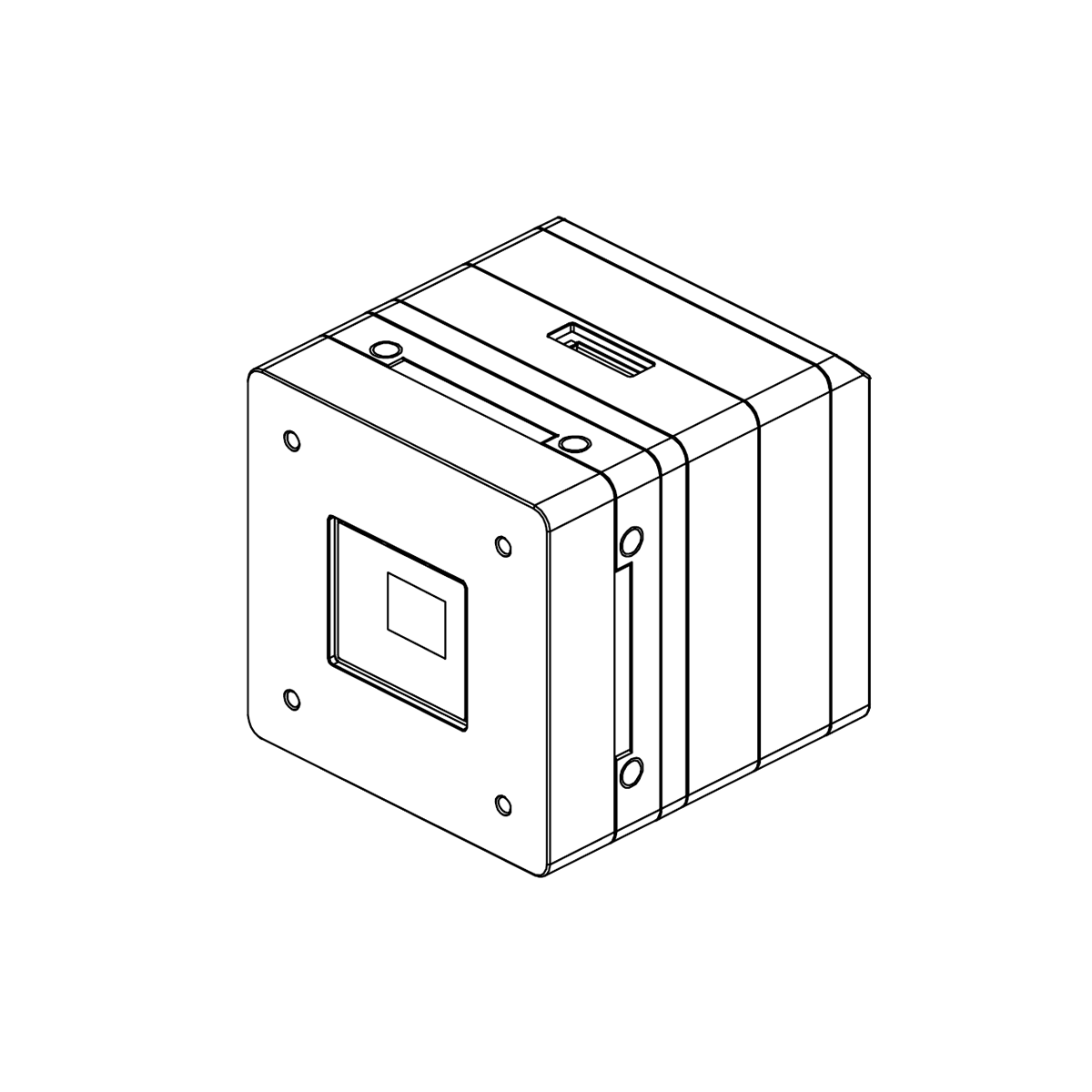

Dimensions
Camera Includes
| SW Infrared Detector | 1 each |
| External Port Board | 1 pc |
| DB Board | 1 pc |
| AD Board | 1 pc |
| Detector Interface Board | 1 pc |
| Internal Connection Cables | 1 set |
